Chapter 4: Routing Tab EdgeOS
™
User Guide
Ubiquiti Networks, Inc.

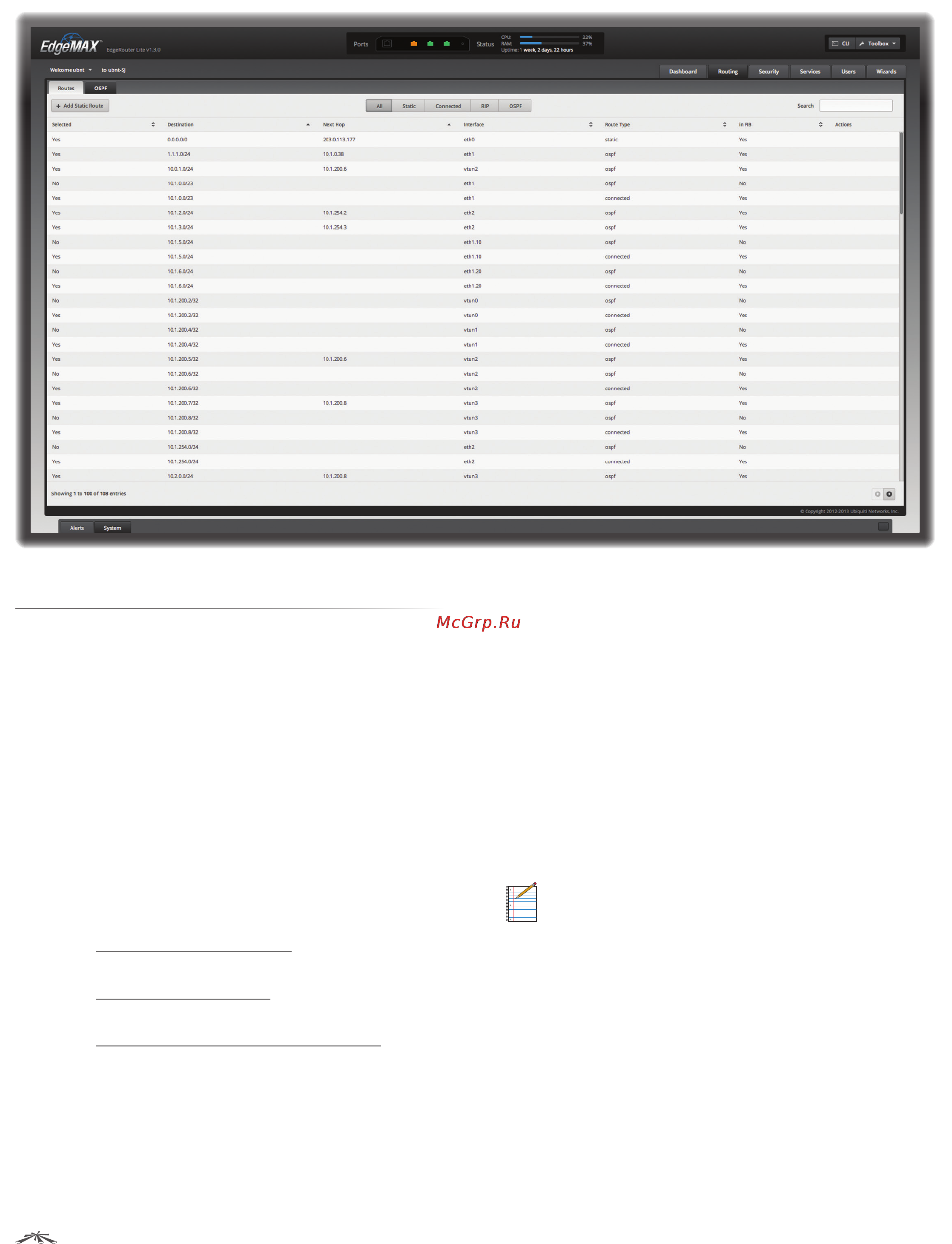

Chapter 4: Routing Tab
The Routing tab displays status information about a variety
of connected, static, RIP, and OSPF routes. You can also
configure static routes and OSPF options. Any setting
marked with a blue asterisk * is required.
You have two sub-tabs:
Routes View route information and create static routes.
OSPF Configure OSPF options.
IPv6 Routing
IPv6 (Internet Protocol version 6) is gaining popularity
and is bound to grow as IP addressing demands increase.
The EdgeOS Configuration Interface supports IPv6 for the
following options:
• System > Name Server configuration
(Refer to “Name Server” on page 5.)
• Dashboard > VLAN configuration
(Refer to “Add VLAN” on page 9.)
• Dashboard > Interface configuration
(Refer to “Configure the Interface” on page 10.)
For IPv6 addresses, the EdgeOS Configuration Interface
supports “::” (double-colon) notation, which substitutes
“::” for a contiguous sequence of 16-bit blocks set to zero.
Here is an example: 2001:db8::1
If written out, the IPv6 address becomes:
2001:db8:0000:0000:0000:0000:0000:0001
The EdgeOS Configuration Interface displays IPv6
addresses only in two locations:
• System > Name Server section
• Dashboard tab
The EdgeOS Configuration Interface will increase its
support of IPv6 in future releases. For other options, you
can use the CLI, which has comprehensive IPv6 support.
Note: Use the CLI to view IPv6 options configured
in the CLI but not supported by the EdgeOS
Configuration Interface.
