33
Chapter 6: Services Tab EdgeOS
™
User Guide
Ubiquiti Networks, Inc.

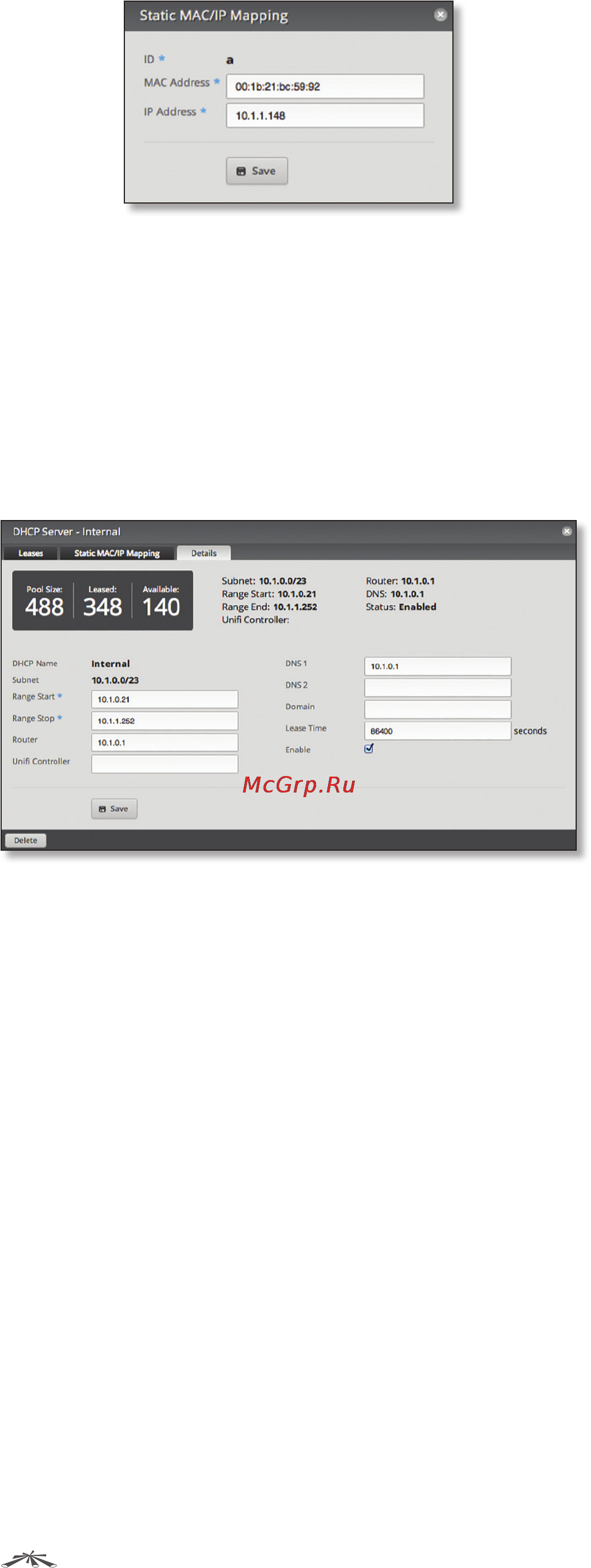

Configure Static MAC/IP Mapping
The Static MAC/IP Mapping screen appears.
Make changes as needed.
- ID The name of this mapping is displayed.
- MAC Address Enter the MAC address of the DHCP
client.
- IP Address Enter the IP address that should be
assigned.
Click Save to apply your changes.
Details
The top section displays the following status information:
• Pool Size The total number of IP addresses is displayed.
• Leased The number of used IP addresses is displayed.
• Available The number of available IP addresses is
displayed.
• Subnet The IP address and subnet mask of the DHCP
server are displayed in slash notation.
• Range Start The starting IP address of the range is
displayed.
• Range End The last IP address of the range is displayed.
• Router The default route of the DHCP clients is
displayed. The DHCP clients route all packets to this IP
address, which is the EdgeRouter’s own IP address in
most cases.
• DNS The IP address of the DNS server is displayed.
• Status The Enabled/Disabled status of the DHCP server
is displayed.
The rest of the Details tab displays the following:
• DHCP Name The name of the DHCP server is displayed.
• Subnet The IP address and subnet mask of the DHCP
server are displayed in slash notation.
Make changes as needed to the following options:
• Range Start Enter the starting IP address of the range.
• Range Stop Enter the last IP address of the range.
• Router Enter the default route of the DHCP clients. The
DHCP clients route all packets to this IP address, which is
the EdgeRouter’s own IP address in most cases.
• UniFi Controller Enter the IP address of the UniFi
Controller. The DHCP server will return the UniFi
Controller’s IP address to its DHCP clients, so if a client
is a UniFi AP, it will know how to contact the UniFi
Controller.
• DNS 1 Enter the IP address of the primary DNS server.
Your ISP may provide this information, or you can use
Google’s DNS server at 8.8.8.8.
• DNS 2 Enter the IP address of the secondary DNS server.
• Domain Enter the domain name for DHCP clients.
• Lease Time Enter the period of time (in seconds) that a
DHCP lease should last.
• Enable Check the box to enable this DHCP server.
Click Save to apply your changes.
At the bottom of the screen, you can click Delete to
delete the DHCP server and its configuration.
