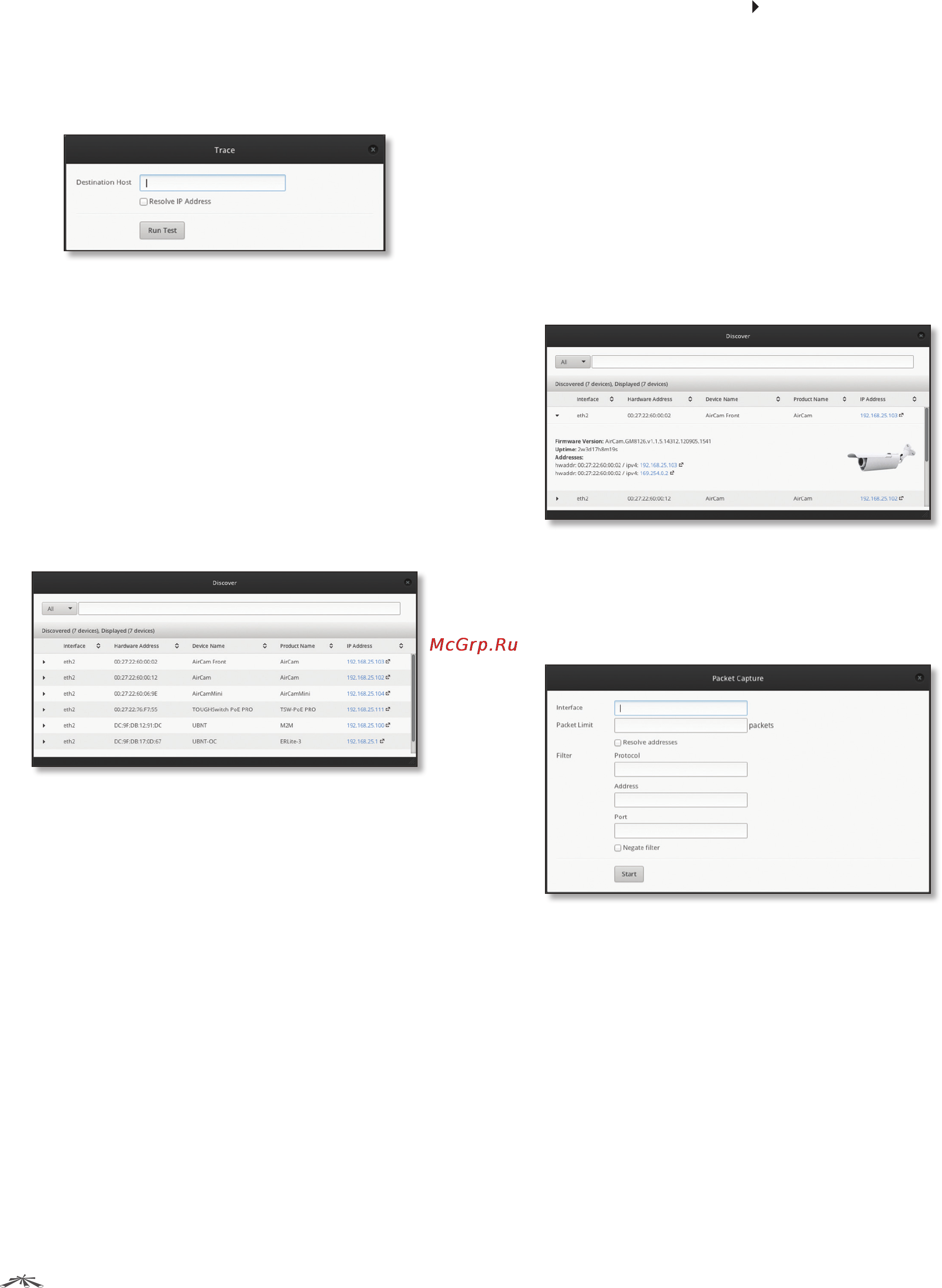

43
Chapter 9: ToolboxEdgeOS
™
User Guide
Ubiquiti Networks, Inc.
Trace
The Trace tool traces the hops from the EdgeRouter to a
specified outgoing IP address. Use this tool to find the
route taken by ICMP packets across the network to the
destination host.
Destination Host Enter the IP address of the destination
host.
Resolve IP Address Select this option to resolve the IP
addresses symbolically (as names) instead of numerically.
Run Test Click this button to start the test.
Responses are displayed after the test is completed.
Discover
The Discover tool searches for all Ubiquiti devices on your
network. The Search field automatically filters devices
containing specified names or numbers as you enter
them.
All/eth_ Select which interface to search, or select All.
The tool reports the number of Discovered and Displayed
Ubiquiti devices. A table displays the following
information about each Ubiquiti device. Click a column
heading to sort by that heading.
Interface The EdgeRouter interface used by the device is
displayed.
Hardware Address The MAC address of the device is
displayed.
Device Name The name assigned to the device is
displayed.
Product Name The Ubiquiti name of the device is
displayed.
IP Address The IP address of the device is displayed. You
can click it to access the device’s configuration through its
web management interface.
For more information, click the
arrow to view the
following:
• Firmware Version The version number of the device’s
firmware is displayed.
• Uptime The duration of the device’s activity is
displayed.
• Addresses The addresses of the device’s interface are
displayed. If the device has more than one interface,
addresses for each interface are displayed.
- hwaddr The MAC address of the device’s interface is
displayed.
- ipv4 The IP address of the device’s interface is
displayed.
Packet Capture
Capture packets traveling through the specified interface
for analysis. You can set up filters to capture the specific
types of packets you are seeking.
Interface Enter the name of the interface.
Packet Limit Enter the number of packets to capture. The
maximum number is 300.
Resolve addresses Select this option to resolve the IP
addresses symbolically (as names) instead of numerically.
Filter
• Protocol Enter the protocol to filter.
• Address Enter the address to filter.
• Port Enter the port number to filter.
• Negate filter Check this box to capture all packets
except for the ones matching the selected filter(s).
