46
Appendix A: Command Line InterfaceEdgeOS
™
User Guide
Ubiquiti Networks, Inc.

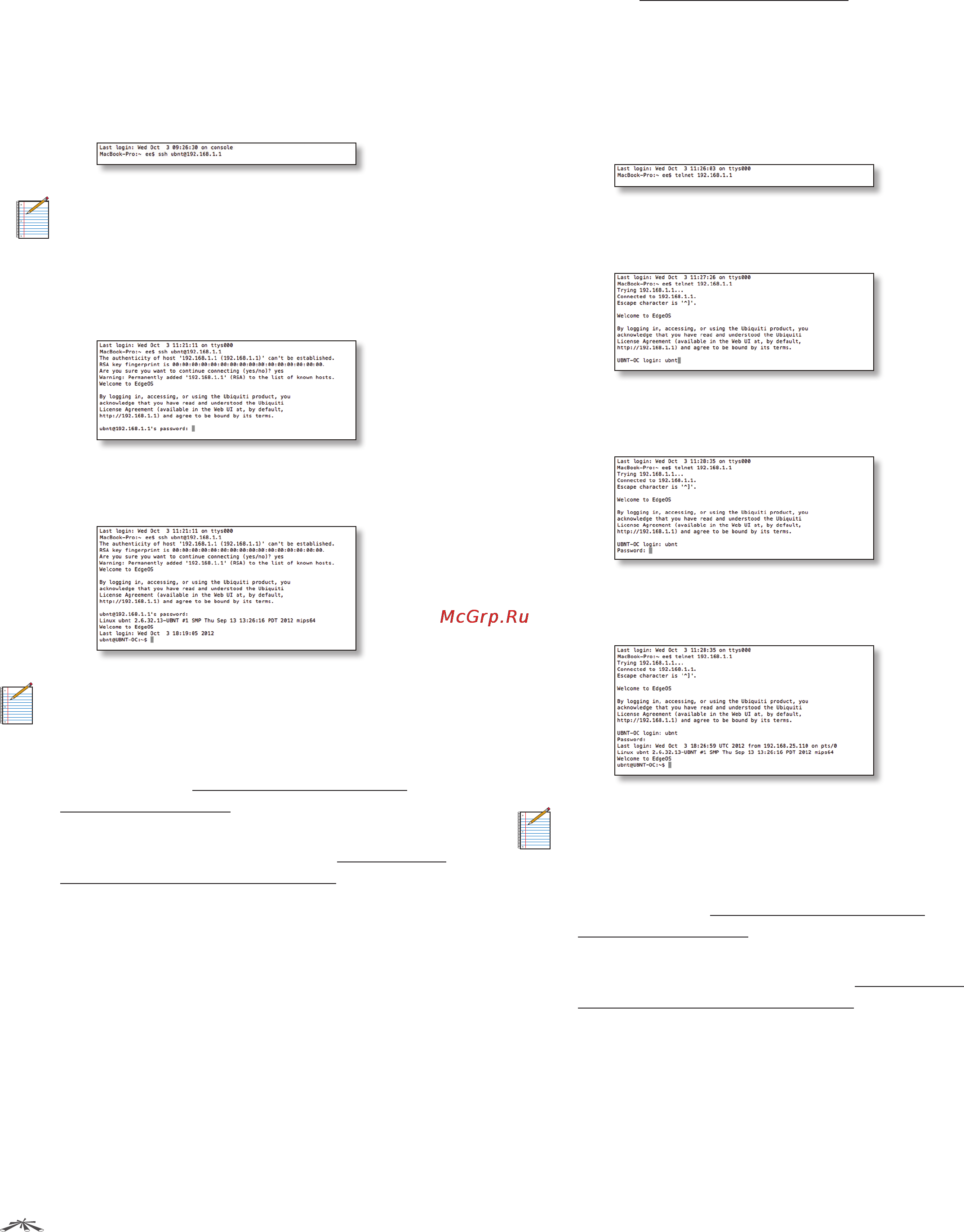

Access Using SSH
SSH is enabled by default.
1. Open the SSH client on your computer.
2. At the login prompt, enter:
ssh <username>@<hostname>
The defaults are ubnt for the username and 192.168.1.1
for the hostname. You can also enter a domain name
instead of an IP address for the hostname.
Note: Upon initial login, a host key will be
displayed. You will be asked to confirm that you
want to save the host key to the local database.
Click Yes to bypass this message in the future.
3. At the Password prompt, enter the password (the
default is ubnt).
4. For help with commands, you can either press the ? key
or enter show and press the ? key.
Note: To enhance security, we recommend that you
change the default login using at least one of the
following options:
• Set up a new user account (preferred option).
For details, go to “Remove the Default User
Account” on page 49.
• Change the default password of the ubnt login.
Use the set command as detailed in “Remove the
Default User Account” on page 49.
Access Using Telnet
Telnet is disabled by default. To use Telnet, enable it on the
System tab (see “Telnet Server” on page 6).
1. Open the telnet client on your computer.
2. At the prompt, enter:
telnet <hostname>
The default is 192.168.1.1 for the hostname. You can
also enter a domain name instead of an IP address for
the hostname.
3. At the login prompt, enter the username (the default is
ubnt).
4. At the Password prompt, enter the password (the
default is ubnt).
5. For help with commands, you can either press the ? key
or enter show and press the ? key.
Note: To enhance security, we recommend that you
change the default login using at least one of the
following options:
• Set up a new user account (preferred option).
For details, go to “Remove the Default User
Account” on page 49.
• Change the default password of the ubnt login.
Use the set command as detailed in “Remove the
Default User Account” on page 49.
