Chapter 8: Wizards Tab EdgeOS
™
User Guide
Ubiquiti Networks, Inc.
Chapter 8: Wizards Tab
The Wizards tab allows you to access any available wizards:
• Setup Wizards
• WAN+2LAN (see the next column)
• Feature Wizards
• “Port Forwarding” on page 40
• “TCP MSS Clamping” on page 41
• “UPnP” on page 41
Setup Wizards
The WAN+2LAN setup wizard will guide you through a
typical Small Office Home Office (SOHO) deployment:
• Configures the Internet connection and NAT
masquerade for the Internet port
• Enables default firewall settings for the Internet port
• Enables DHCP server functionality for local networks
• Automatically enables DNS (Domain Name System)
forwarding for local networks
• Automatically enables TCP MSS (Maximum Segment
Size) clamping for a PPPoE (Point‑to‑Point over Ethernet)
connection
If the EdgeRouter is already configured, then the
WAN+2LAN setup wizard is not available. It is available only
if the EdgeRouter uses its default configuration.
You can reset the EdgeRouter to its factory defaults using
the EdgeOS Configuration Interface:
System Tab Refer to “Reset Config to Default” on page
7 for instructions.

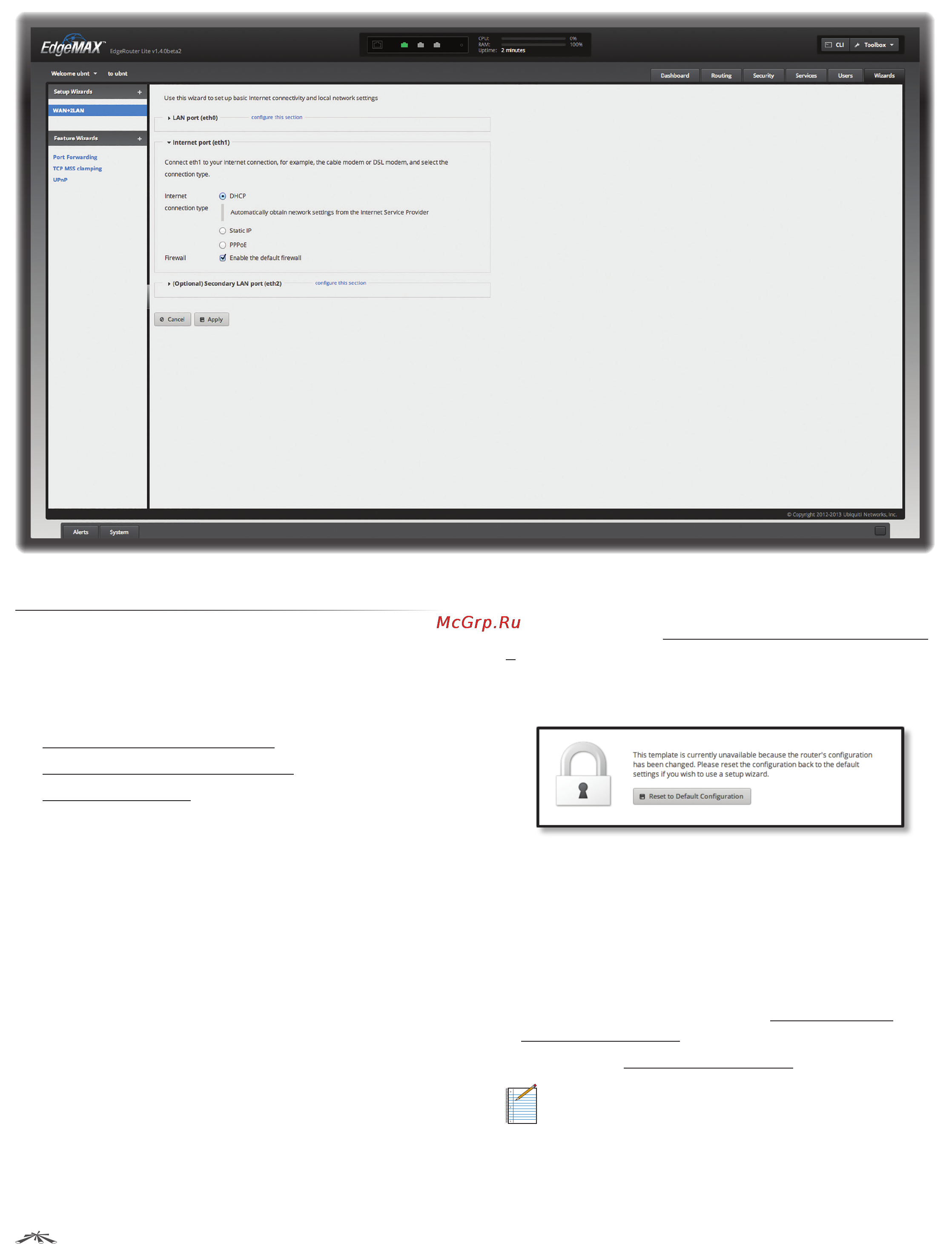

Wizards Tab Click the WAN+2LAN setup wizard in the
column on the left. The following window will appear.
Click Reset to Default Configuration and then follow the
on‑screen instructions.
WAN+2LAN
Click the WAN+2LAN setup wizard to begin the SOHO
configuration.
Go to the section for your EdgeRouter model:
• ERLite-3, ER-8, and ERPro-8 See “ERLite-3, ER-8,
ERPro-8” on page 38.
• ERPoe-5 See “ERPoe-5” on page 39.
Note: The WAN+2LAN setup wizard is designed to
set up a basic SOHO network. For full configuration
functionality, use the other tabs of the EdgeOS
Configuration Interface or the Command Line
Interface (CLI).
