Chapter 1: OverviewEdgeOS
™
User Guide
Ubiquiti Networks, Inc.

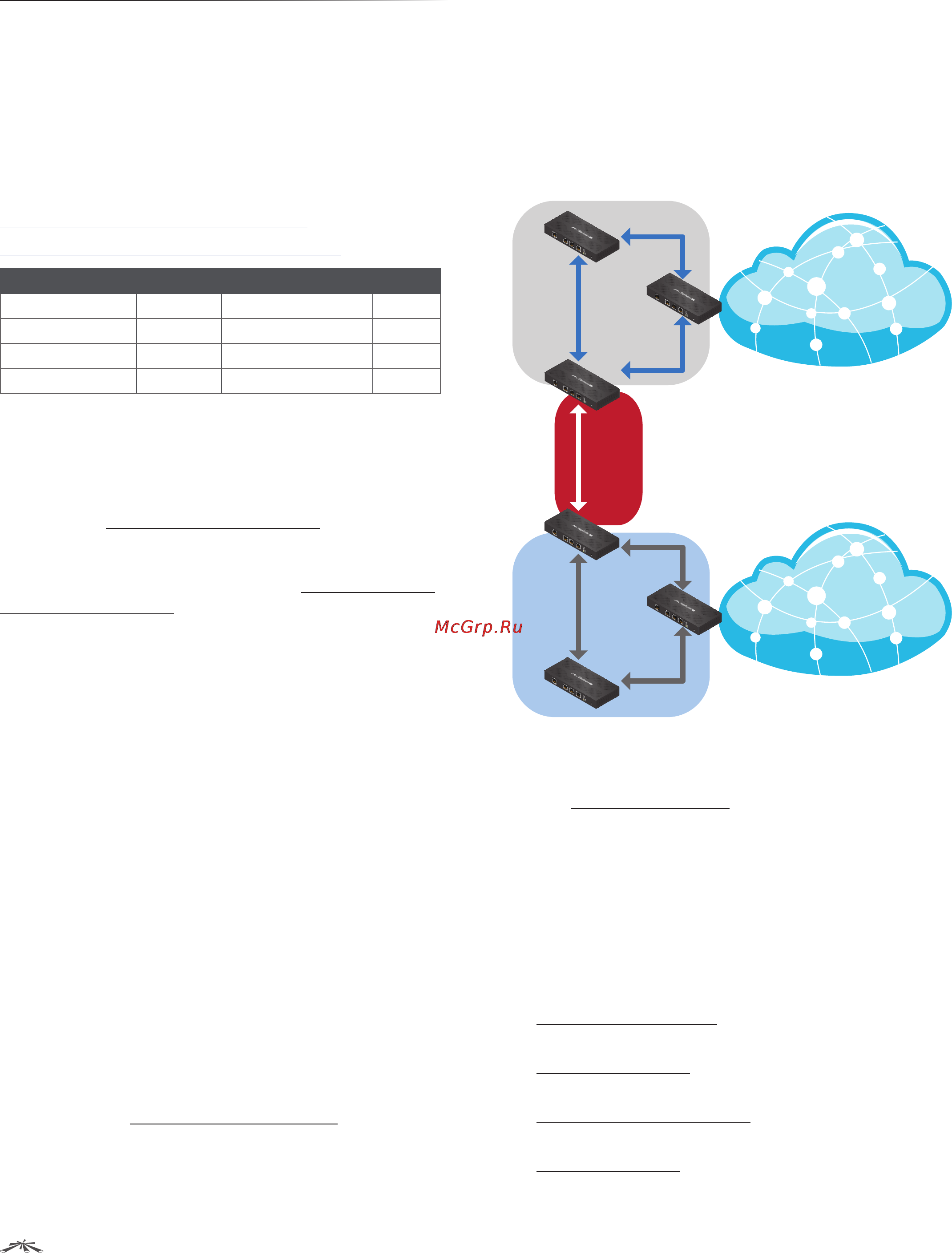

Service Provider Deployment
This scenario uses six EdgeRouter devices:
1. OSPF Area 0 to OSPF Area 1
2. OSPF Area 0 to OSPF Area 2
3. OSPF Area 1
4. OSPF Area 1 to Internet
5. OSPF Area 2
6. OSPF Area 2 to Internet
eth0 eth1 eth2
eth0 eth1 eth2
eth0 eth1 eth2
eth0 eth1 eth2
eth0 eth1 eth2
eth0 eth1 eth2
eth0 eth1 eth2
Site-to-Site
Link
OSPF
Area 0
OSPF
Area 1
OSPF
Area 2
Internet
Internet
Site A
Site B
Here are the typical steps to follow:
1. Configure the appropriate settings on the System tab
(see “System” on page 4 for more information):
• Host Name
• Time Zone
• Gateway
• Name Server
• Domain Name
• NTP
2. Configure the interfaces on the Dashboard tab; see
“Interfaces” on page 9 for more information.
3. Configure OSPF settings on the Routing > OSPF tab; see
“OSPF” on page 17 for more information.
4. Configure DHCP server(s) on the Services tab; see
”DHCP Server” on page 30 for more information.
5. Configure NAT rules on the Security > NAT tab; see
”NAT” on page 24 for more information.
Chapter 1: Overview
Introduction
EdgeOS
™
is a powerful, sophisticated operating system
from Ubiquiti Networks
™.
. It allows you to manage your
EdgeRouter and networks. This User Guide is designed for
use with version 1.3 or above of the EdgeOS Configuration
Interface and all of the EdgeRouter models, which this
User Guide will collectively refer to as EdgeRouter.
Additional information is available on our website at:
http://community.ubnt.com/edgemax
http://documentation.ubnt.com/edgemax
Product Name Model Number of Ports PoE
EdgeRouter Lite ERLite-3 3
EdgeRouter PoE ERPoe-5 5
✓
8-Port EdgeRouter ER-8 8
EdgeRouter PRO ERPro-8 8*
* Two ports are either RJ45 or SFP.
Configuration
The intuitive EdgeOS Configuration Interface allows you
to conveniently manage your EdgeRouter using your web
browser. (See “Using EdgeOS” on page 3 for more
information.) If you need to configure advanced features
or prefer configuration by command line, you can use
the Command Line Interface (CLI). (See “Command Line
Interface” on page 45 for more information.)
Configuration Interface System
Requirements
• Microsoft Windows 7, Windows 8, Linux, or Mac OS X
• Web Browser: Google Chrome, Mozilla Firefox, or
Microsoft Internet Explorer 8 (or above)
Hardware Overview and Installation
The Quick Start Guide that accompanied your EdgeRouter
includes a hardware description and instructions for
hardware installation.
Typical Deployment Scenarios
While there are numerous scenarios that are possible, this
section highlights three typical deployments:
• Small Office/Home Office (SOHO) Deployment
• Service Provider Deployment
• Corporate Deployment
SOHO Deployment
Click the Wizards tab and follow the on-screen
instructions. See “Wizards Tab” on page 37 for more
information.
