Ubiquiti EdgeRouter [45/57] Chapter 9 toolbox
![Ubiquiti EdgeRouter [45/57] Chapter 9 toolbox](/views2/1072902/page45/bg2d.png)
42
Chapter 9: ToolboxEdgeOS
™
User Guide
Ubiquiti Networks, Inc.

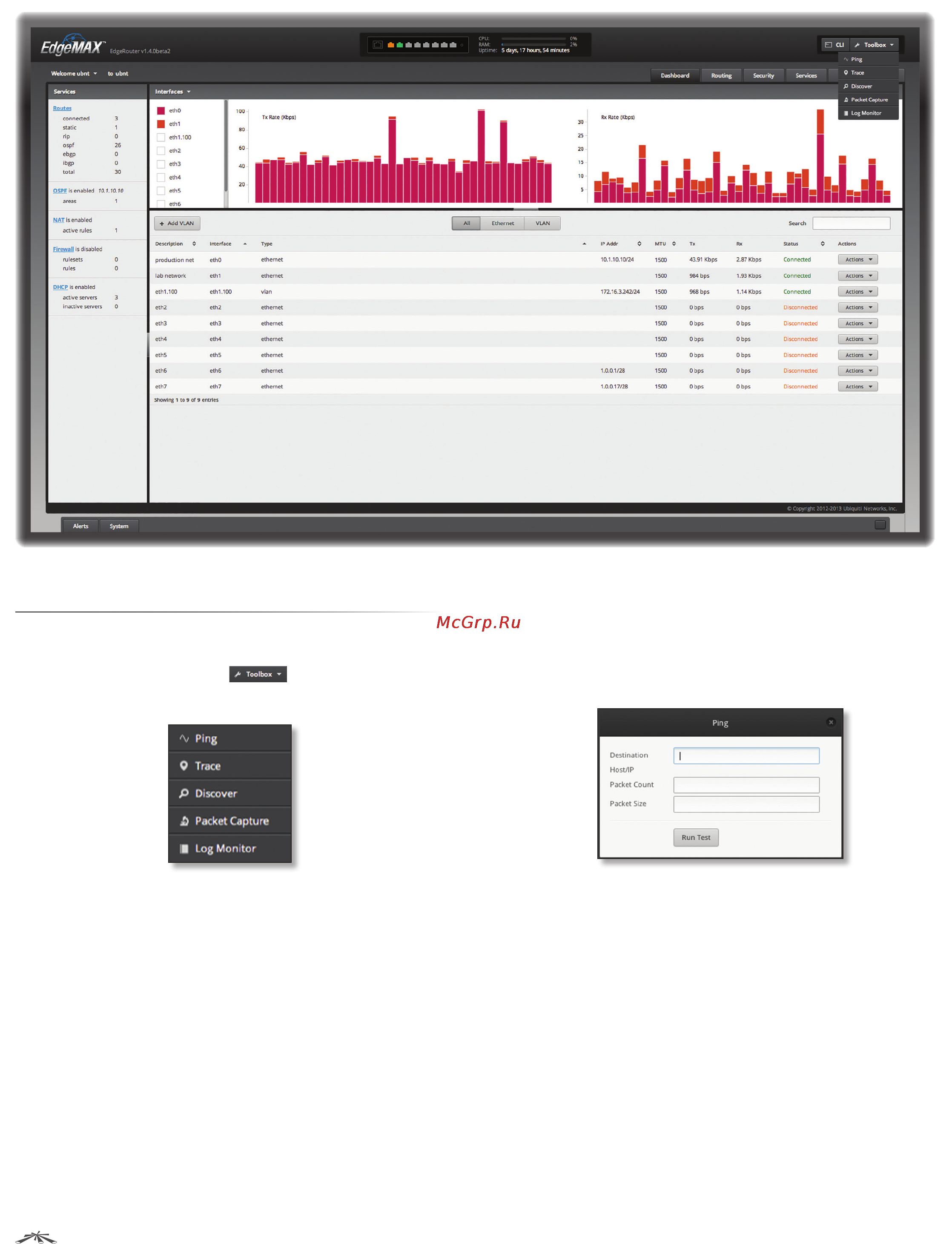

Chapter 9: Toolbox
Each tab of the EdgeOS interface contains network
administration and monitoring tools. At the top right of
the screen, click the Toolbox button. The Toolbox
drop-down menu appears.
The following tools are available:
• Ping
• Trace
• Discover
• Packet Capture
• Log Monitor
Ping
You can ping other devices on the network directly from
the EdgeRouter. The Ping tool uses ICMP packets to check
the preliminary link quality and packet latency estimation
between two network devices.
Destination Host/IP Enter the IP address.
Packet Count Enter the number of packets to send for
the ping test.
Packet Size Specify the size of the packet.
Run Test Click this button to start the test.
Packet loss statistics and latency time evaluation are
displayed after the test is completed.
