32
Chapter 6: Services Tab EdgeOS
™
User Guide
Ubiquiti Networks, Inc.
A table displays the following information about each
DHCP client. Click a column heading to sort by that
heading.
• IP Address The IP address assigned to the DHCP client
is displayed.
• Hardware Address The MAC address of the DHCP
client is displayed.
• Lease Expiration The date and time when the DHCP
lease will expire is displayed.
• Pool The name of the DHCP server is displayed.
• Hostname The name used to identify the DHCP client is
displayed.
At the bottom of the screen, you can click Delete to
delete the DHCP server and its configuration.

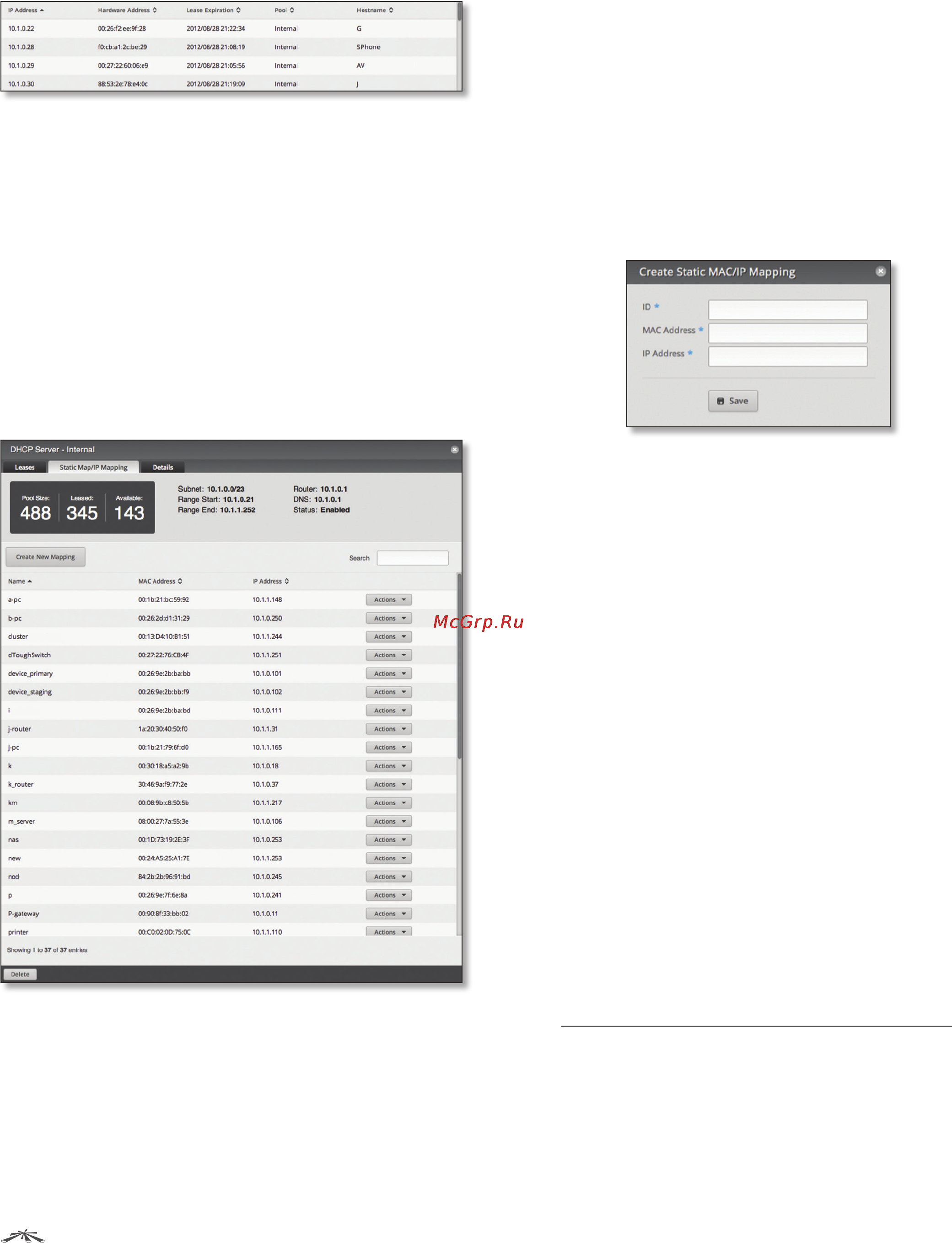

Static MAC/IP Mapping
The top section displays the following status information:
• Pool Size The total number of IP addresses is displayed.
• Leased The number of used IP addresses is displayed.
• Available The number of available IP addresses is
displayed.
• Subnet The IP address and subnet mask of the DHCP
server are displayed in slash notation.
• Range Start The starting IP address of the range is
displayed.
• Range End The last IP address of the range is displayed.
• Router The default route of the DHCP clients is
displayed. The DHCP clients route all packets to this IP
address, which is the EdgeRouter’s own IP address in
most cases.
• DNS The IP address of the DNS server is displayed.
• Status The Enabled/Disabled status of the DHCP server
is displayed.
• Create New Mapping To map a static IP address to a
specific MAC address, click Create New Mapping.
The Create Static MAC/IP Mapping appears.
Complete the following:
- ID Enter a name for this mapping.
- MAC Address Enter the MAC address of the DHCP
client.
- IP Address Enter the IP address that should be
assigned.
Click Save to apply your changes.
• Search Allows you to search for specific text. Begin
typing; there is no need to press enter. The results are
filtered in real time as soon as you type two or more
characters.
A table displays the following information about each
static MAC/IP mapping. Click a column heading to sort by
that heading.
• Name The name of the mapping is displayed.
• MAC Address The MAC address of the DHCP client is
displayed.
• IP Address The IP address assigned to the
corresponding MAC address is displayed.
• Actions Click the Actions button to access the
following options:
- Config To configure the mapping, click Config. Go to
“Configure Static MAC/IP Mapping” on page 33.
- Delete Remove the selected mapping.
At the bottom of the screen, you can click Delete to
delete the DHCP server and its configuration.
