28
Chapter 5: Security TabEdgeOS
™
User Guide
Ubiquiti Networks, Inc.
• Src Address Group or Interface Addr. Select the
appropriate address group or interface address. If you
select Other as the interface address, then enter the
interface name in the field provided. The NAT rule will
match the IP address of the selected interface.
• Src Network Group Select the appropriate network
group.
• Src Port Group Select the appropriate port group.
• Dest. Address Enter the IP address or network address
of the destination. You can also enter a range of IP
addresses; one of them will be used.
Note: If you enter a network address, enter the IP
address and subnet mask using slash notation:
<network_IP_address>/<subnet_mask_number>
(example: 192.0.2.0/24).
• Dest. Port Enter the port name or number of the
destination. You can also enter a range of port numbers;
one of them will be used.
• Dest Address Group or Interface Addr. Select the
appropriate address group or interface address. If you
select Other as the interface address, then enter the
interface name in the field provided. The NAT rule will
match the IP address of the selected interface.
• Dest Network Group Select the appropriate network
group.
• Dest Port Group Select the appropriate port group.
Click Save to apply your changes, or click Cancel.

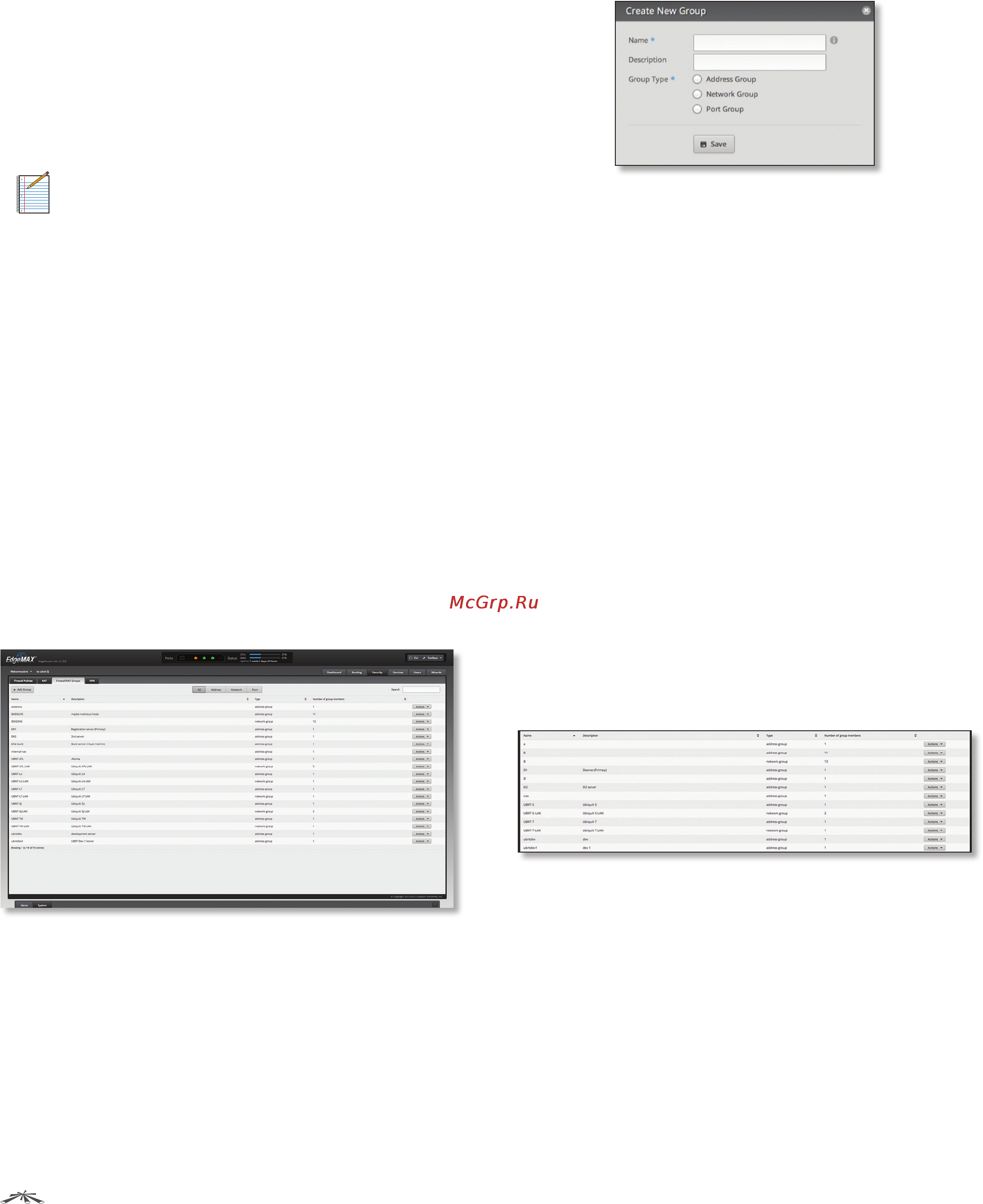

Firewall/NAT Groups
Create groups organized by IP address, network address,
or port number.
All/Address/Network/Port
Add Group To create a new group, click Add Group.
The Create New Group screen appears.
Complete the following:
• Name Enter a name for this group.
• Description Enter keywords to describe this group.
• Group Type Select the appropriate option:
- Address Group Define a group by IP address.
- Network Group Define a group by network address.
- Port Group Define a group by port numbers.
Click Save to apply your changes.
Search Allows you to search for specific text. Begin
typing; there is no need to press enter. The results are
filtered in real time as soon as you type two or more
characters.
All/Address/Network/Port Click the appropriate tab to
filter the groups as needed.
• All All groups are displayed by default.
• Address All of the address groups are displayed.
• Network All of the network groups are displayed.
• Port All of the port groups are displayed.
A table displays the following information about each
group. Click a column heading to sort by that heading.
Name The name of the group is displayed.
Description The keywords you entered to describe the
group are displayed.
Type The type of group is displayed.
Number of group members The number of members is
displayed.
Actions Click the Actions button to access the following
options:
• Config To configure the group, click Config. Go to the
Configure the Firewall/NAT Group section below.
• Delete Remove the group.
