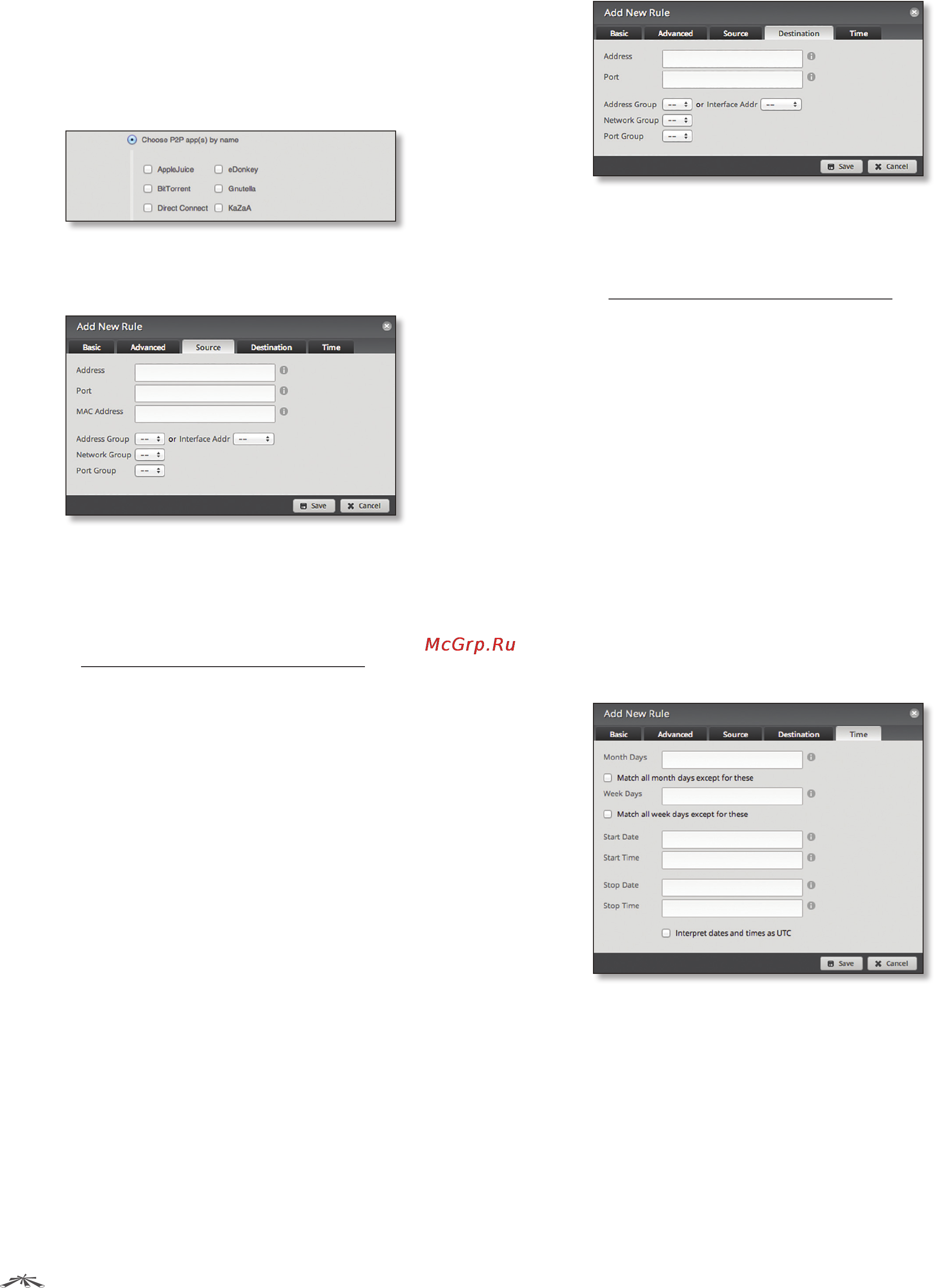

23
Chapter 5: Security TabEdgeOS
™
User Guide
Ubiquiti Networks, Inc.
• P2P Match P2P (Peer-to-Peer) applications.
- None Do not match P2P connections.
- All Match all P2P connections.
- Choose P2P app(s) by name Match packets of the
selected P2P application(s). Check the box of any P2P
application on this list to select it.
Click Save to apply your changes, or click Cancel.
Source
• Address Enter the IP address of the source.
• Port Enter the port number or range of the source.
• MAC Address Enter the MAC address of the source.
Firewall groups are created on the Firewall/NAT Groups
tab; see “Firewall/NAT Groups” on page 28 for
more information. Select the appropriate group(s);
you can specify up to two groups maximum in these
combinations:
• An address group and port group
• A network group and port group
The packets must match both groups to apply the rule.
• Address Group or Interface Addr. Select the
appropriate address group or interface address. If you
select Other as the interface address, then enter the
interface name in the field provided. The firewall rule
will match the IP address of the selected interface.
• Network Group Select the appropriate network group.
• Port Group Select the appropriate port group.
Click Save to apply your changes, or click Cancel.
Destination
• Address Enter the IP address of the destination.
• Port Enter the port number of the destination.
Firewall groups are created on the Firewall/NAT Groups
tab; see “Firewall/NAT Groups” on page 28 for
more information. Select the appropriate group(s);
you can specify up to two groups maximum in these
combinations:
• An address group and port group
• A network group and port group
The packets must match both groups to apply the rule.
• Address Group or Interface Addr. Select the
appropriate address group or interface address. If you
select Other as the interface address, then enter the
interface name in the field provided. The firewall rule
will match the IP address of the selected interface.
• Network Group Select the appropriate network group.
• Port Group Select the appropriate port group.
Click Save to apply your changes, or click Cancel.
Time
• Month Days Enter the days of the month when the rule
should be applied. Enter numbers in the range 1 to 31.
If you enter more than one day, use commas to separate
the numbers (example: 3, 4, 5).
- Match all month days except for these Match all
days of the month except for the selected days.
