Chapter 5: Security TabEdgeOS
™
User Guide
Ubiquiti Networks, Inc.
• Copy Rule To create a duplicate, click Copy Rule. The
duplicate rule appears at the bottom of the list.
• Delete Rule Remove the rule.

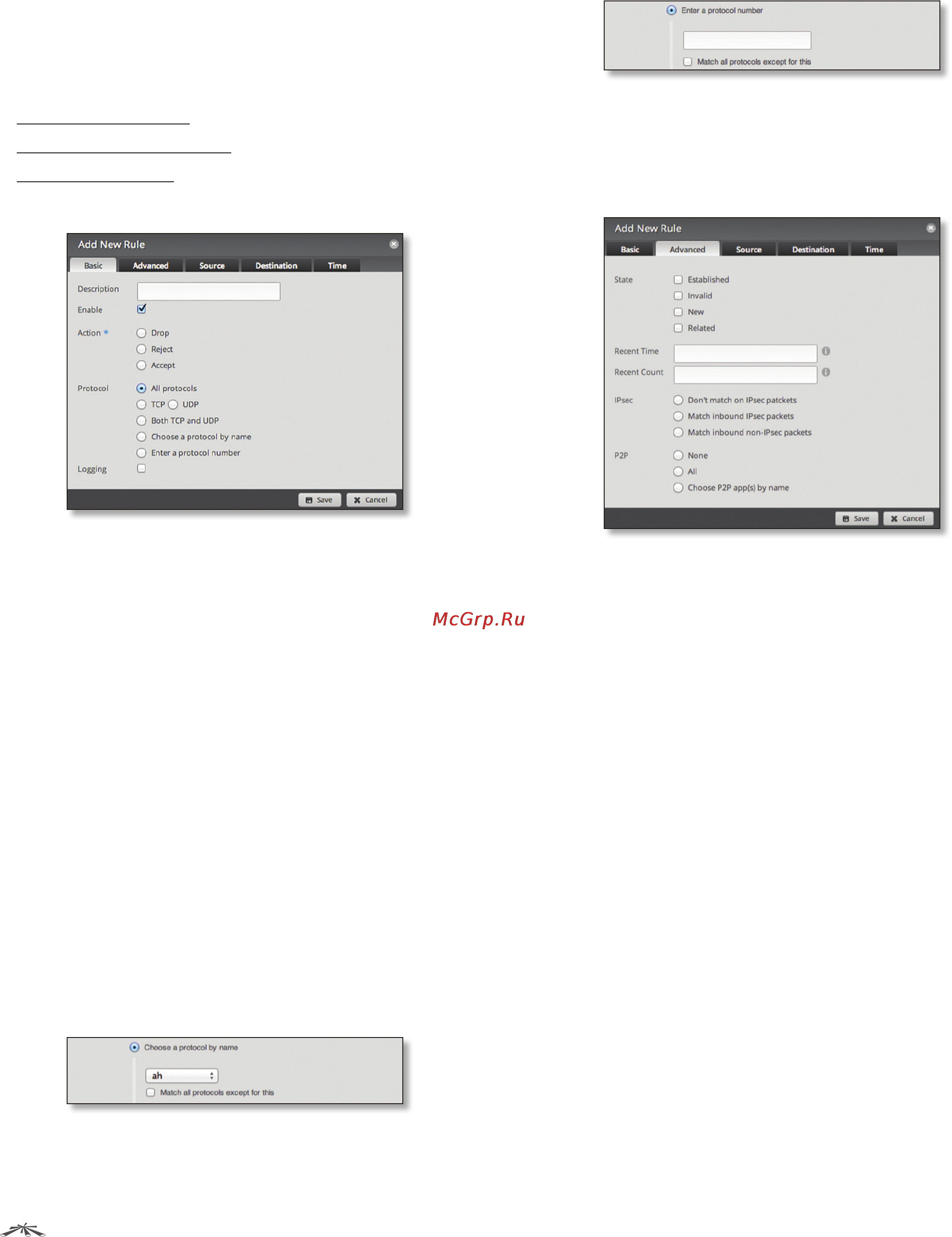

Add or Configure a Rule
The Rule Configuration for _ screen appears. You have five
tabs available:
• Basic (see below)
• Advanced (see the next column)
• ”Source” on page 23
• ”Destination” on page 23
• ”Time” on page 23
Basic
• Description Enter keywords to describe this rule.
• Enable Check the box to enable this rule.
• Action Select the action for packets that match this
rule’s criteria.
- Drop Packets are blocked with no message.
- Reject Packets are blocked, and an ICMP (Internet
Control Message Protocol) message is sent saying the
destination is unreachable.
- Accept Packets are allowed.
• Protocol
- All protocols Match packets of all protocols.
- TCP Match TCP packets.
- UDP Match UDP packets.
- Both TCP and UDP Match TCP and UDP packets.
- Choose a protocol by name Select the protocol from
the drop-down list. Match packets of this protocol.
• Match all protocols except for this Match packets
of all protocols except for the selected protocol.
- Enter a protocol number Enter the port number of
the protocol. Match packets of this protocol.
• Match all protocols except for this Match packets
of all protocols except for the selected protocol.
• Logging Check this box to log instances when the rule
is matched.
Click Save to apply your changes, or click Cancel.
Advanced
• State This describes the connection state of a packet.
- Established Match packets that are part of a two-way
connection.
- Invalid Match packets that cannot be identified.
- New Match packets creating a new connection.
- Related Match packets related to established
connections.
• Recent Time Enter the number of seconds to monitor
for attempts to connect from the same source.
• Recent Count Enter the number of times the same
source is detected within the Recent Time duration.
This helps thwart attacks using continual attempts to
connect.
• IPsec IPsec (Internet Protocol security) helps secure
packet routing.
- Don’t match on IPsec packets Do not match any
IPsec packets.
- Match inbound IPsec packets Match IPsec packets
that are entering the EdgeRouter.
- Match inbound non-IPsec packets Match non-IPsec
packets that are entering the EdgeRouter.
