PANEL DESCRIPTION
New2001

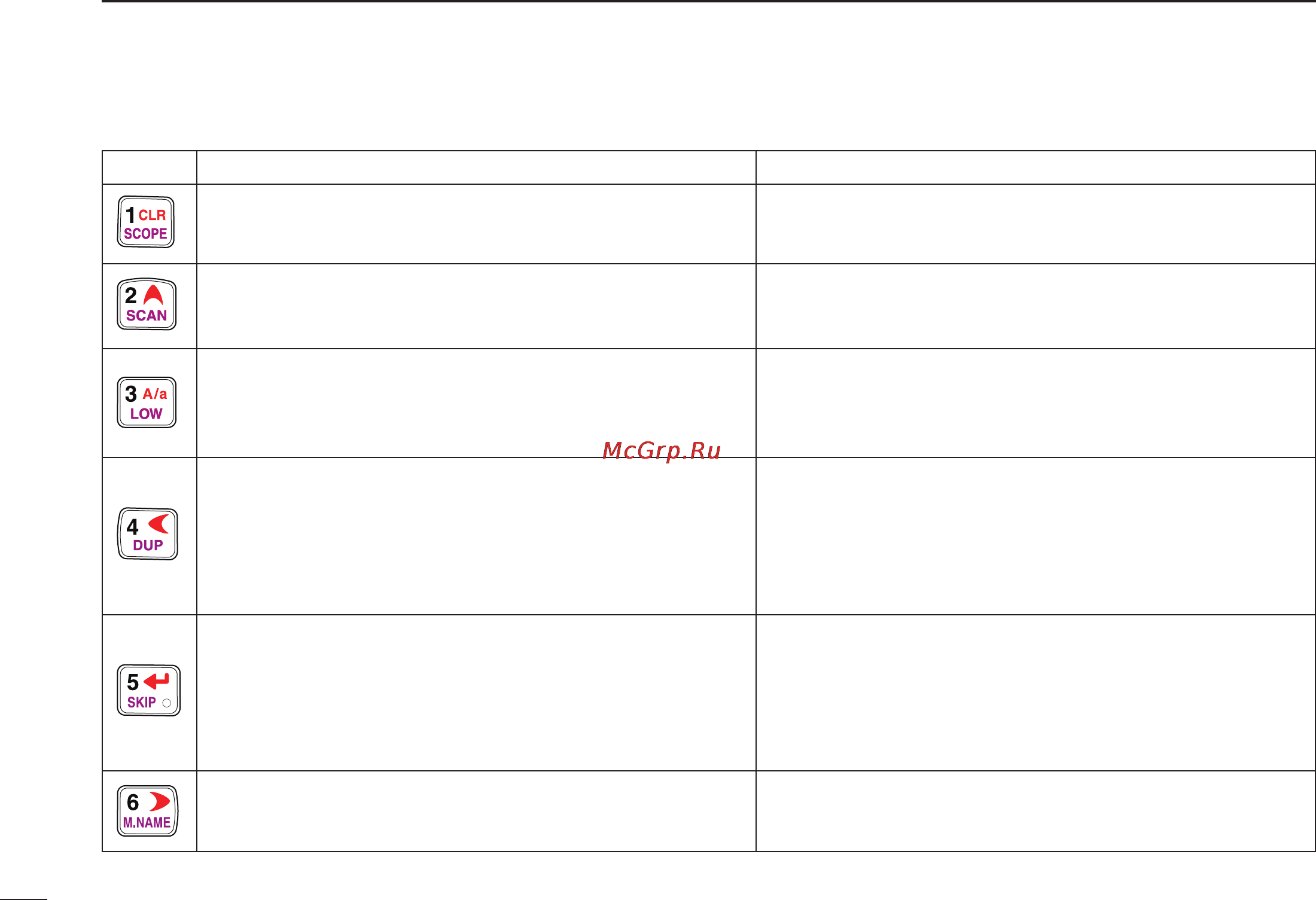

D KEYPAD
1
SCOPE
CLR
2
SCAN
KEY Pushed momentarily
3
LOW
A/a
4
DUP
5
SKIP
6
M.NAME
Pushed and held for 1 sec.
• Inputs digit ‘1’ for frequency input, memory channel selection,
etc.
• While pushing [PTT], this key sends the DTMF code “1.”
• Inputs digit ‘2’ for frequency input, memory channel selection,
etc.
• While pushing [PTT], this key sends the DTMF code “2.”
• Inputs digit ‘3’ for frequency input, memory channel selection,
etc.
• While pushing [PTT], this key sends the DTMF code “3.”
• Inputs digit ‘4’ for frequency input, memory channel selection,
etc.
• While pushing [PTT], this key sends the DTMF code “4.”
• Inputs digit ‘5’ for frequency input, memory channel selection,
etc.
• While pushing [PTT], this key sends the DTMF code “5.”
• Inputs digit ‘6’ for frequency input, memory channel selection,
etc.
• While pushing [PTT], this key sends the DTMF code “6.”
• Displays the simple band scope for a single sweep. (p. 23)
• Displays the simple band scope for continuation sweep. (p. 23)
• Starts a scan. (p. 83)
• Toggles the transmit output power between high, mid, low and
S-low (p. 24).
- While pushing and holding this key, with [DIAL] rotation se-
lects the output power.
• Activates the following duplex functions in order.
- Minus duplex operation— “–DUP” appears.
- Plus duplex operation— “+DUP” appears.
- Simplex operation— no duplex indicator appears.
- While pushing and holding this key, [DIAL] rotation selects the
duplex function.
• Turn the frequency skip function ON and OFF in VFO mode, or
set the memory channel as the following skip channel in mem-
ory mode in order (p. 87).
- Skip channel— “SKIP” appears.
- Frequency skip channel— “PSKIP” appears.
- Non-skip channel— no skip indicator appears.
• Turn the memory or bank name indication ON and OFF. (p. 78)
• Memory name (normal), memory name (large), bank name and
OFF are selectable.
