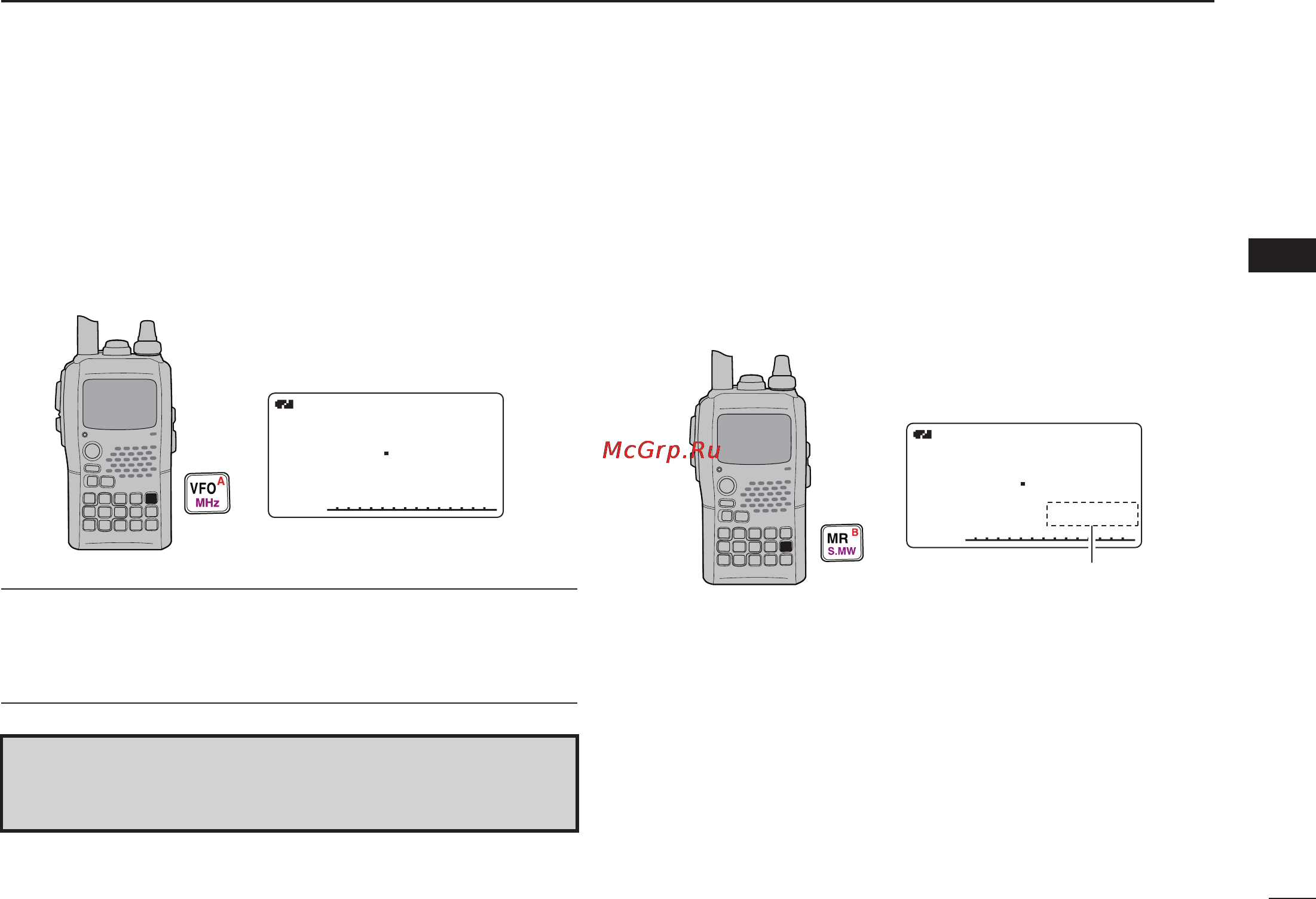

■ Mode selection
D VFO mode
VFO mode is used to set the desired frequency.
➥ Push [VFO] to select VFO mode.
What is VFO?
VFO is an abbreviation of Variable Frequency Oscillator. Fre-
quencies for both transmitting and receiving are generated
and controlled by the VFO.
D Memory mode
Memory mode is used for operation on memory channels
which store programmed frequencies.
q Push [MR] to select memory mode.
• “µ ” appears when memory mode is selected.
w Rotate [DIAL] to select the desired memory channel.
• Only programmed memory channels can be selected.
• Enter the memory channel directly to select the desired memory
channel. (p. 72)
• See p. 74 for memory programming details.
