Icom IC-92AD [93/156] Memory scan
![Icom IC-92AD [93/156] Memory scan](/views2/1074086/page93/bg5d.png)
85
10
SCAN OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

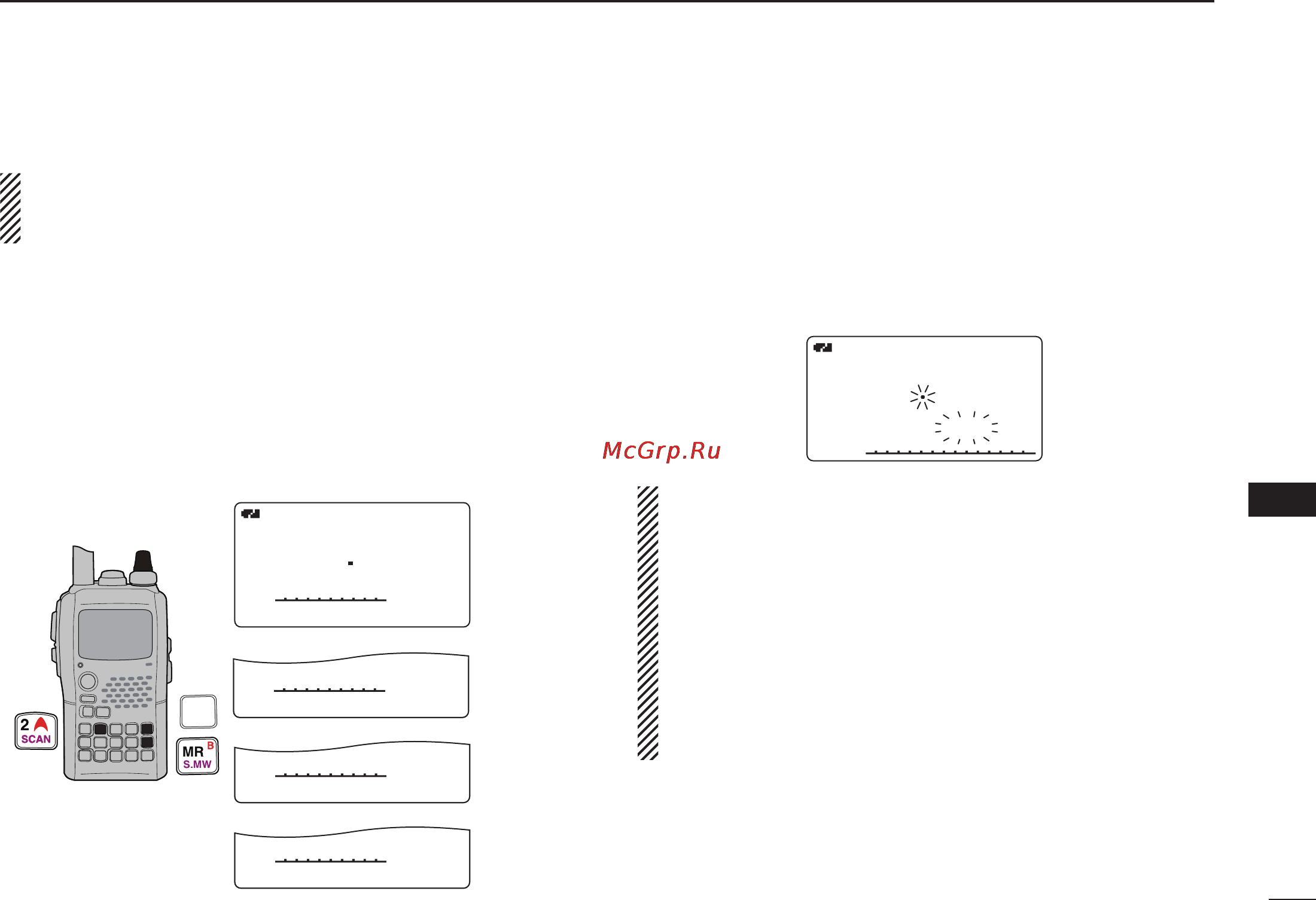

■ Memory scan
IMPORTANT!: To perform memory scan, 2 or more mem-
ory channels MUST be programmed, otherwise the scan
will not start.
q Push [MR] to select memory mode.
w Set the squelch level.
e While pushing and holding [SCAN](2), rotate [DIAL] to
select the desired scanning type.
• “ALL” for full memory scan; “BAND” for band memory scan,
“MODE” for mode scan, “DUP” (appears only when duplex op-
eration is set) for duplex scan.
r Release [SCAN](2) to start the selected scan.
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction, or resumes
manually.
t To stop the scan, push [VFO].
Band memory scan function: Repeatedly scans all
memory channels programmed with any frequencies of
the band programmed in the memory channel selected
for scanning.
Mode scan function: Repeatedly scans all memory
channels in which the same operating mode as the se-
lected memory channel has been programmed.
Duplex scan function: Repeatedly scans two frequen-
cies (transmission/reception) during duplex scan opera-
tion.
FM
FM
A
14
146
010
010
µ
088
088
SCAN:ALL
SCAN:ALL
FM
A
14148 800800
µ
088088
SCAN:BANDSCAN:BAND
FM
A
14148 800800
µ
088088
SCAN:MODESCAN:MODE
PSKI
PSKIP
PSKI
PSKIP
PSKI
PSKIP
FM
A
14148 800800
µ
088088
SCAN:DUPSCAN:DUP
PSKI
PSKIP
• All memory scan selection
• Mode scan selection
• Duplex scan selection
• Band memory scan selection
[DIAL]
VFO
MHz
A
MR
S.MW
B
2
SCAN
FM
A
µ
012
148 800
• During memory scan
