New
88
10
SCAN OPERATION
New2001
t Push and hold [S.MW](MR) for 1 sec. to store the skip
condition into the memory.
• “SKIP” or “PSKIP” indicator appears, according to the skip se-
lection in the step r.
✔ CONVENIENT!
The skip setting can be set with the following operation.
q Select the desired memory channel to be set as a skip
channel/frequency.
w
While pushing [SKIP](5), rotate [DIAL] to select the skip
condition from “PSKIP,” “SKIP” and “OFF
(no indication).”
✔ CONVENIENT!
During VFO scanning, such as programmed scan, the skip
setting can be programmed into the highest blank memory
channel which is automatically selected with the following
operation.
q Start the VFO scan.
➥ Push
[VFO] to select VFO mode.
• Select the desired frequency band with [BAND], if desired.
➥ Set the squelch level.
➥ While pushing and holding [SCAN](2), rotate [DIAL] to
select the desired scan type.
• “ALL” for full scan; “BAND” for band scan, “P-LINK” for
programmed link scan, “PROG-xx (or scan name if pro-
grammed)” for programmed scan (xx= 0 to 24; programmed
scan edges numbers are only displayed), “DUP” for duplex
scan.
➥ To start the scan, release [SCAN](2).
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction, or resumes
manually.
w When scan pauses and you want to set the paused fre-
quency as a skip frequency.
➥ Push and hold [SKIP](5) for 1 sec. to store the paused
frequency into the highest blank memory channel.
• While pushing and holding [SKIP](5), scan pauses; and
when releasing [SKIP](5) scan resumes.
FM
FM
A
µ
SKIP
SKIP
033
033
14
145
700
700
FM
FM
A
µ
PSKI
PSKIP
033
033
14
145
700
700

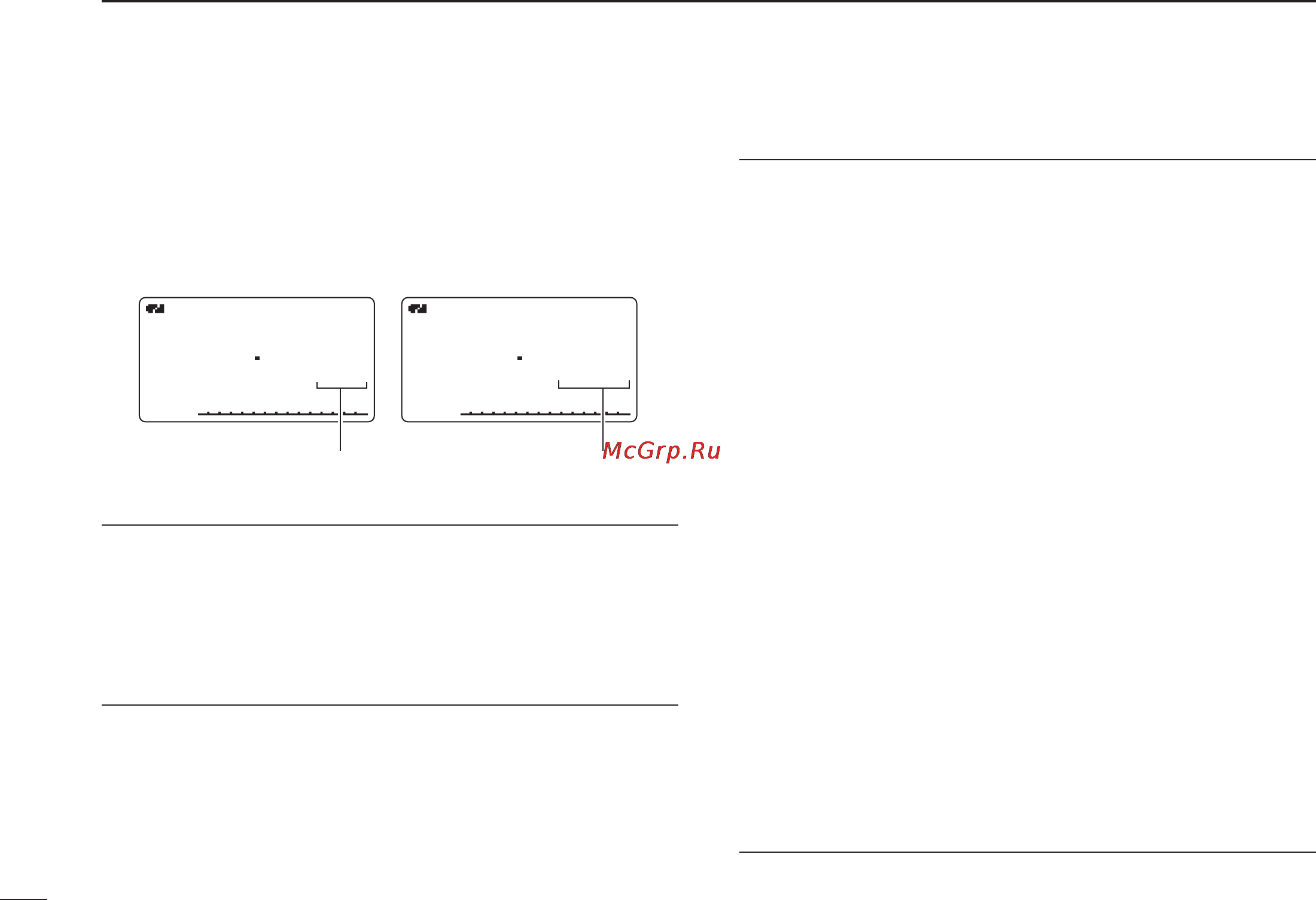

• Skip channel setting
• Program skip setting
“SKIP” appears
“PSKIP” appears
