BATTERY CHARGING
New2001
■ Regular charging
Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
D Battery indicators
The indicators show “ ,” “ ” and “ ” in sequence
while charging (the transceiver’s power OFF), and indicators
disappear when completely charged.
D Charging note
• Be sure to turn the transceiver power OFF.
Otherwise the battery pack will not be charged completely or takes
longer to charge time periods.
• External DC power operation becomes possible when
using an optional CP-12L, CP-19R or OPC-254L. The at-
tached battery pack is also charged simultaneously, except
during transmit. (see p. 11 for more details)
• The external DC power supply voltage must be between 10
–16 V to charge the battery pack and for operation when
using an optional OPC-254L.

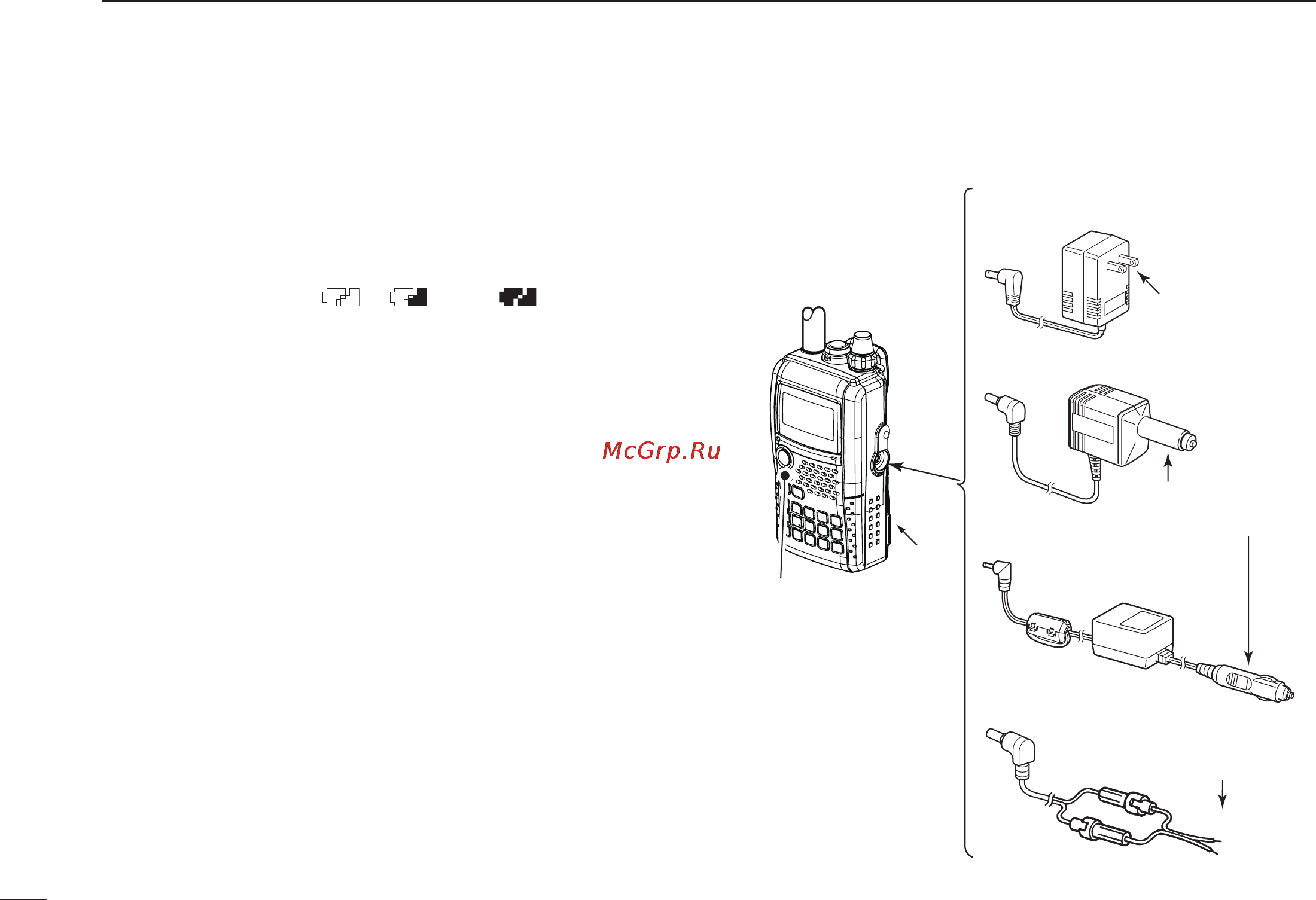

• BC-167A/D
• CP-12L (Optional)
• OPC-254L (Optional)
to AC outlet
to cigarette lighter
socket (12 V DC)
to 12 V DC
(power supply)
White: +
Black: _
Transceiver
to
[DC IN]
Turn power OFF while
charging the battery
pack.
• Charging time period:
Approx. 6 hours
BP-256
• CP-19R (Optional)
