New
30
6
REPEATER AND DUPLEX OPERATIONS
New2001

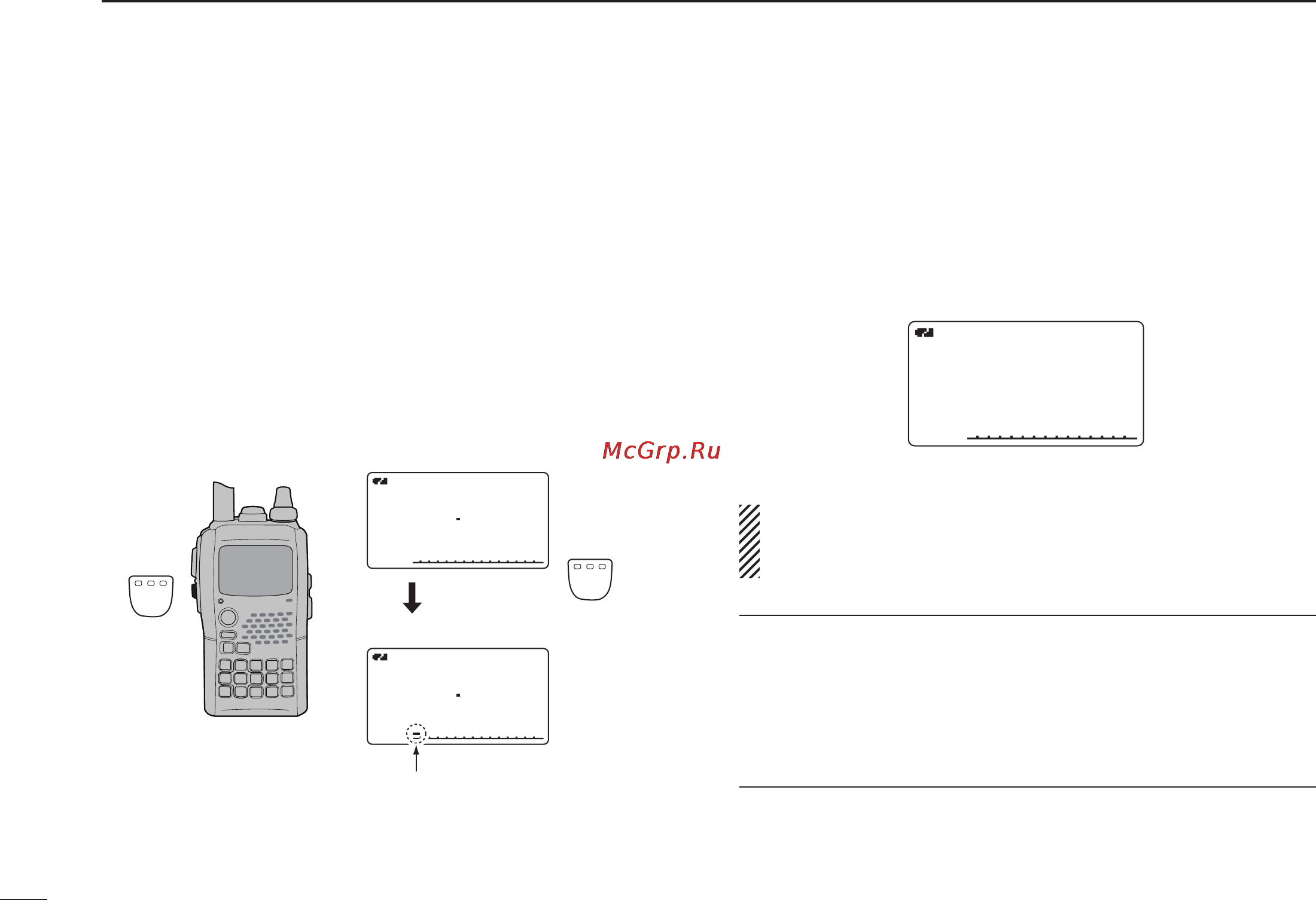

D Checking the repeater input signal
The transceiver can check whether the other station’s trans-
mit signal can be received directly or not, by listening on the
repeater input frequency.
➥ Push and hold [SQL] to check whether the other station’s
transmit signal can be received directly or not.
• When the other station’s signal can be directly received, move
to a non-repeater frequency to use simplex. (duplex OFF)
D Off band indication
If the transmit frequency is out of the amateur band, the off
band indication, “OFF,” appears on the display when [PTT]
is pushed. Check the offset frequency or duplex direction in
this case.
(p. 31)
U.S.A. version:
Auto repeater function uses standard values of the offset
frequency.
✔ CONVENIENT!
Tone scan function: When you don’t know the subaudible
tone used for a repeater, the tone scan is convenient for de-
tecting the tone frequency.
➥ Push and hold [T.SCAN](.) for 1 sec. to start the tone
scan. See p. 126 for more information.
Indication while receiving.
Receives –0.6 MHz shift frequency.
Blinks while pushing and holding [SQL].
A
A
TONE
TONE
FM
FM
145300
145300
PSKI
PSKIP
-DUP
-DUP
A
TONE
TONE
FM
FM
14
144
700
700
PSKI
PSKIP
-DUP
-DUP
Push and hold
[SQL]
[SQL]
A
A
OFF
OFF
TONE
TONE
FM
FM
PSKI
PSKIP
-DUP
-DUP
