SCAN OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ Skip channel/frequency setting
Memory channels can be set to be skipped during memory
skip scan. In addition, memory channels can be set to be
skipped during both memory skip scan and frequency skip
scan. This is useful to speed up the scan rate.

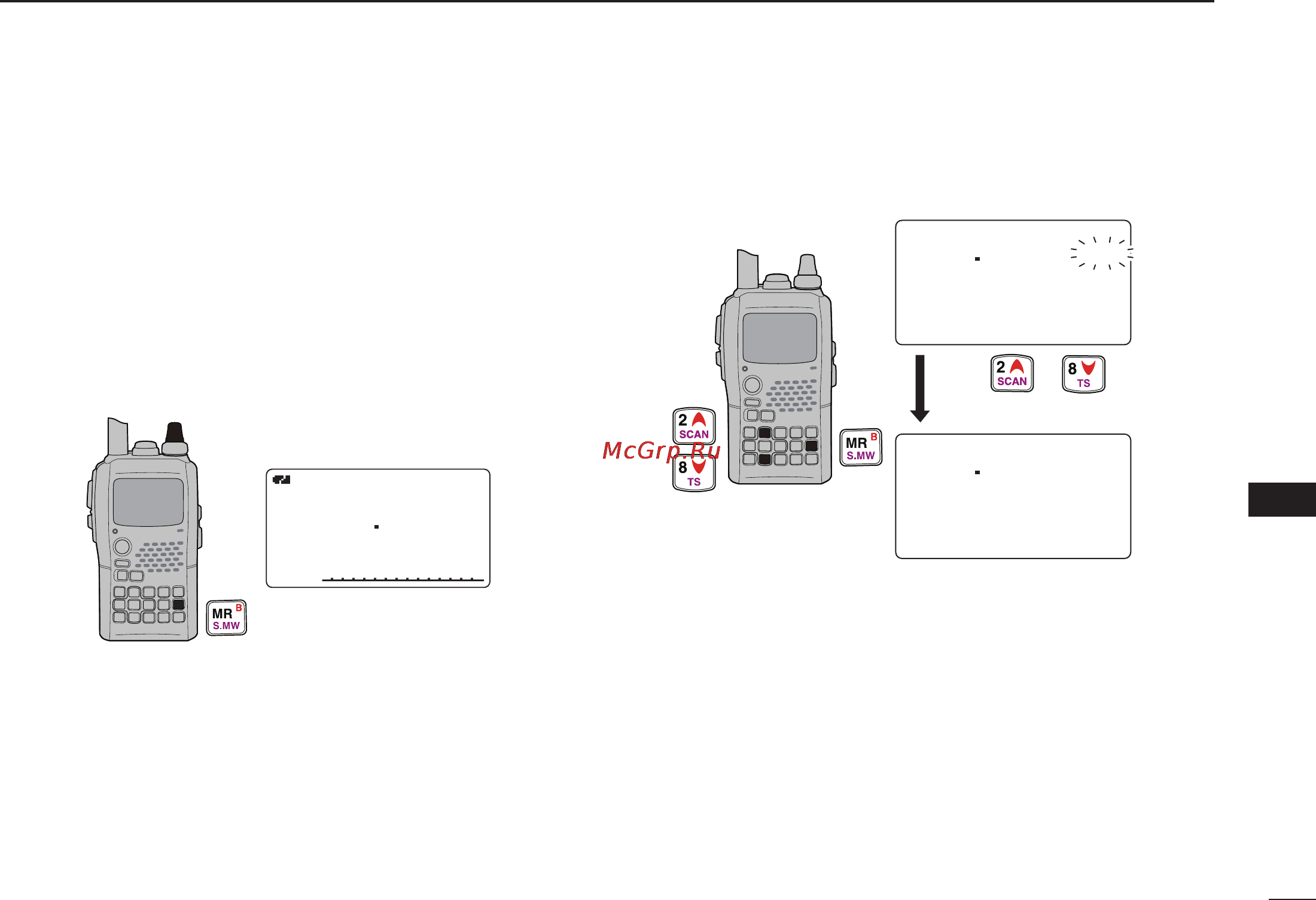

q Select a memory channel:
➥ Push [MR] to select memory mode.
➥ Rotate [DIAL] to select the desired channel to be a
skip channel/frequency.
w Push and hold [S.MW](MR) for 1 sec. to enter select
memory write mode.
e Push [∫](2) or [√](8) several times to select “SKIP.”
r Rotate [DIAL] to select the skip condition from “SKIP,”
“PSKIP” or “OFF” for the selected channel.
• PSKIP : The channel is skipped during memory/bank scan and
the programmed frequency is skipped during VFO
scan, such as programmed scan.
• SKIP : The channel is skipped during memory or bank scan.
• OFF : The channel is scanned during any scan.
(Continue to the next page.)
FM
FM
A
µ
020
020
14
145
870
870
[DIAL]
MR
S.MW
B
14
146
010
010
BANK
BANK
:----
:----
MNAME:
MNAME:
SKIP
SKIP
:OFF
:OFF
FM
FM
r
µ
012
012
14
146
010
010
MNAME:
MNAME:
SKIP
SKIP
:OFF
:OFF
CLEAR
CLEAR
FM
FM
r
µ
012
012
or
several times.
Push
MR
S.MW
B
2
SCAN
8
TS
2
SCAN
8
TS
