4
2
PANEL DESCRIPTION
■ Panel description (Continued)
➥ Number input: ‘7’
➥ Comment input: ‘7,’ ‘P,’ ‘R,’ ‘S,’ ‘p,’ ‘r’ or ‘s’
➥ After pushing [O], push to turn the Hailer func-
tion ON or OFF. (p. 44)
➥ After pushing [O], hold down for 1 second to
turn the RX speaker function ON or OFF. (p. 46)
➥ Number input: ‘8’
➥ Comment input: ‘8,’ ‘T,’ ‘U,’ ‘V,’ ‘t,’ ‘u’ or ‘v’
➥ After pushing [O], push to turn the Automatic
foghorn function ON or OFF. (p. 45)
➥ Number input: ‘9’
➥ Comment input: ‘9,’ ‘W,’ ‘X,’ ‘Y,’ ‘w,’ ‘x’ or ‘y’
➥ After pushing [O], push to turn the Intercom
function ON or OFF. (p. 43)
➥ Number input: ‘0’
➥ Number input:
Hold down for 1 second to input the
character ‘A’ for simplex channel.
➥ Comment input: ‘0’ and symbols (‘–’ ‘/’ ‘.’)
➥ After pushing [O], push to activate an optional
Voice scrambler function. (p. 12)
• The optional Voice scrambler function cannot be
used on Channels 16 and 70.
➥ Push to enter the input channel comment, se-
lected item, etc.
➥ Push to clear the entered data.

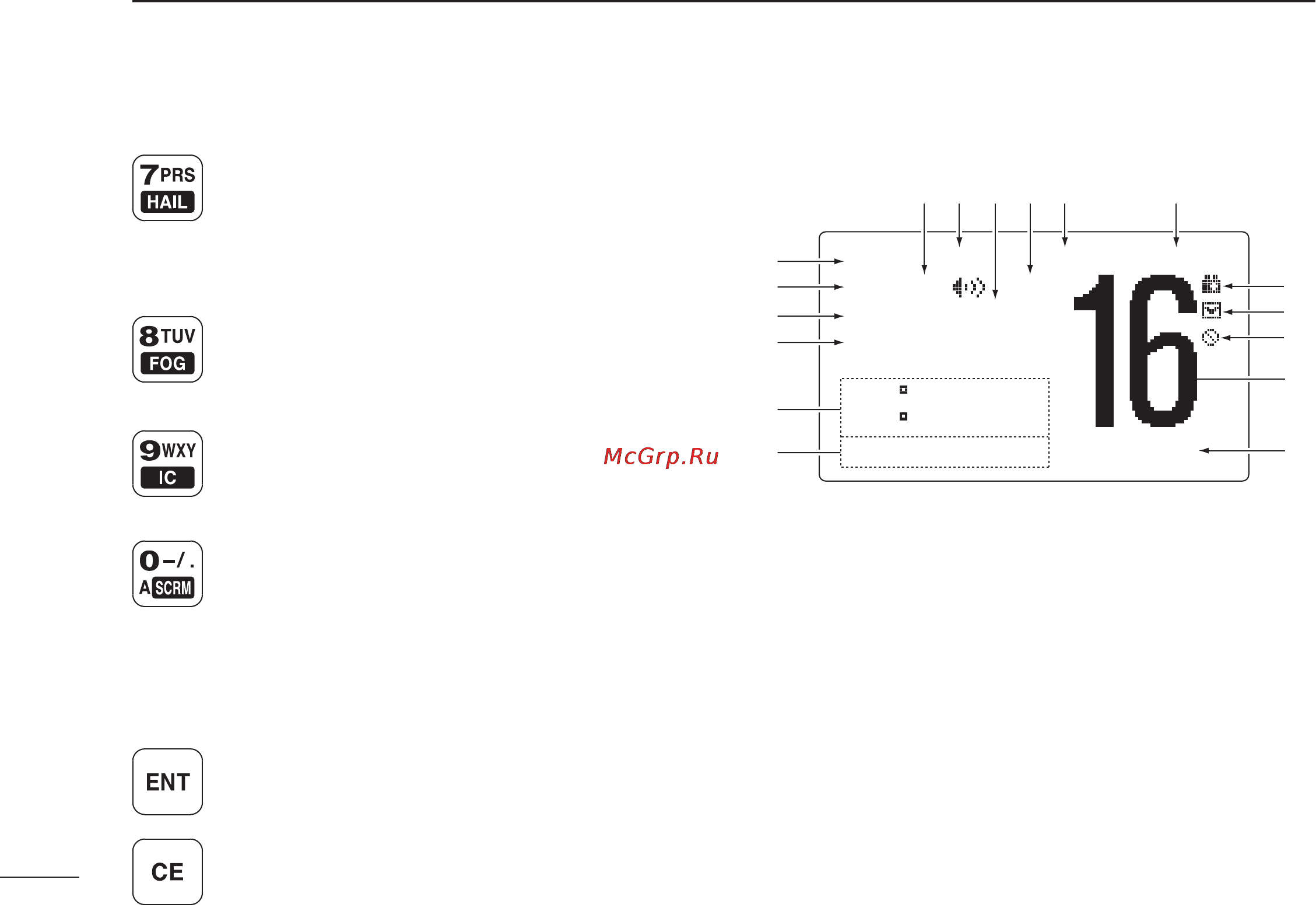

■ Function display
$75;$75; 99 +06+06 %#..%#..
.1%.1% 4:4: &72&72
5%4#/5%4#/ 6#)6#)
014/#.014/#. 5%#05%#0
00
99
76%76% %#..+0)%#..+0)
qwert y
!7
!6
!5
!3
!2
!4
!0
u
i
o
!1
q RX SPEAKER ICON (p. 46)
Appears when in the RX speaker mode.
w POWER ICON (p. 9)
➥ “9” appears when high power is selected.
➥ “9” appears when low power is selected.
e TAG CHANNEL ICON (p. 15)
Appears when a TAG channel is selected.
r DUPLEX ICON (p. 8)
Appears when a duplex channel is selected.
t CHANNEL GROUP ICON (p. 8)
Indicates whether a U.S.A. “75#,” International “+06,”
Canadian “%#0” or weather “9:” channel is in use.
