Icom IC-M604A [59/68] Mb 75 installation
![Icom IC-M604A [59/68] Mb 75 installation](/views2/1074297/page59/bg3b.png)
53
9
CONNECTIONS AND MAINTENANCE
9
■ MB-75 installation
An optional MB-75 FLUSH MOUNT KIT is available for mounting
the transceiver to a fl at surface such as an instrument panel.
KEEP the transceiver and microphone at least 1 m (3.3 ft)
away from the vessel’s magnetic navigation compass.
q Using the attached template, carefully cut a hole into
the instrument panel (or wherever you plan to mount the
transceiver).

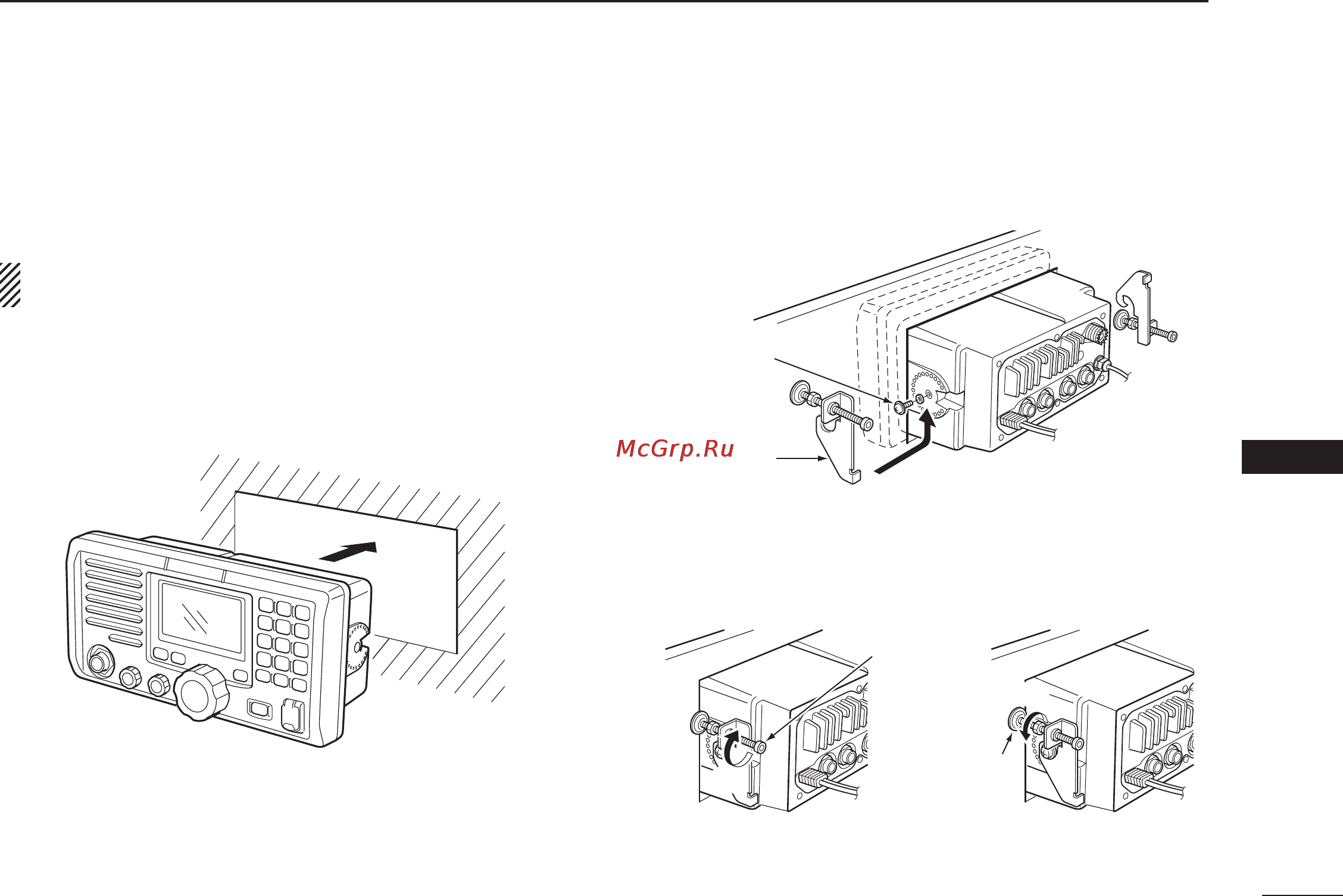

w Slide the transceiver into the hole as shown below.
e Attach the 2 supplied bolts (M5 × 8 mm) on either side of
the IC-M604A.
r Attach the clamps on either side of the IC-M604A.
• Make sure that the clamps align parallel to the IC-M604A’s body.
Clamp
Supplied bolt
t Tighten the end bolts on the clamps (rotate clockwise) so
that the clamps press firmly against the inside of the in-
strument control panel. (Torque: 0.6 N.m)
y Tighten the locking nuts (rotate counterclockwise) so that
the IC-M604A is securely mounted into position.
End bolt
Locking nut
t
y
u Connect the antenna and power cable.
