Icom IC-M604A [66/68] Options
![Icom IC-M604A [66/68] Options](/views2/1074297/page66/bg42.png)
60
11
SPECIFICATIONS AND OPTIONS

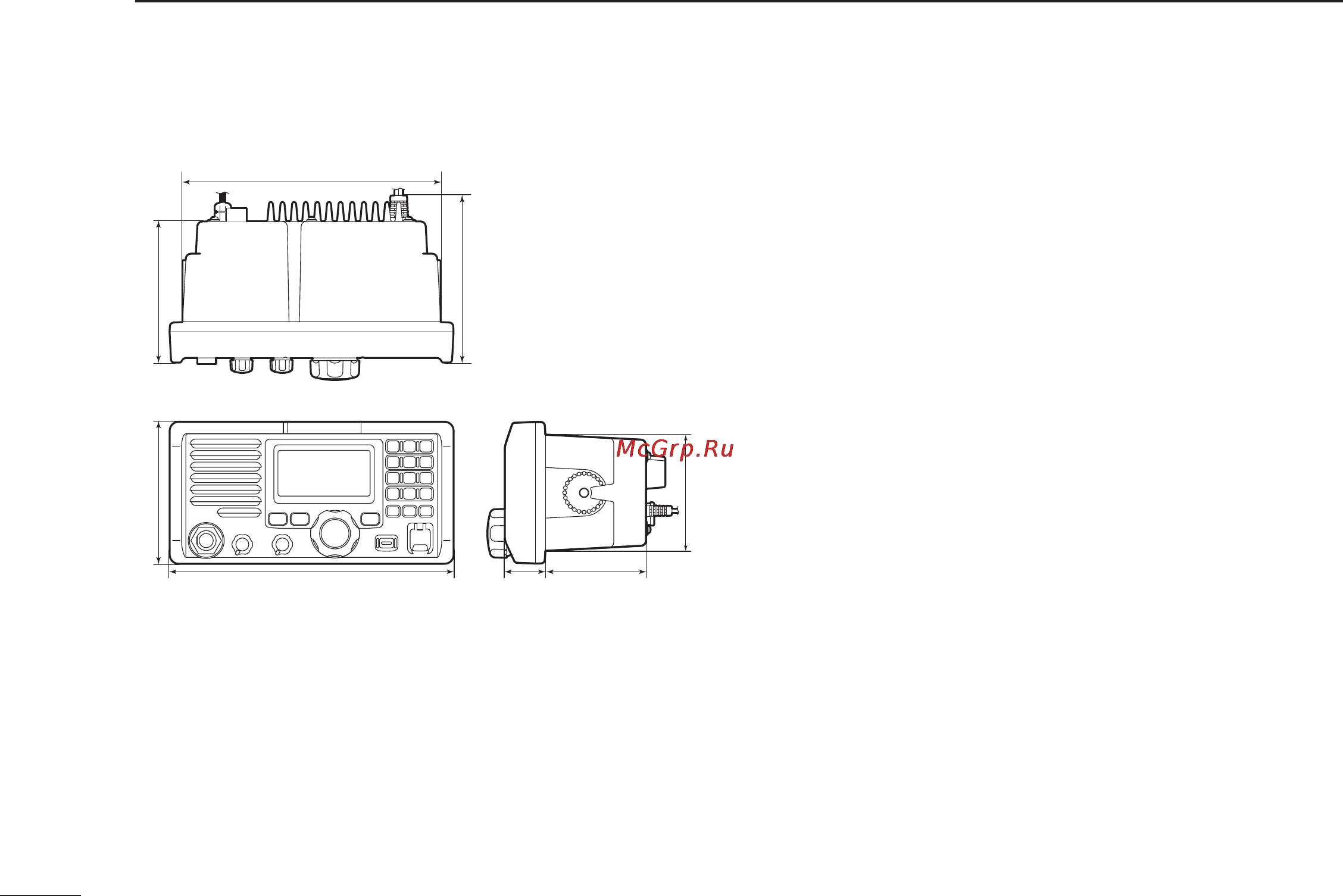

D Dimensions
Unit: mm (inch)
220.0 (8.7˝)
31.4
(1.3˝)
78.0
(3.1)
110.0 (40.3˝)
109.4 (4.3˝)
124.4 (4.9˝)
200.0 (7.9˝)
90.0 (3.5˝)
■ Options
• MB-75 FLUSH MOUNT KIT
For mounting the transceiver to a panel.
• HM-157
COMMANDMICII™
External microphone-type controller. Provides optional inter-com
operation. 6 m (20 feet) microphone cable and mount-ing base in-
cluded. Black and white colors are available.
Do not connect the HM-157 to the OPC-1541.
• HM-162
COMMANDMICIII™
External microphone-type controller. Provides optional inter-com
operation. 6 m (20 feet) microphone cable and mount-ing base in-
cluded. Black and white colors are available.
Do not connect the HM-162 to the OPC-999/OPC-1000.
• HM-126RB/RG
HAND MICROPHONE
Equipped with [Y]/[Z] (channel up/down,) [HI/LO] and [PTT] keys,
a speaker and microphone.
• OPC-999
MICROPHONE EXTENSION CABLE
6 m (20 feet) microphone extension cable for optional HM-157 COM-
MANDMICII™. Up to 2 OPC-999 can be connected. (18 m; 60 feet
maximum)
• OPC-1541
MICROPHONE EXTENSION CABLE
6 m (20 feet) microphone extension cable for optional HM-162 COM-
MANDMICIII™. Up to 2 OPC-1541 can be connected. (18 m; 60 feet
maximum)
• UT-112
VOICE SCRAMBLER UNIT
Ensures private communications. 32 codes are available.
Not available in some countries.
• OPC-1000
MICROPHONE EXTENSION CABLE
6 m (20 feet) microphone extension cable for the supplied micro-
phone.
Approved Icom optional equipment is designed for optimal
performance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an
Icom transceiver in the event the Icom transceiver is used
with equipment that is not manufactured or approved by
Icom.
