BASIC OPERATION
3
■ Channel comments
Each channel can be labeled with a unique alphanumeric ID
of up to 10 characters.
Capital letters, small letters, 0 to 9, some symbols ( )
and space can be used.
q Select the desired channel.
• Cancel Dualwatch, Tri-watch or Scan fi rst.
w While holding down [H/L], push [16•9] to edit the channel
comment.
• A cursor and the fi rst charac-
ter start alternately blinking.
e Push the appropriate key
several times to select the desired character.
• See the table to the right for selectable characters.
• Rotate [SELECTOR] or push [Y]/[Z] on the microphone to
move the cursor.
• Push [CE] to clear the channel comment.
• Push [CLR] to cancel and exit the screen.
r Push [ENT] to input and set the comment.
• The cursor and the character stop blinking.
t Repeat steps q to r to program other channel com-
ments, if desired.

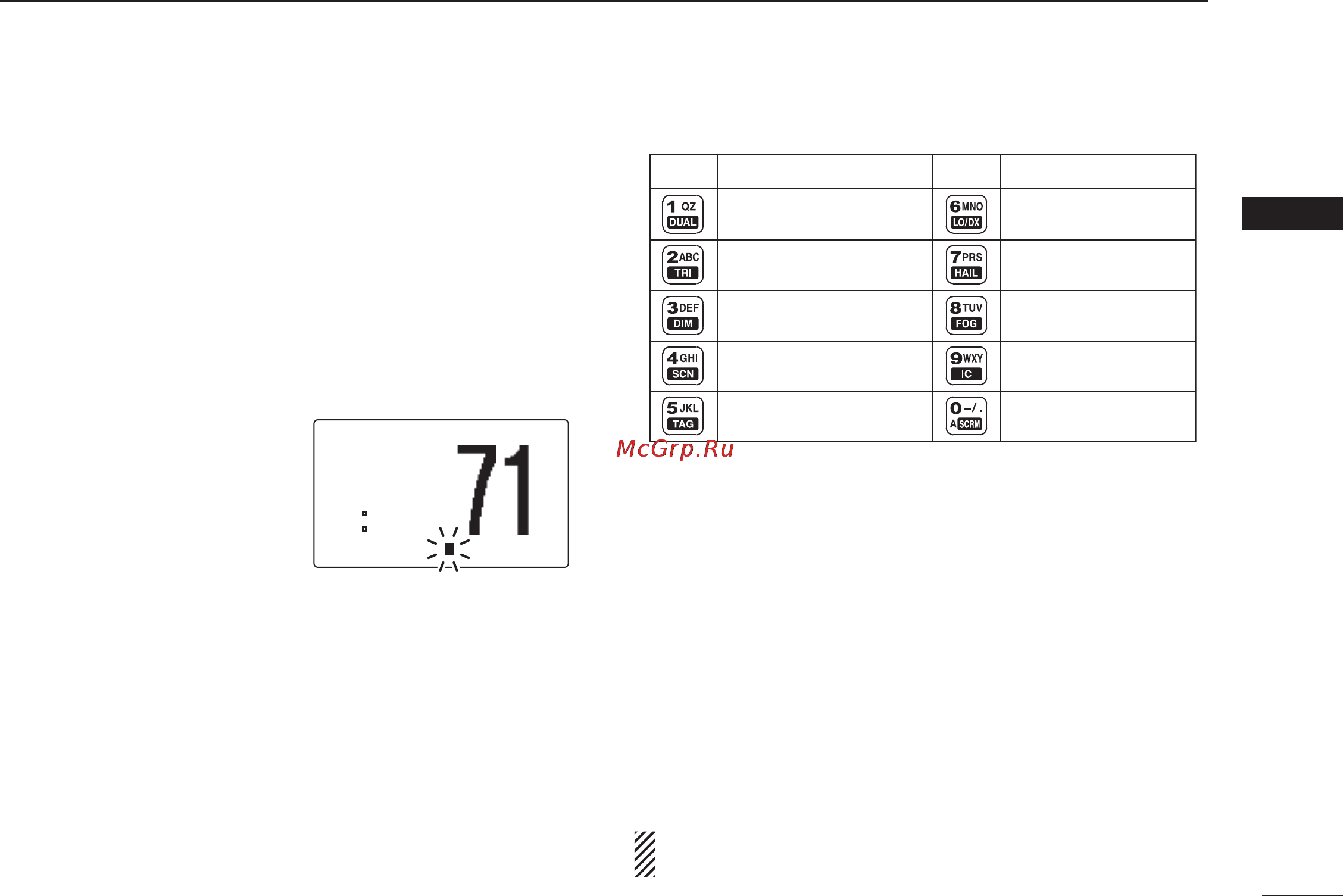

• Selectable characters
KEY CHARACTERSKEY CHARACTERS
3<S\(space)
#$%CDE
&'(FGH
)*+IJK
,-.LMN
/01OPQ
245RTU
678VWX
9:;YZ[
■
AquaQuake water draining function
The IC-M604A uses a new technology to clear water away from
the speaker grill: AquaQuake. AquaQuake helps clear water
away from the speaker housing (water that might otherwise
muffle the sound coming from the speaker). The IC-M604A
emits a vibrating noise when this function is being used.
➥ While holding down [H/L], turn power ON.
• A low beep tone sounds while [H/L] key is pushed and held to
drain water, regardless of [VOL] control setting.
• All other key operations are disabled while the AquaQuake
function is activated.
To clear water away from the HM-162, hold down [PTT],
and then turn ON the power.
