PANEL DESCRIPTION

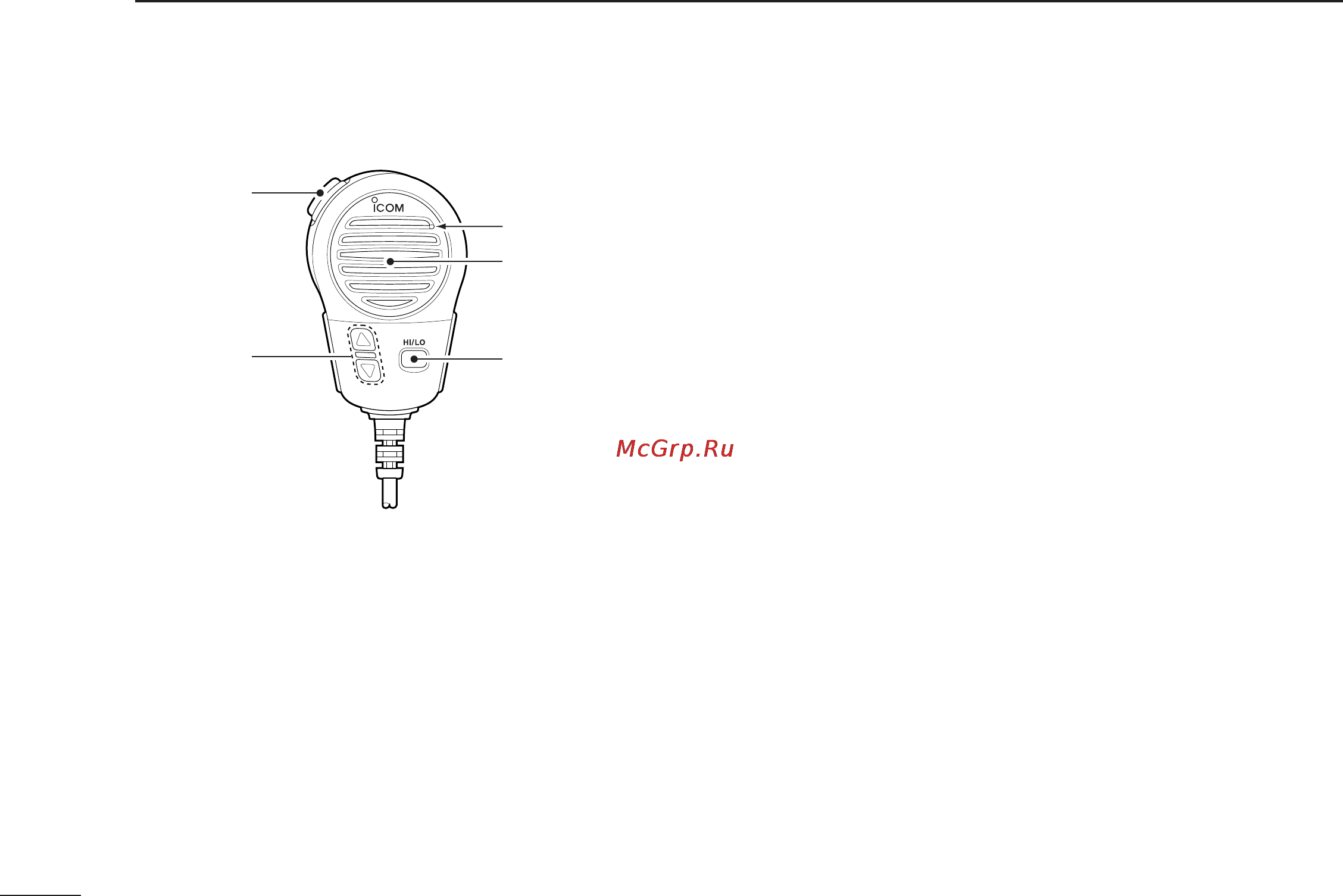

■ Speaker microphone
Speaker
Microphone
q
e
w
q PTT SWITCH [PTT]
Hold down to transmit; release to receive. (p. 9)
w CHANNEL UP/DOWN KEYS [Y]/[Z]
➥ Push either key to change the operating channels, Set
mode settings, etc. (pp. 7–9, 47)
➥ Checks TAG channels, changes scanning direction or
manually resumes a scan. (p. 15)
e TRANSMIT POWER KEY [HI/LO]
➥ Push to toggle the power high and low. (p. 9)
• Some channels are set to only low power.
➥ While holding down [HI/LO], turn ON the transceiver's
power to turn the Microphone lock function ON or OFF.
(p. 10)
