7
3
BASIC OPERATION
2
3

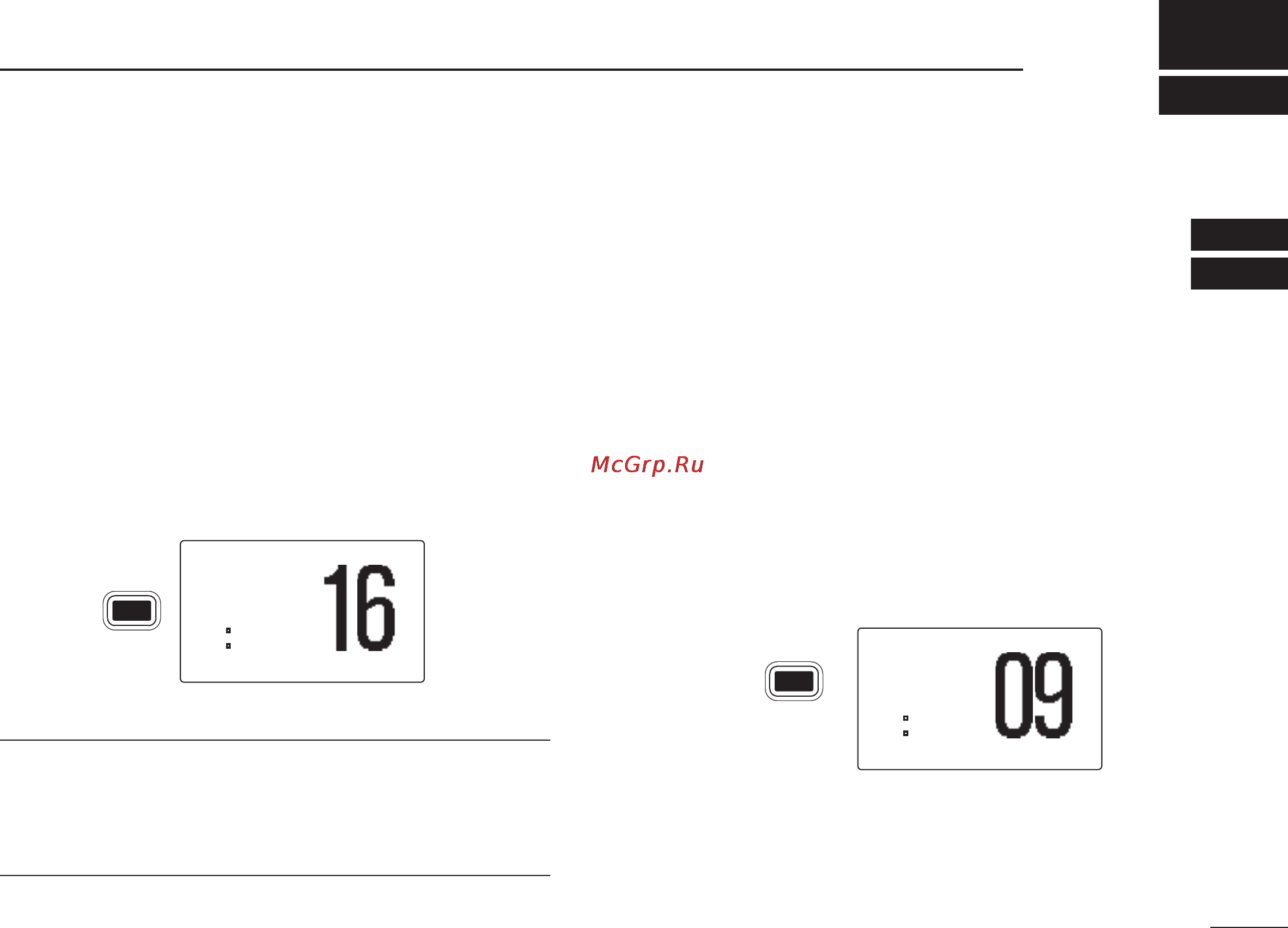

■ Channel selection
D Channel 16
Channel 16 is the distress and safety channel. It is used for
establishing initial contact with a station and for emergency
communications. Channel 16 is monitored during both Du-
alwatch and Tri-watch. While standing by, you must monitor
Channel 16.
➥ Push [16•9] momentarily to select Channel 16.
➥ Push [CH/WX] to return to the screen before selecting
Channel 16, or rotate [SELECTOR] to select a channel.
• Pushing the keypad keys, or [Y]/[Z] on the microphone, also
selects a channel.
99 +06+06
6#)6#)
00
99
76%76% %#..+0)%#..+0)
Push
9
16
✔Convenient!
When the Favorite channel function is turned ON (p. 49),
pushing the [Y]/[Z] keys on the microphone sequentially
selects the favorite channels in the selected channel group.
• The favorite channels are set by the TAG channel setting. (p. 15)
D Channel 9 (Call channel)
Each regular channel group has a separate leisure-use Call
channel. The Call channel is monitored during Tri-watch. The
Call channels can be programmed, and are used to store
your most often used channel in each channel group for
quick recall. (p. 10)
➥ Hold down [16•9] for 1 second to select the Call channel
of the selected channel group.
• “%#..” and Call channel number appear.
• Each channel group may have an independent Call channel
after programming a Call channel. (p. 10)
➥ Push [CH/WX] to return to the screen before you selected
Call channel, or rotate [SELECTOR] to select a channel.
• Pushing keys on the keypad, or [Y]/[Z] on the microphone,
also selects a channel.
9
9
+06
+06
%#..
%#..
6#)
6#)
0
0
9
9
76%
76%
%#..+0)
%#..+0)
Hold down
for 1 second
9
16
