CONNECTIONS AND MAINTENANCE
■ HM-157/HM162 installation (Continued)

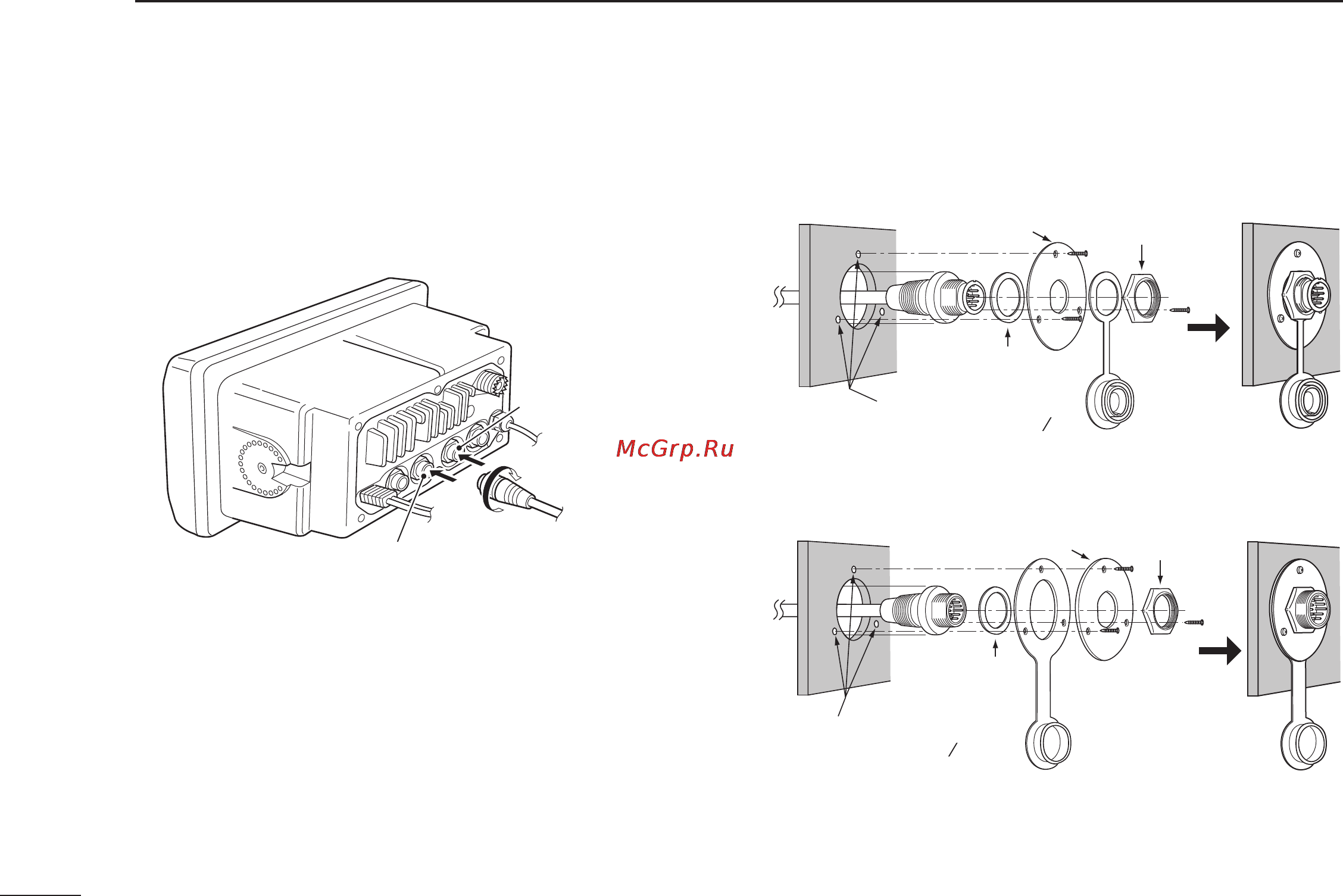

q Insert the supplied cable (or HM-157 without the cable)
into the [COMMAND MIC-1] or [COMMAND MIC-2]
connector and tighten the cable nut as shown below.
•
Up to two COMMANDMIC™s can be connected simultaneously.
• The HM-157 and HM-162 can be connected at the same time.
[COMMAND MIC-1]
[COMMAND MIC-2]
w To use the supplied cable as a wall socket, perform the
following steps.
e Using the mounting base as a template, carefully mark
the holes where the cable and three screws will be fas-
tened.
r Drill holes at these marks.
t Install the mounting base using the supplied screws as
shown below.
• HM-157
Gasket
Cap
Mounting base
Nut
Screw holes
(approx. 2 (d) mm;
3
32″)
Completed
• HM-162
Gasket
Cap
Mounting base
Nut
Screw holes
(approx. 2 (d) mm;
3
32″)
Completed
