OTHER FUNCTIONS
6
7

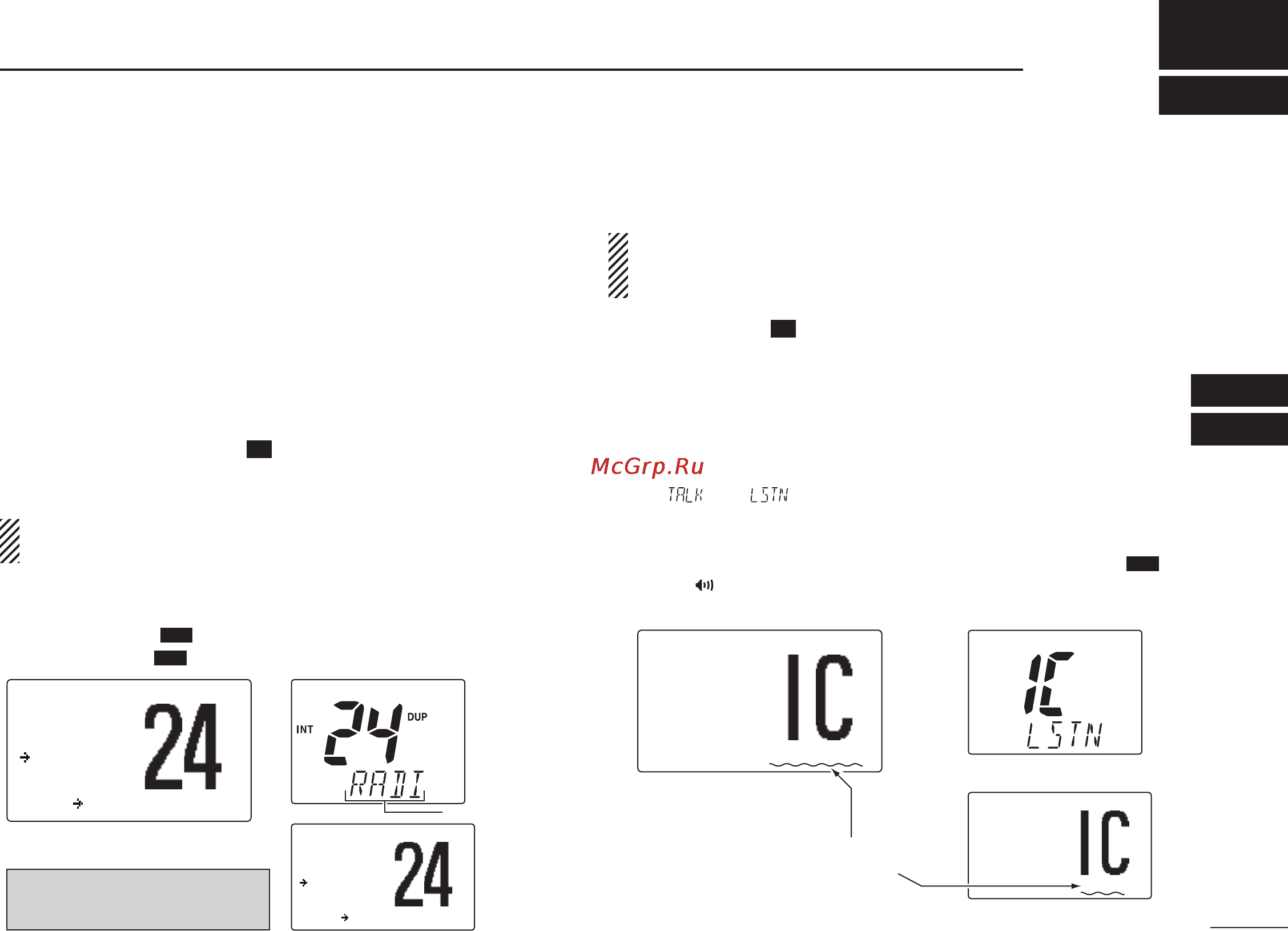

■ Intercom operation
The optional intercom function allows you to talk to the deck
from the cabin. The optional COMMANDMICII™ or COM-
MANDMICIII™ microphone, is required.
Connect the COMMANDMIC™ as described on page 50.
• Up to two COMMANDMIC™s can be simultaneously connected.
• Transmitting is impossible while using the intercom.
• The received signal is muted while using the intercom.
q Push [O], then push [9•
IC
] to enter the intercom mode.
• The COMMANDMIC™ power is automatically turned ON, even
if the power is OFF.
When the connected COMMANDMIC™ is one, step w
does not appear. Go to step e.
w Select the desired intercom party, transceiver
(RADIO) or
COMMANDMIC™
(INTERCOM), then push [ENT]*.
*
Push [LO/DX] (
IC
SCR) from the COMMANDMICII™ (HM-157).
Push [LO/DX•
IC
SCR] from the COMMANDMICIII™ (HM-162).
9
9
+06
+06
&72
&72
+06'4%1/
+06'4%1/
+06'4%1/
+06'4%1/
'061-
'061-
6'.'2*10'
6'.'2*10'
9
9
+06
+06
&72
&72
4#&+1
4#&+1
+06'4%1/
+06'4%1/
'061-
'061-
6'.'2*10'
6'.'2*10'
HM-157
Scrolls
IC-M604A
HM-162
Select within 5 seconds from
entering intercom mode.
NOTE: The COMMANDMIC™, connected to the [COM-
MAND MIC-1] connector, is recognized as ‘INTERCOM1,’
and the other side is ‘INTERCOM2.’
e Hold down [9•
IC
] for more than 1 second to sound the
intercom beep while holding.
• The transceiver and the COMMANDMIC™ second beeps.
r Hold down [PTT] and speak into the microphone at a nor-
mal voice level.
• “6#.-” or “.+56'0” appears on the caller or listener function
display, respectively.
* “ ” or “ ” appears on the HM-157.
• “9#+6” appears on the IC-M604A or HM-162 if it is idle.
• To adjust the IC-M604A’s speaker output level, rotate [VOL].
• To adjust the HM-157’s speaker output level, push [VOL•
DIM
PA/RX ], then push [Y] or [Z] on the HM-157.
•
To adjust the HM-162’s speaker output level, rotate [SELECTOR].
IC-M604A (caller)
HM-162 (listener)
+06'4%1/
+06'4%1/
6#.-
6#.-
+06'4%1/
+06'4%1/
+06'4%1/
+06'4%1/
.+56'0
.+56'0
4#&+1
4#&+1
HM-157 (listener)
The otherintercom party
is displayed here.
