Use a suitable adapter for connect-
ing the dust collector.
Make sure the dust extractor meets
the requirements specified in the
section 'Technical Data'.
Also follow the operating instruc-
tions supplied with the dust collec-
tor!

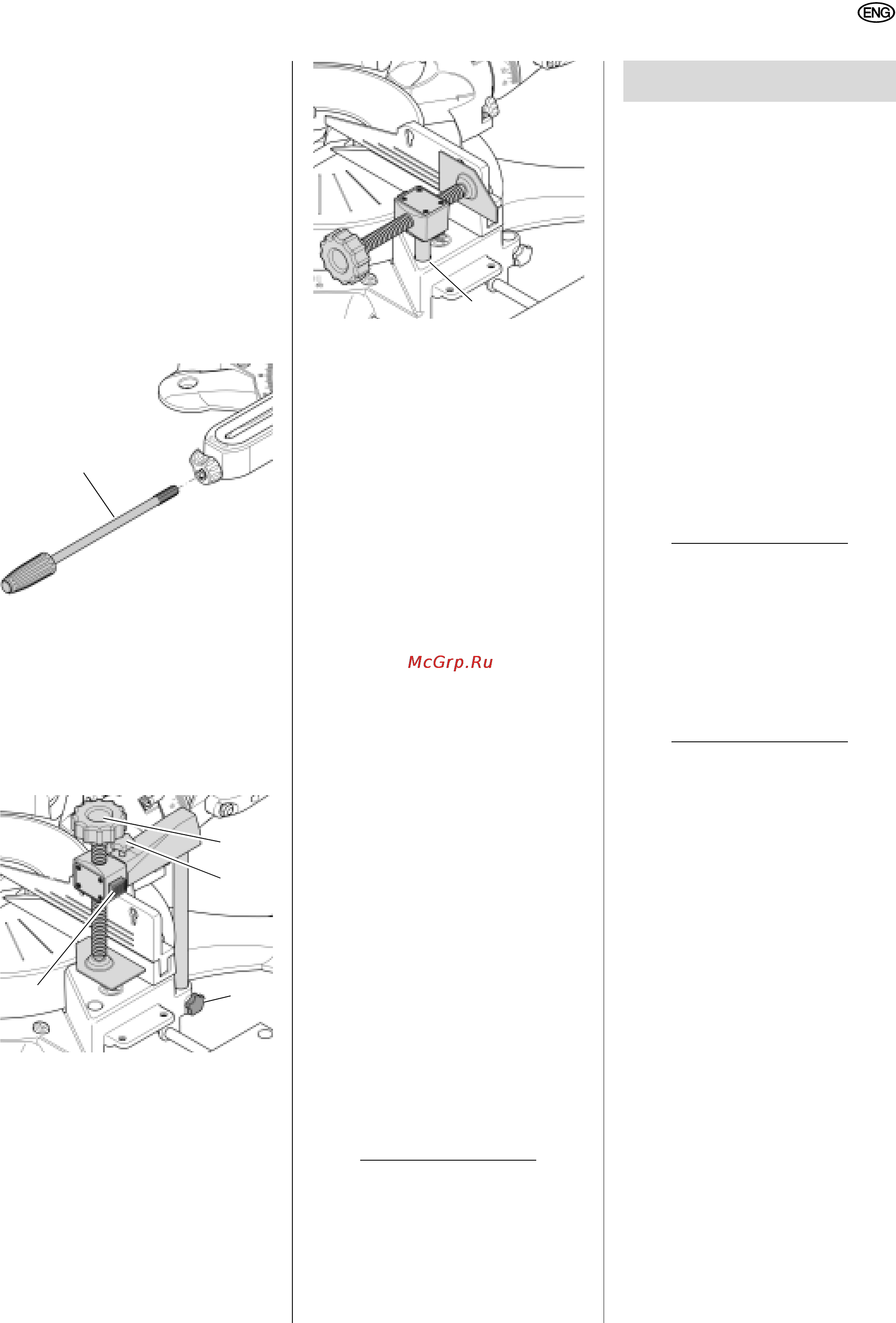

6.2 Mounting the rotary table
lock screw
Insert the lock screw (75) and turn
until tight.
6.3 Installing the work clamp
The work clamp can be installed in two
positions:
– For wide workpieces:
insert the work clamp into the rear
hole in the table and secure with the
lock bolt
(78)
:
– For narrow workpieces:
loosen the lock bolt (77) and insert
the front part of the wo
rk clamp into
the front hole (80) in the table:
Clamping the workpiece:
1. Press and hold down the button
(79) and slide the work clamp
against the workpiece.
2. Tighten the knob (76) to clamp the
workpiece.
6.4 Mains connection
BDanger! High voltage
Operate this device only in a dry en-
vironment.
Operate the saw only with a power
source matching the following re-
quirements (see also 'Technical Da-
ta'):
– mains voltage and system fre-
quency conform to the voltage
and frequency shown on the ma-
chine's nameplate;
– fuse protection by a residual cur-
rent operated device (RCD) of
3
0mA sensitivity;
– outlets properly installed, earthed
and tested.
Make sure that the mains cable is
out of the way so that it does not in-
terfere with the work and cannot be
d
amaged.
Protect mains cable from heat, ag-
gressive liquids and sharp edges.
Use only rubber cables of sufficient
cross section (3 × 1.5 mm
2
) as ex-
tension cables.
Do not pull on the power supply ca-
ble to unplug.
Before starting any work, check to
see that the safety devices are in
proper working order.
Use personal protective equipment.
Assume proper operating position:
– at the front of the saw;
– facing the saw;
– to the side of the line of the saw
bl
ade.
ADanger!
When sawing ensure that the work-
piece is always clamped with the work
clamp.
Never saw workpieces which can-
not be clamped with the work
cl
amp.
ARisk of crushing!
When tilting or swivelling the sawhead
do
not reach into the axis area of the
sawhead holder or under the machine!
Hold the sawhead securely when
tilting.
When working use the following:
– work support – for long stock,
wh
ich would otherwise fall off the
table on completion of the cut;
– dust extractor.
Cut only stock of dimensions that al-
low for safe and secure holding
wh
ile cutting.
Always hold the workpiece down on
the table and do not twist it. Do not
attempt to stop the saw blade by ex-
erting lateral pressure to it. Risk of
in
jury if the saw blade is blocked.
7.1 Using the laser guide
The laser guide is switched on and off
via the switch (81).
It projects a continuous red line at the
po
sition where the workpiece is cut by
the saw blade.
Carry out a few trial cuts to become
familiar with the functioning.
75
78
77
79
76
80
7. Operation
