ENGLISH
34
To keep the saw blade from turning
press the lock knob while at the
same time turning the saw blade by
hand until the blade lock engages.
ADanger!
– Do not extend arbor bolt spanner.
– Do not tighten arbor bolt by hitting
th
e assembly spanner.
14. Tighten the arbor bolt.
For version with tool-less clamping
module (98)
(please also see the illus-
trations at the end of these operating in-
structions)
:
13. Reset the clamping module. To do
th
is insert the threaded pin (102)
into the bore hole of the cutting
dep
th limiter and turn the hand-
wheel (101) clockwise until '0' (100)
is displayed.
14. Screw the clamping module on the
saw spindle. To do this, turn the
handwheel (left-hand thread!) until
the saw blade starts rotating as
well, stop the saw blade and tighten
the handwheel.
The display field d
isplay must
then be yellow.
ADanger!
The display field display must not be
re
d after attachment. If the display field
display is red:
Repeat steps 13 and 14.
Check the threaded pin and saw
spindle for damage.
Check the function:
15. Release the safety lock and fold the
sawhead down:
– The retractable blade guard must
expose
the saw blade without
touching the saw blade or any
other parts.
– When the sawhead is folded up
into
starting position the retracta-
ble blade guard must automati-
cally cover the saw blade.
– Turn the saw blade by hand. The
saw blade must turn freely in all
possible sawhead positions with-
out touching other parts.

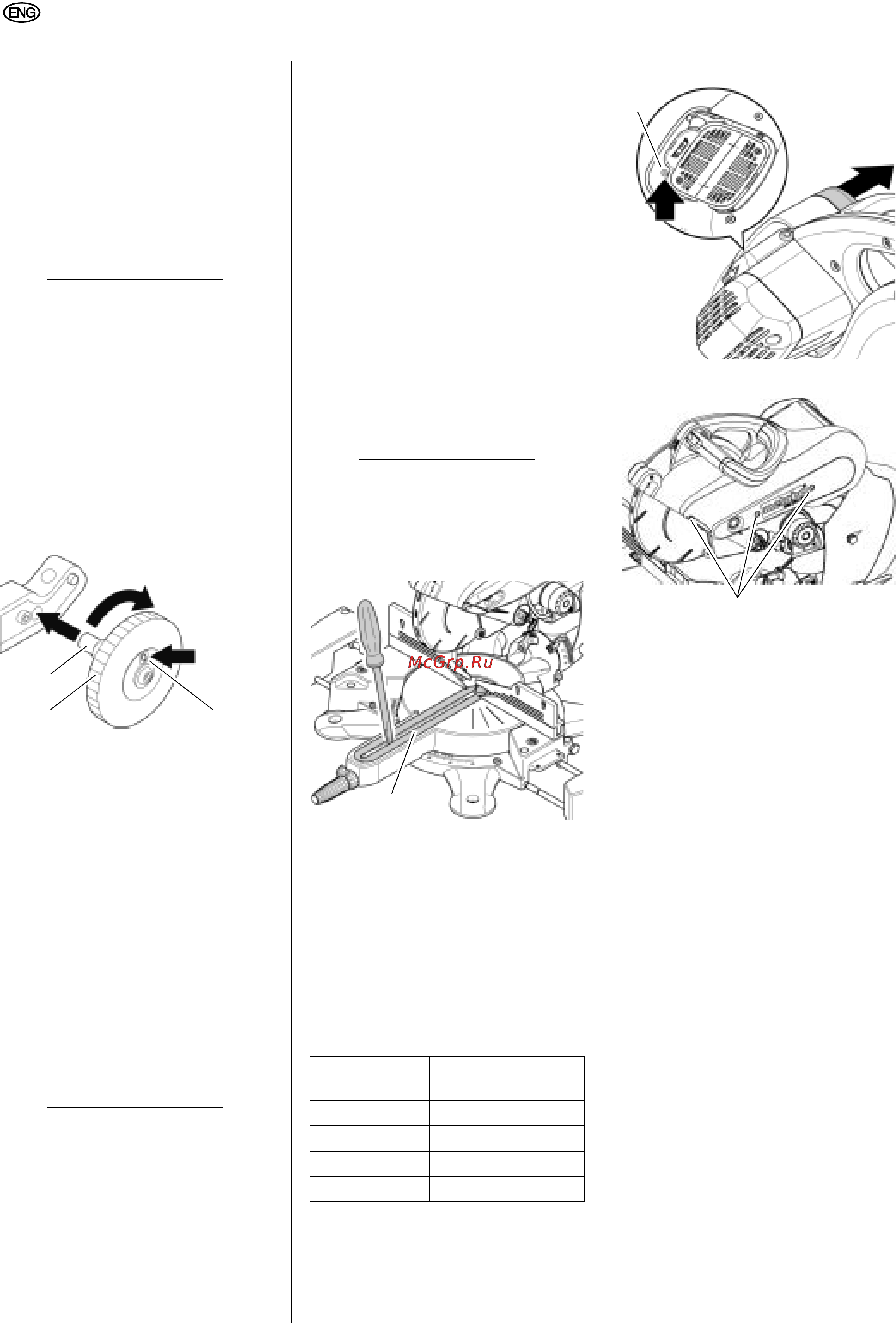

8.2 Replacing the table insert
ADanger!
If the table insert is damaged there is a
risk that
small parts may become stuck
between the table insert and the saw
blade, causing the saw blade to jam.
Replace damaged table inserts immedi-
ately!
1. Lever the table insert (103) up with
a screwdriver. Doing so will damage
the
table insert; it cannot be used
again.
2. Fit new table insert and let engage.
8.3 Drive belt tensioning
The drive belt, running on the right-
hand side of the sawhead behind a
plastic cover, needs to be re-tensioned
if it can be depressed more than the
amount given in the following table half-
way between the two pulleys.
To check, re-tension and change:
1. Unscrew screw(s) (104) and re-
move plastic cover.
KGS 216 / 254 / 315 Plus:
KGS 254 I Plus:
2. Check belt tension by thumb pres-
sure.
If the drive belt needs to be re-ten-
sioned or replaced:
– Loosen all hexagon socket
screws of
the motor mount by
approx. one turn.
– Re-tension or replace the drive
belt. To tighten slide the motor to
the rear.
– Tighten motor fastening screws
crosswise.
3. Replace the plastic cover and se-
cure with the screw.
3 Note:
KGS 216/254/315 Plus:
The additional toothed belt in the drive
is a wear part and must be replaced
upon failure. The toothed belt cannot
be retensioned.
8.4 Adjustments
Adjusting the rotary table
1. Snap the rotary table into the 0° po-
sition and lock it in place with the
lo
ck screw.
2. Unscrew the screw (105) two revo-
lutions.
102
100101
Amount of depres-
sion (mm)
KGS 216 Plus 9
KGS 254 Plus 9
KGS 315 Plus 12
KGS 254 I Plus 23
103
104
104
