SiBE12-712C Instruction
Operation Manual 141

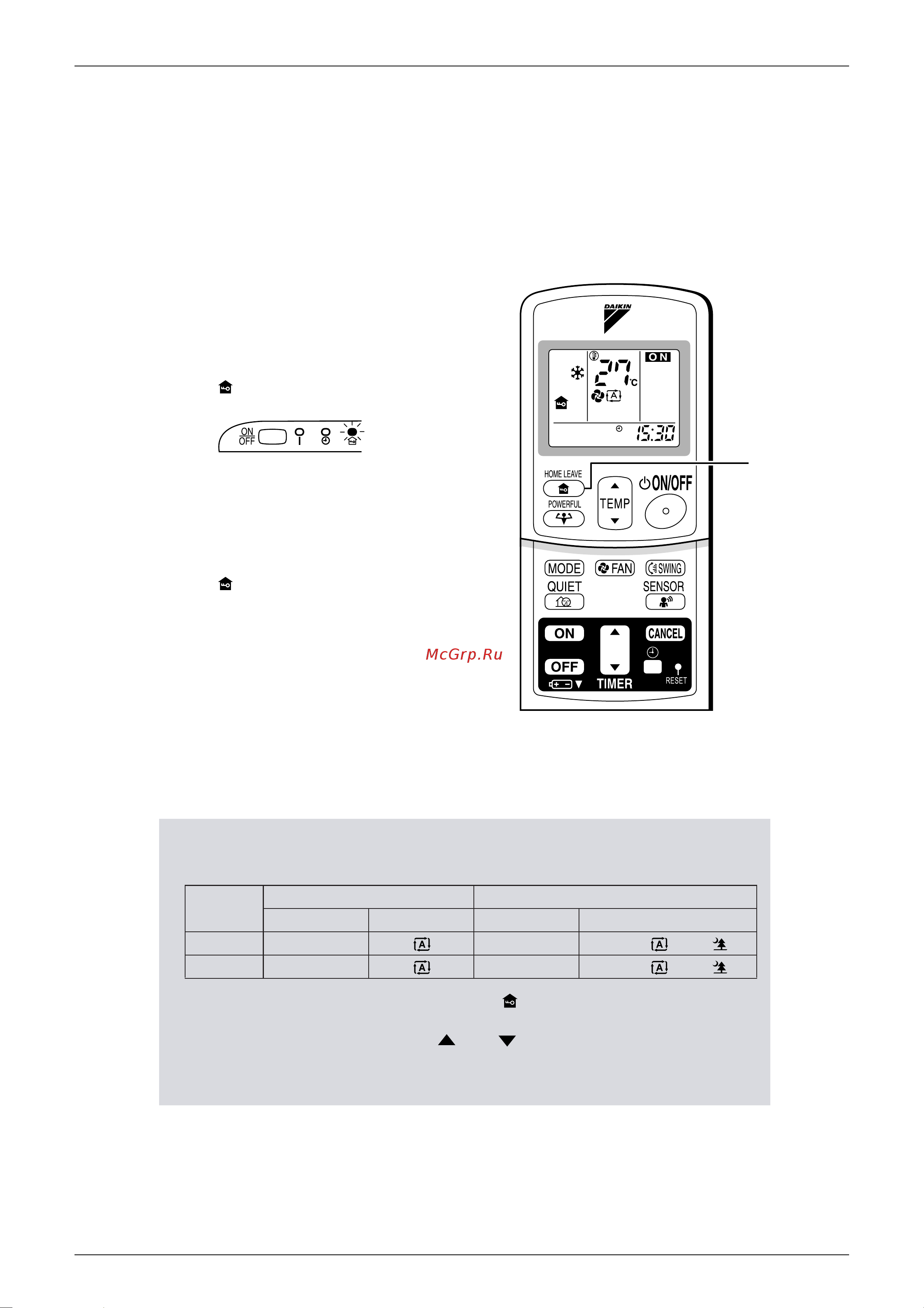

2.1.10 HOME LEAVE Operation
HOME LEAVE Operation
HOME LEAVE operation is a function which allows you to
record your preferred temperature and airflow rate settings.
To start HOME LEAVE
operation
1. Press “HOME LEAVE button” .
• “ ” is displayed on the LCD.
• The HOME LEAVE lamp lights up.
To cancel HOME LEAVE
operation
2. Press “HOME LEAVE button” again.
• “ ” disappears from the LCD.
• The HOME LEAVE lamp goes off.
Before using HOME LEAVE operation.
To set the temperature and airflow rate for HOME LEAVE operation
When using HOME LEAVE operation for the first time, please set the temperature and air flow rate
for HOME LEAVE operation. Record your preferred temperature and air flow rate.
1. Press “HOME LEAVE button”. Make sure “ ”is displayed in the remote control-
ler display.
2. Adjust the set temperature with “ ” or “ ” as you like.
3. Adjust the air flow rate with “FAN” setting button as you like.
Home leave operation will run with these settings the next time you use the unit. To change
the recorded information, repeat steps 1 – 3.
1, 2
Initial setting Selectable range
temperature Air flow rate temperature Airflow rate
Cooling 25
°
C
“”
18-32
°
C
5 step, “ ” and “ ”
Heating 25
°
C
“”
10-30
°
C
5 step, “ ” and “ ”
