Instruction SiBE12-712C
188 Operation Manual
20

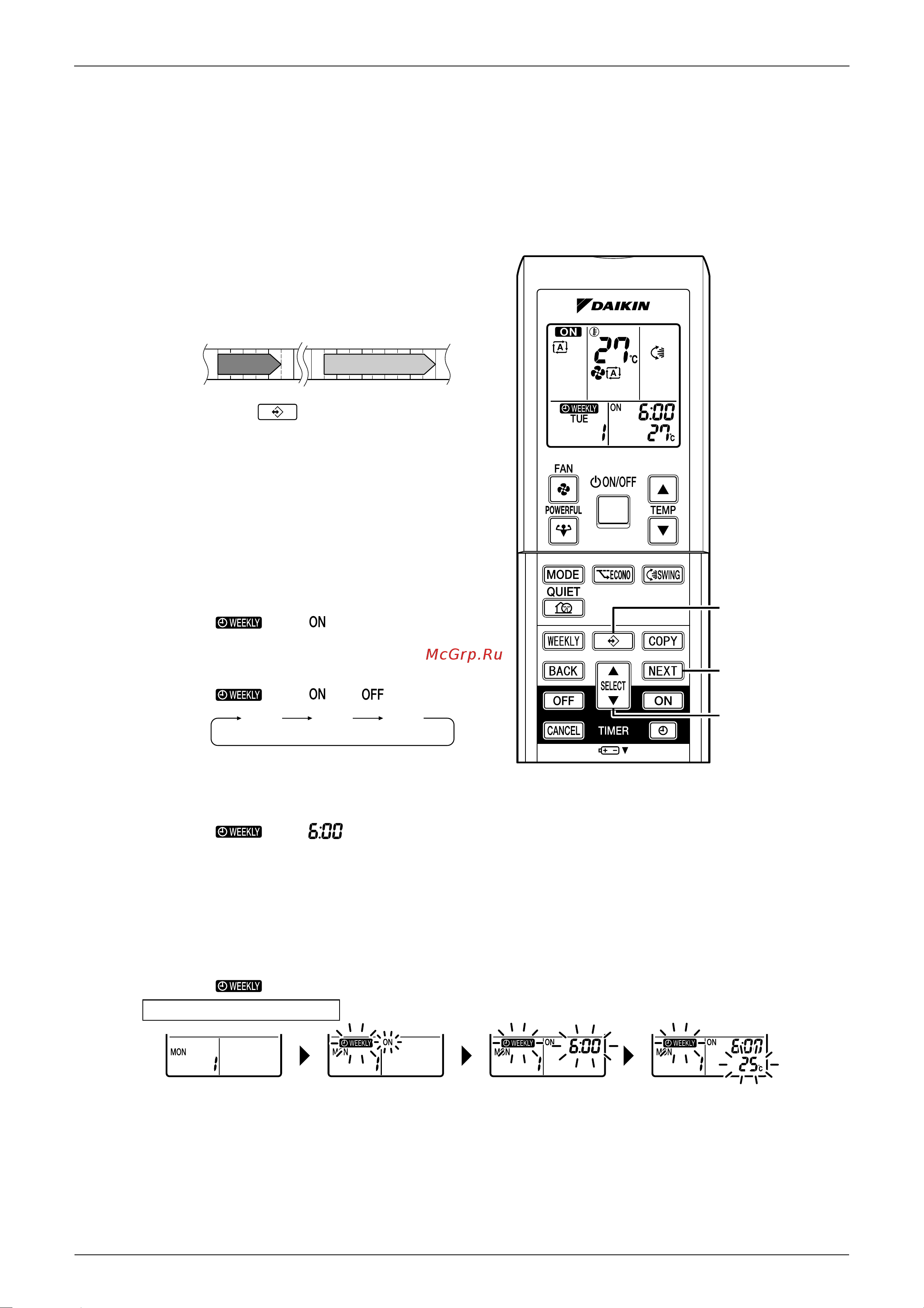

WEEKLY TIMER Operation
To use WEEKLY TIMER operation
•
Make sure the day of the week and time are set.
If not, set the day of the week and time. (page 8.)
1. Press “ button”.
• The day of the week and the reservation
number will be displayed.
• 1 to 4 settings can be made per day.
2.
Press the “SELECT button” to select the desired
day of the week and reservation number.
•
Pressing the “SELECT button” changes the
reservation number and the day of the week.
3. Press “NEXT button”.
• The day of the week will be set.
• “ ” and “ ” blink.
4. Press “SELECT button” to
select the desired mode.
• “ ” and “ ” or “ ” will flash.
• Go to STEP
9
if “no setting” is selected.
5. Press “NEXT button”.
• The weekly mode will be set.
• “ ” and “ ” blink.
6. Press “SELECT button” to select the desired time.
• The time can be set between 0:00 and 23:50 in 10 minute intervals.
• Press “BACK button” to return to the mode setting.
• Go to STEP
9
if “OFF” is selected at STEP
4
.
7. Press “NEXT button”.
• The time will be set.
• “ ” and the temperature blink.
3, 5, 7
1
2, 4, 6
6:00 8:30 17:30 22:00
25˚C 27˚C
Program 1 Program 2 Program 3 Program 4
ON OFF ON OFF
[Monday]
ON OFF Blank
ON TIMER OFF TIMER no setting
Respective Setting Screens
Day and number settings
ON/OFF settings Time settings Temperature settings
