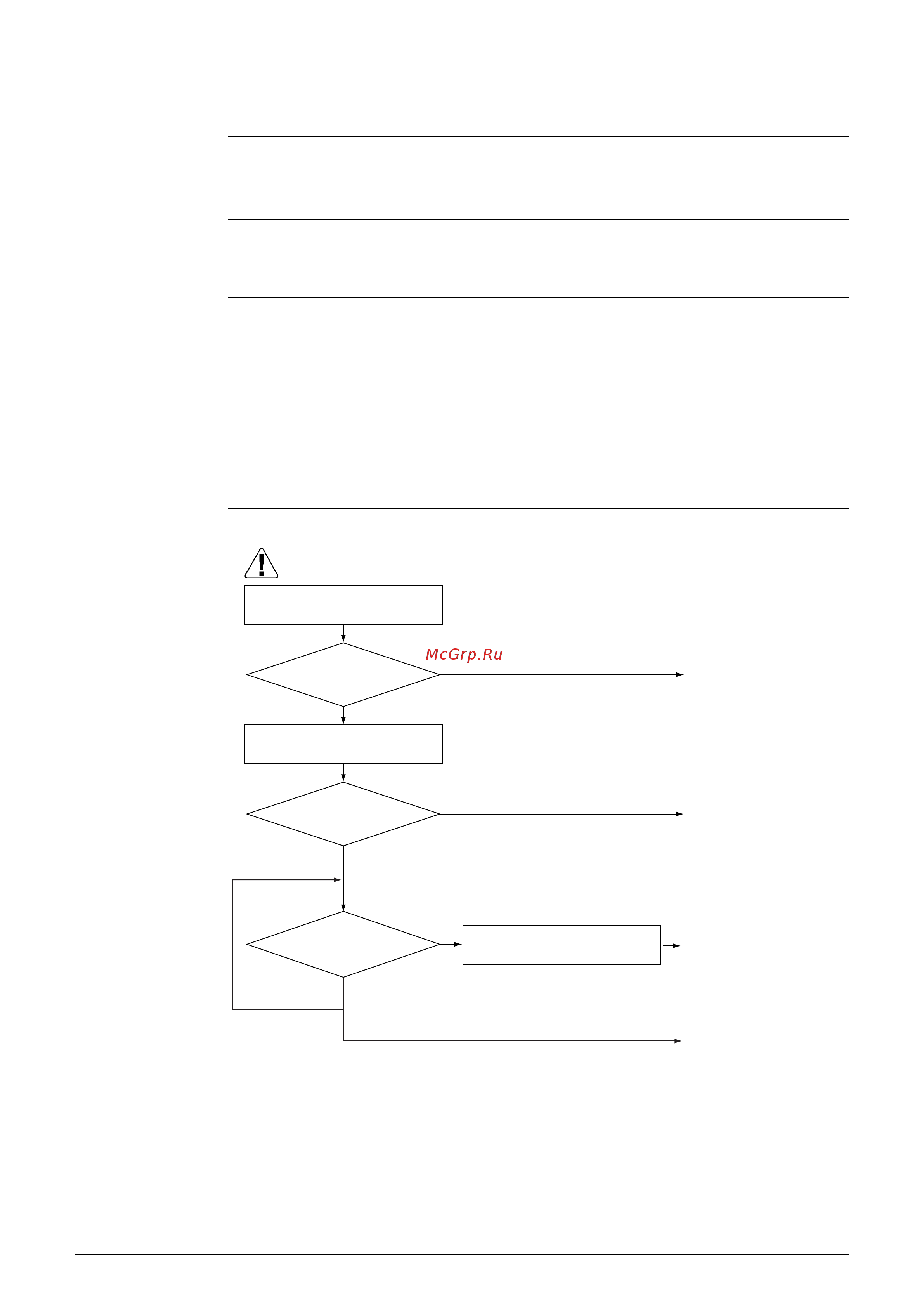

Troubleshooting SiBE12-712C
240 Service Diagnosis
4.22 Over-voltage Detection / Low-voltage Detection
Remote
Controller
Display
U2
Method of
Malfunction
Detection
An abnormal voltage rise (or drop) is detected by checking the detection circuit or DC voltage
detection circuit.
Malfunction
Decision
Conditions
An over-voltage signal is fed from the over-voltage detection circuit to the microcomputer, or
the voltage being detected by the DC voltage detection circuit is judged to be below 150V for
0.1 second.
The system will be shut down if the error occurs 255 times.
Clearing condition: Continuous run for about 60 minutes (normal)
Supposed
Causes
Supply voltage not as specified
Over-voltage detector or DC voltage detection circuit defective
PAM control part(s) defective
Short circuit inside the fan motor winding.
Troubleshooting
Correct the power supply.
Replace the outdoor unit
PCB.
Check for such factors for a
long term.
∗ Try to get restarted a
couple of times.
(R7150)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
NO
YES
YES
NO
YES
(Precaution before turning on the power again)
NO
Replace fan motor and
outdoor unit PCB.
Check the supply voltage.
Rotate fan by hand.
Disturbance factors
∗ Noise ∗ Power supply distortion
Repeat a
couple of times.
Make sure the power has been off for
at least 30 seconds.
Turn on the
power again. System
restarted?
Does fan rotate
smoothly?
Supply voltage as
specified?
