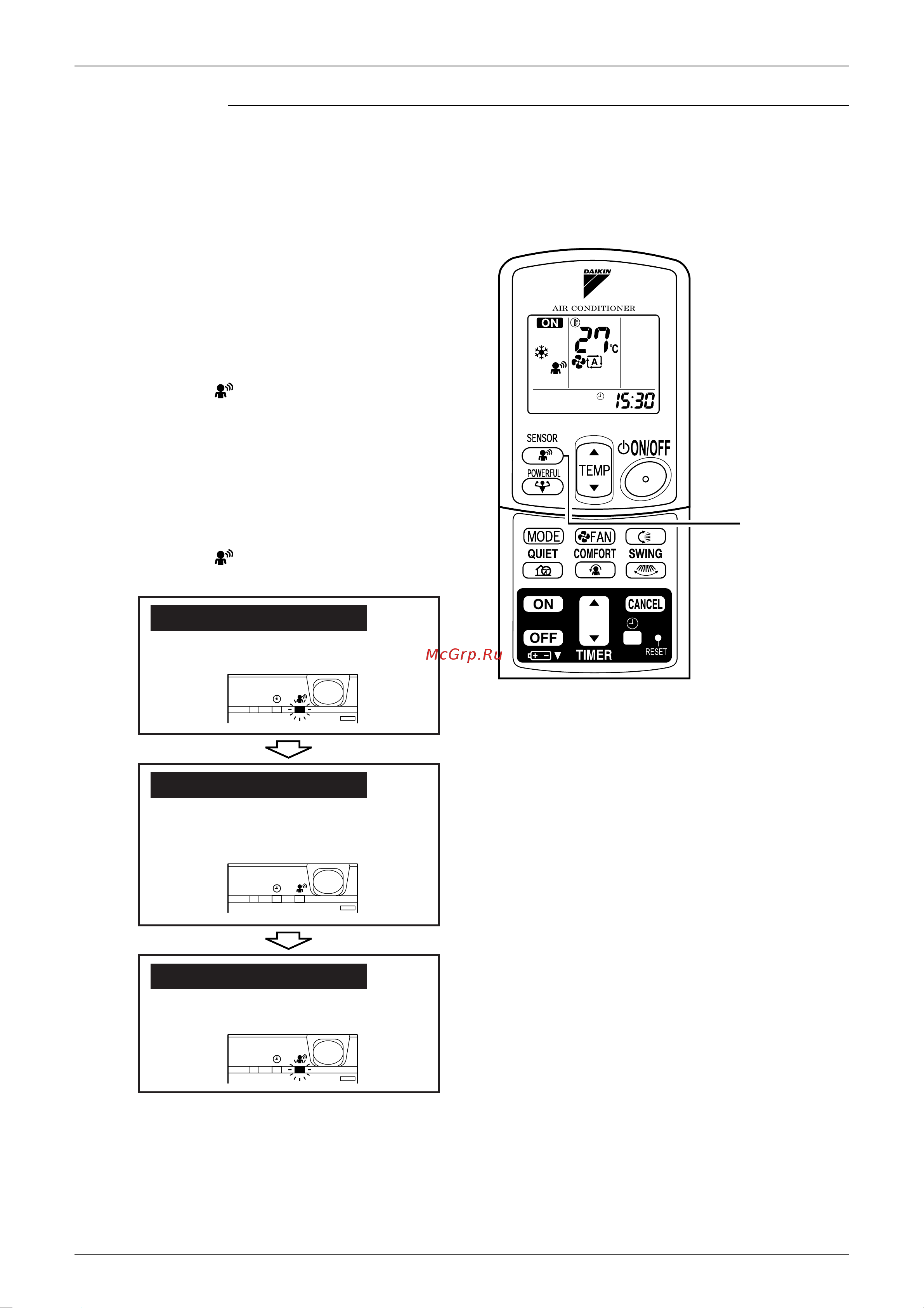

SiBE12-712C Instruction
Operation Manual 147
FTXG 25/35 E, CTXG 50 E, ATXG 25-50 E
INTELLIGENT EYE Operation
“INTELLIGENT EYE” is the infrared sensor which
detects the human movement.
To start INTELLIGENT
EYE operation
1. Press “SENSOR button”.
• “ ” is displayed on the LCD.
To cancel the
INTELLIGENT EYE
operation
2. Press “SENSOR button” again.
• “ ” disappears from the LCD.
[EX.]
1, 2
When somebody in the room
•
Normal operation.
•
The INTELLIGENT EYE lamp lights up.
When somebody in the room
•
20 min. after, start
energy saving
operation
.
•
The INTELLIGENT EYE lamp goes off.
Somebody back in the room
•
Back to normal operation.
•
The INTELLIGENT EYE lamp lights up.
