SiBE12-712C Check
Service Diagnosis 251

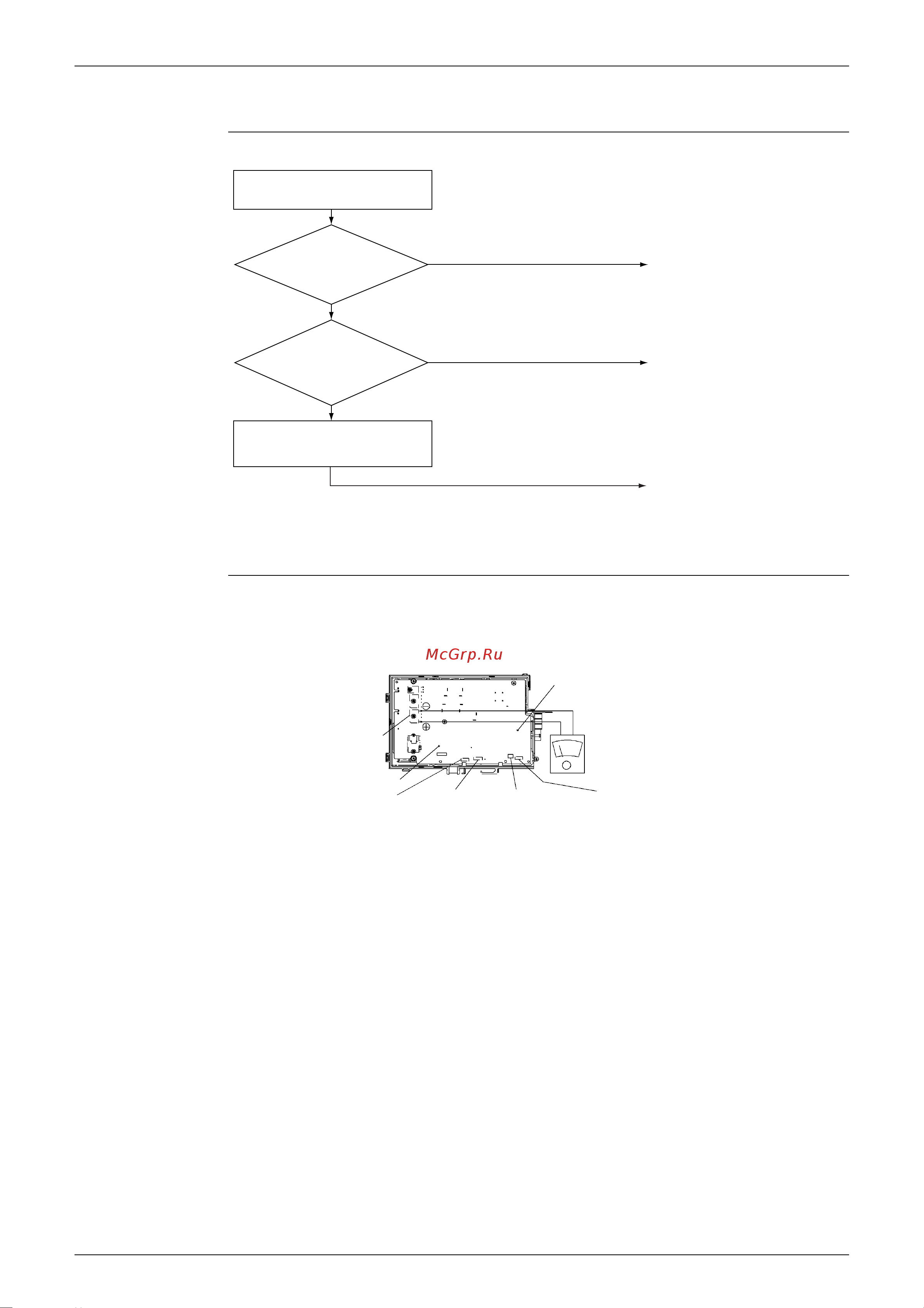

5.1.10 Inverter Units Refrigerant System Check
Check No.11
5.1.11 Capacitor Voltage Check
Check No.12 Before this checking, be sure to check the main circuit for short-circuit.
Checking the capacitor voltage
z
With the circuit breaker still on, measure the voltage according to the drawing. Be careful
never to touch any live parts.
Refrigerant system check
Check for gas leaks.
See the section on insufficient gas
detection.
(R8441)
YES
YES
NO
NO
Correct the problem.
Replace the refrigerant.
Four way valve defective.
Replace the four way valve.
Is
the discharge
thermistor disconnected
from the holder?
Is the
temperature of
the four way valve suction
pipe abnormaly
high?
DB1
LED A
LED5
S90
Thermistor
lead wire
S70
Fan motor
lead wire
S80
Four way valve
lead wire
S20
Electronic
expansion
valve coil
Multi meter
(DC. voltage
range)
(R6027)
