SiBE12-712C Outdoor Unit
Removal Procedure 273

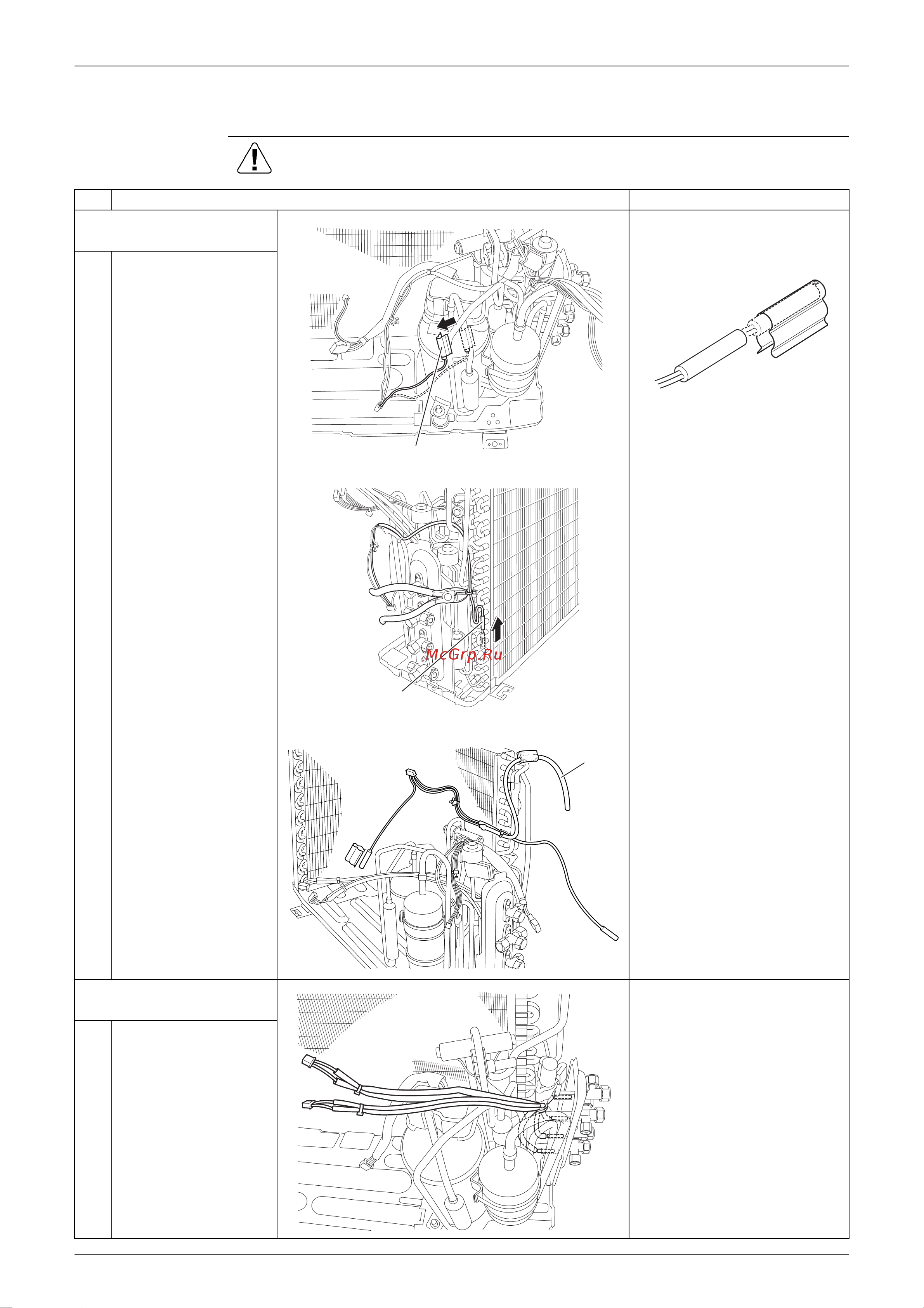

1.6 Removal of the Thermistors
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Remove the assembly of
thermistor
Be careful not to lose the clip
for the discharge pipe
thermistor.
1
Undo the clip and
remove the discharge
pipe thermistor.
2
Cut off the clamp to
remove the heat
exchanger thermistor.
The clamp is always
reserved.
Be careful not to lose the
clips for each thermistor.
3
The outdoor air /
discharge pipe / heat
exchanger thermistors
are united as one
assembly.
4
The figure shows the
arrangement of the
assembly of thermistor
[S90].
2. Remove the liquid / gas
pipe thermistor
1
Remove the liquid / gas
pipe thermistor.
(R7630)
Discharge pipe thermistor
(R7702)
(R7631)
Heat exchanger
thermistor
(R7632)
Outdoor air
thermistor
(R7633)
