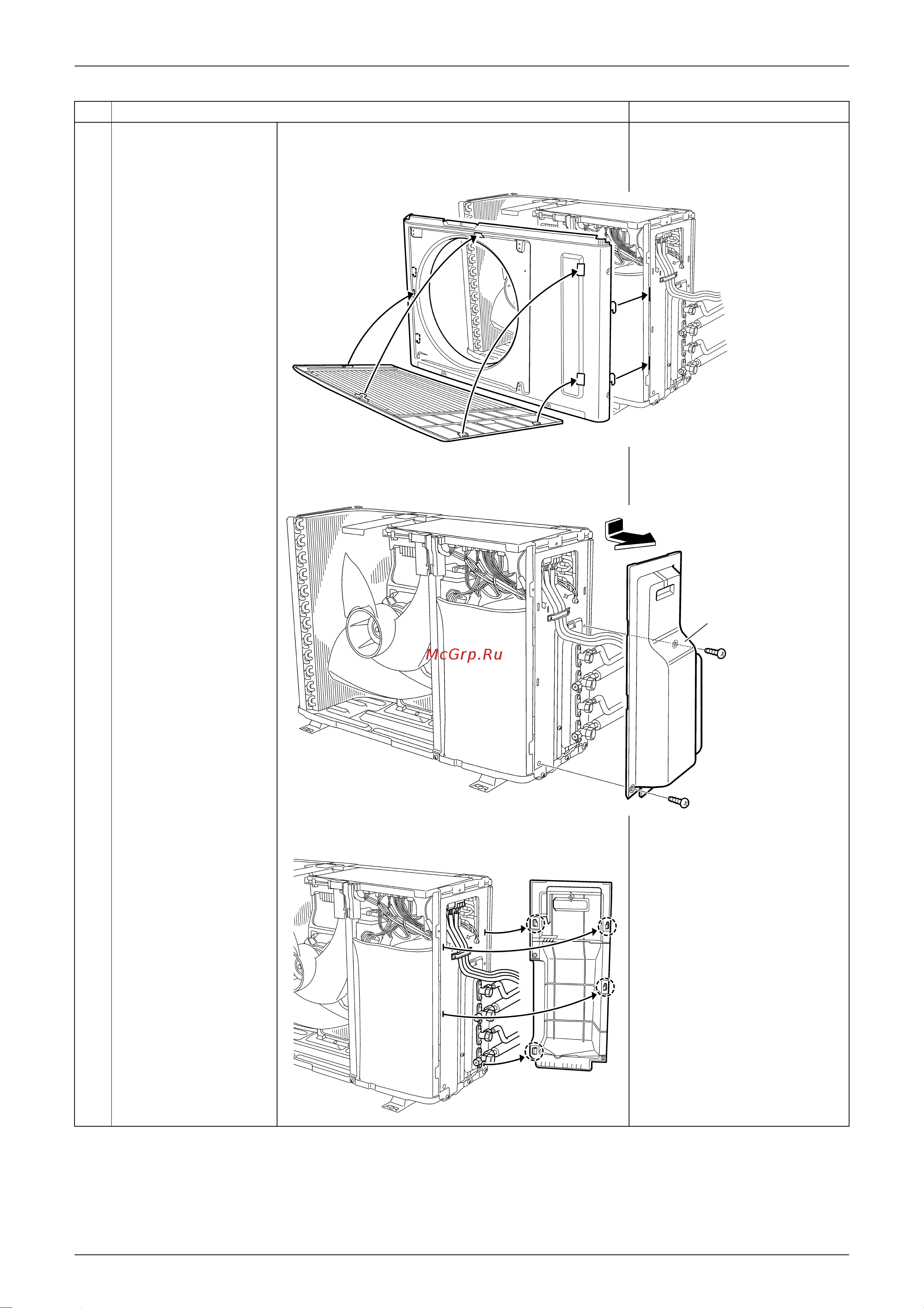

SiBE12-712C Outdoor Unit
Removal Procedure 257
3
Loosen the 4 screws
and remove the
discharge grille.
When reassembling, make
sure to fit the 4 hooks.
4
Loosen the 2 screws of
the stop valve cover
and remove it.
The stop valve cover is
united with the shelter.
When assembling the stop
valve cover, make sure to fit
the 4 hooks.
Step
Procedure Points
(R7700)
Stop
valve
cover
(R7699)
(R7701)
