ESIE09-08B Specifications
Appendix 215
EKHBRD 011/014/016 AD (U1/Y1)
Legend
Remark
The ESP curves graph is valid at maximum pump rpm (rotations per minute). The pump of the indoor module is
inverter controlled and will adjust its rpm as to control a fixed T between return leaving water temperature.
Warning
Selecting a flow outside the curve can cause damage to or malfunction of the unit. See also minimum and
maximum allowed water flowrange.
3DO97345
14kW
16kW
11kW
14kW
16kW
11kW
.

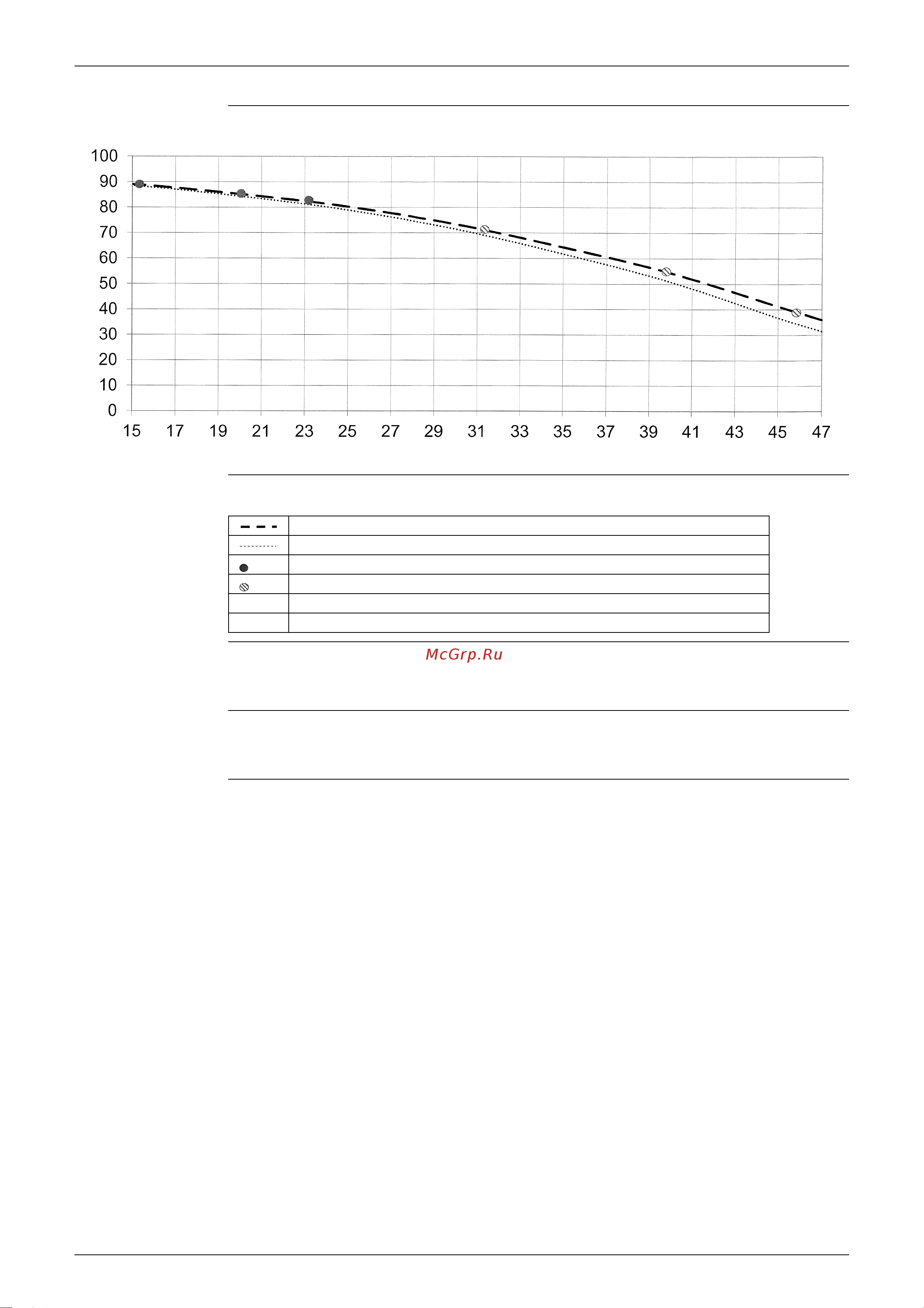

Unit ESP without 3-way valve
.
Unit ESP including 3-way valve
.
Max. ESP if T = 10°C
.
Max. ESP if T = 5°C
ESP [kPa]
External static pressure (kPa)
Flow [l/min]
Flow (l/min)
