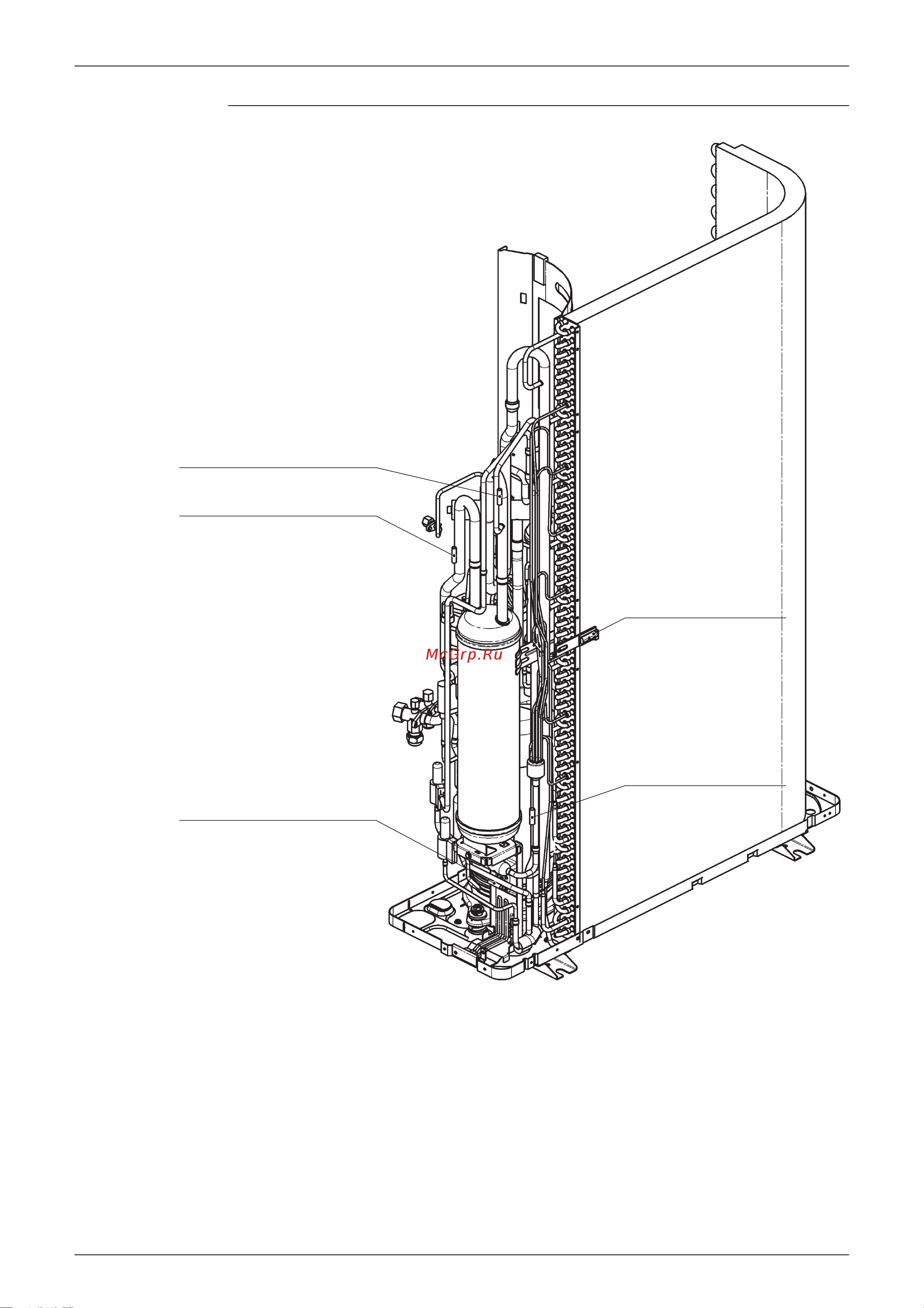

ESIE09-08B Functional Parts Layout
Refrigerant Circuit 17
Back view
R3T
R6T
Suction thermistor
R1T
Ambient thermistor
R8T
Liquid pipe thermistor
Subcool gas pipe thermistor
R7T Liquid pipe thermistor
