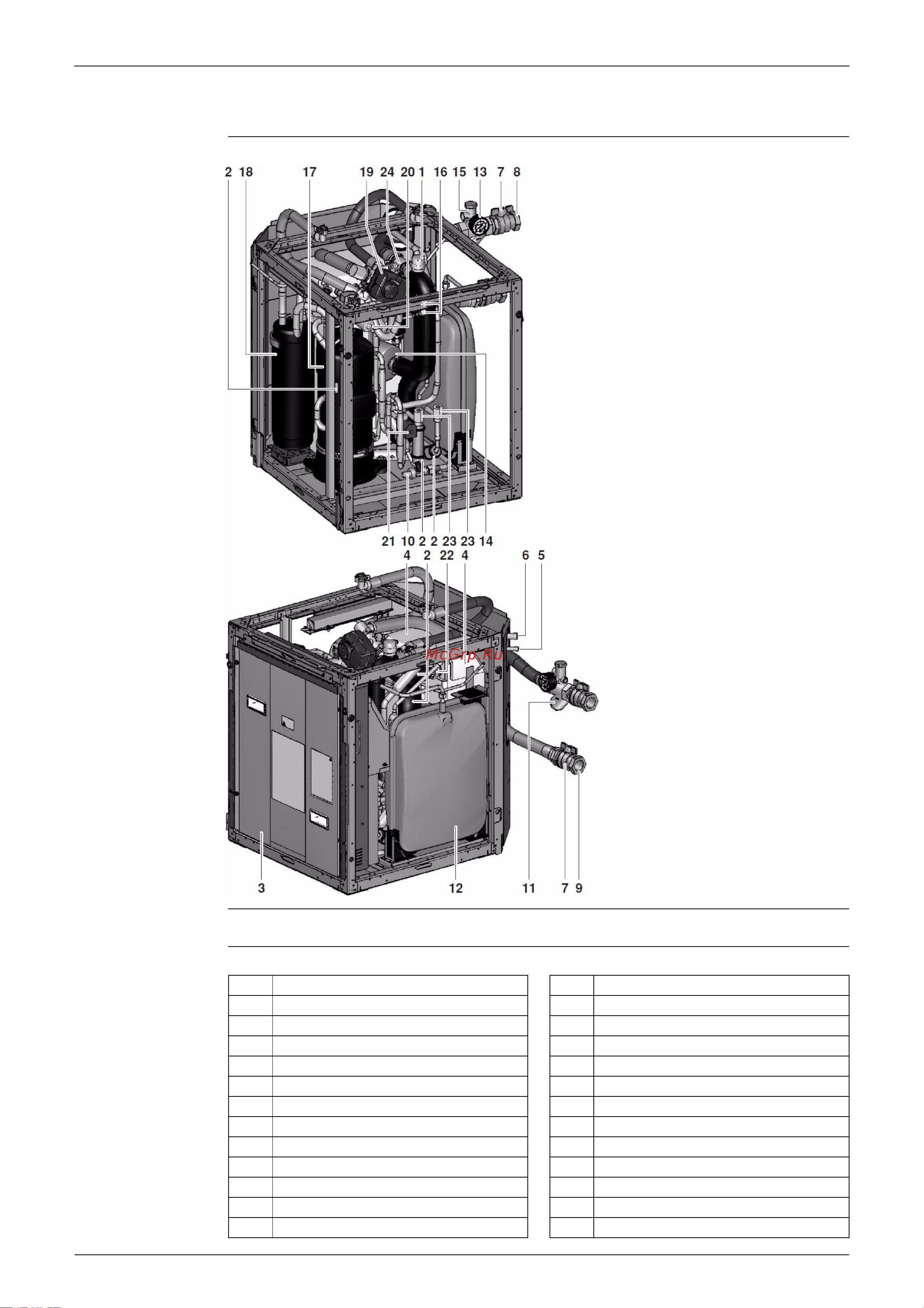

Functional Parts Layout ESIE09-08B
20 Refrigerant Circuit
2.4 EKHBRD 011/014/016 AB/AC(V1/Y1)
Overview
Legend
No. Name No. Name
1 Air purge valve 13 Manometer
2 Thermistors 14 Pump
3 Switchbox 15 Pressure relieve valve
4 Heat exchangers 16 Service ports R134a
5 Refrigerant liquid connection R410A 17 Compressor R-134a
6 Refrigerant gas connection R410A 18 Accumulator
7 Shut-off valves 19 3-way valve (option, with EKHTS tank))
8 Water inlet connection 20 4-way valve
9 Water outlet connection 21 2-way valve
10 Drain valve 22 Thermal cut-out
11 Water filter 23 Electronic expansion valve
12 Expansion vessel (12l) 24 T-piece (option, with EKHTS tank)
