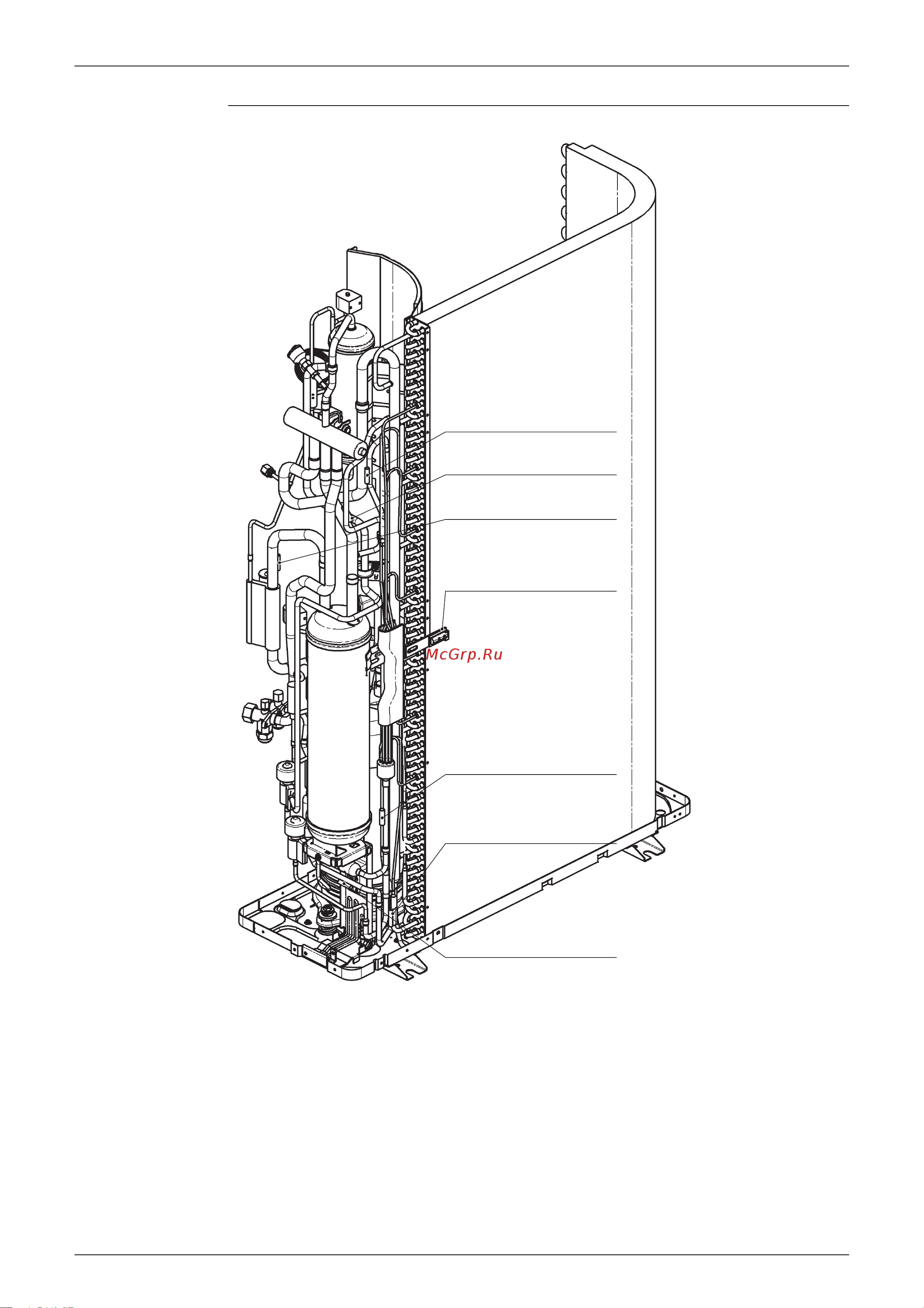

ESIE09-08B Functional Parts Layout
Refrigerant Circuit 15
Back view
R6T
Subcool thermistor
R3T
Suction 1 thermistor
R8T
Liquid pipe 2 thermistor
R4T
Coil thermistor
R7T
Liquid pipe 1 thermistor
R1T
Ambient thermistor
R5T
Suction 2 thermistor
