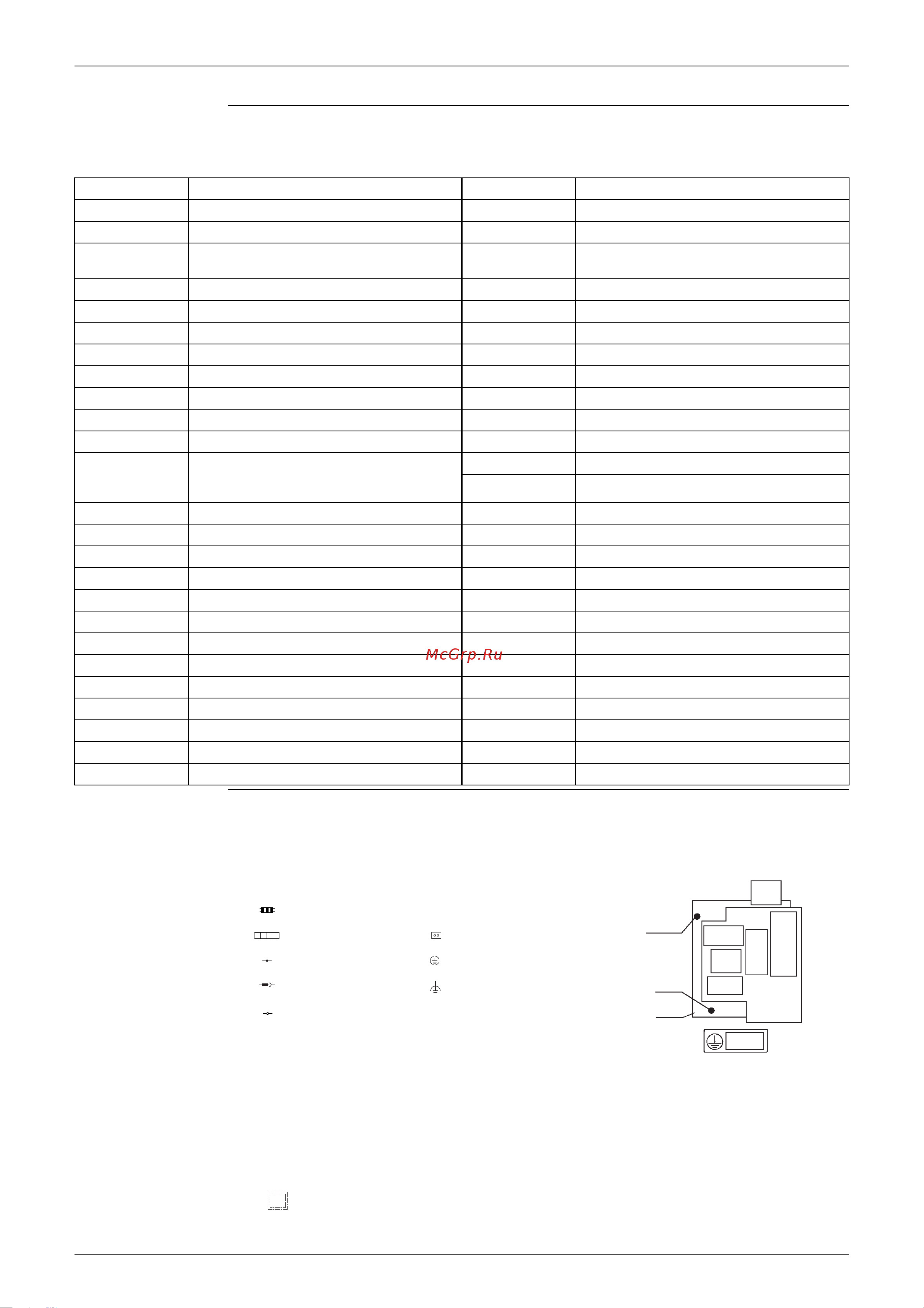

ESIE09-08B Wiring Diagrams
Appendix 223
Legend
Notes
A1P Printed circuit board (main) Q1DI Field earth leakage breaker (300 mA)
A2P Printed circuit board (service) R1 Resistor
A3P Printed circuit board (noise filter) R2 Resistor
BS1~BS5 Push button switch (mode, set, return, t
est,
reset)
R1T Thermistor (air)
C1~C4 Capacitor R2T Thermistor (discharge)
DS1 Dip switch R3T Thermistor (suction 1)
E1HC Crankcase heater R4T Thermistor (heat exchanger)
E7H Bottom plate heater R5T Thermistor (suction 2)
F1U, F4U Fuse (T 6.3A / 250V) R6T Thermistor (subcooling h. ex)
F6U Fuse (T 5.0A / 250V) R7T Thermistor (liquid pipe 1)
F7U, F8U Fuse (F 1.0A / 250V) R8T Thermistor (liquid pipe 2)
FINTH Thermistor (fin) S1NPH Pressure sensor (high)
H1P~H8P Light emit. diode (serv. monitor-orange)
[H2P] prepare. test --------- flickering
malfunction detection -- light up
S1NPL Pressure sensor (low)
S1PH Pressure switch (high)
HAP Light emitting diode V1R Power module
(A1P) (service monitor green) V2R, V3R Diode module
K1M Magnetic contactor (M1C) V1T IGBT
K1R Magnetic relay (Y1S) X1M Terminal strip (power supply)
K2R Magnetic relay (Y2S) X2M Terminal strip (control)
K3R Magnetic relay (Y3S) X1M Terminal strip (C/H selec
t
or) (A4P)
K4R Magnetic relay (E1HC) Y1E Electronic expansion valve (main)
K5R Magnetic relay Y3E Electronic expansion valve (subcool)
L1R Reactor Y1S Solenoid valve (4 way valve)
M1C Motor (compressor) Y2S Solenoid valve (hot gas)
M1F Motor (fan) (upper) Y3S Solenoid valve (U/L circuit)
M2F Motor (fan) (lower) Z1C~Z8C Noise filter (ferrity core)
PS Switching power supply Z1F~Z4F Noise filter
1 This wiring diagram only applies to the outdoor unit
2 L: live, N: neutral
Field wiring
3
Terminal strip Connector
Connection Protective earth (screw)
Relay connector Noiseless earth
Terminal
4 Refer to the “Wiring diagram sticker” (on back of front plate)
on ho
w to use BS1~BS5 and DS1, DS2 switch
5 Do not operate the unit by short-circu
iting protection device
S1PH
6 Colors: BLU = Blue, BRN = Brown, GRN = Green, RED =
Red,
WHT = White, YLW = Yellow, ORG = Orange
7 Refer to the installation manual, for connection wiring to
indoor -
outdoor transmission F1-F2
8
Option
L1R
A3P
C4
A2P
A4P
X37A
COMPONENT
LOCATION
HAP
A1P
(BACK)
(FRONT)
X2M
X1M
