Yamaha 25 NMHOS [103/245] 8 7 6 5 4 3 2 1
![Yamaha 25 NMHOS [103/245] 8 7 6 5 4 3 2 1](/views2/1821604/page103/bg67.png)
69R3J11
5-10
9
8
7
6
5
4
3
2
1

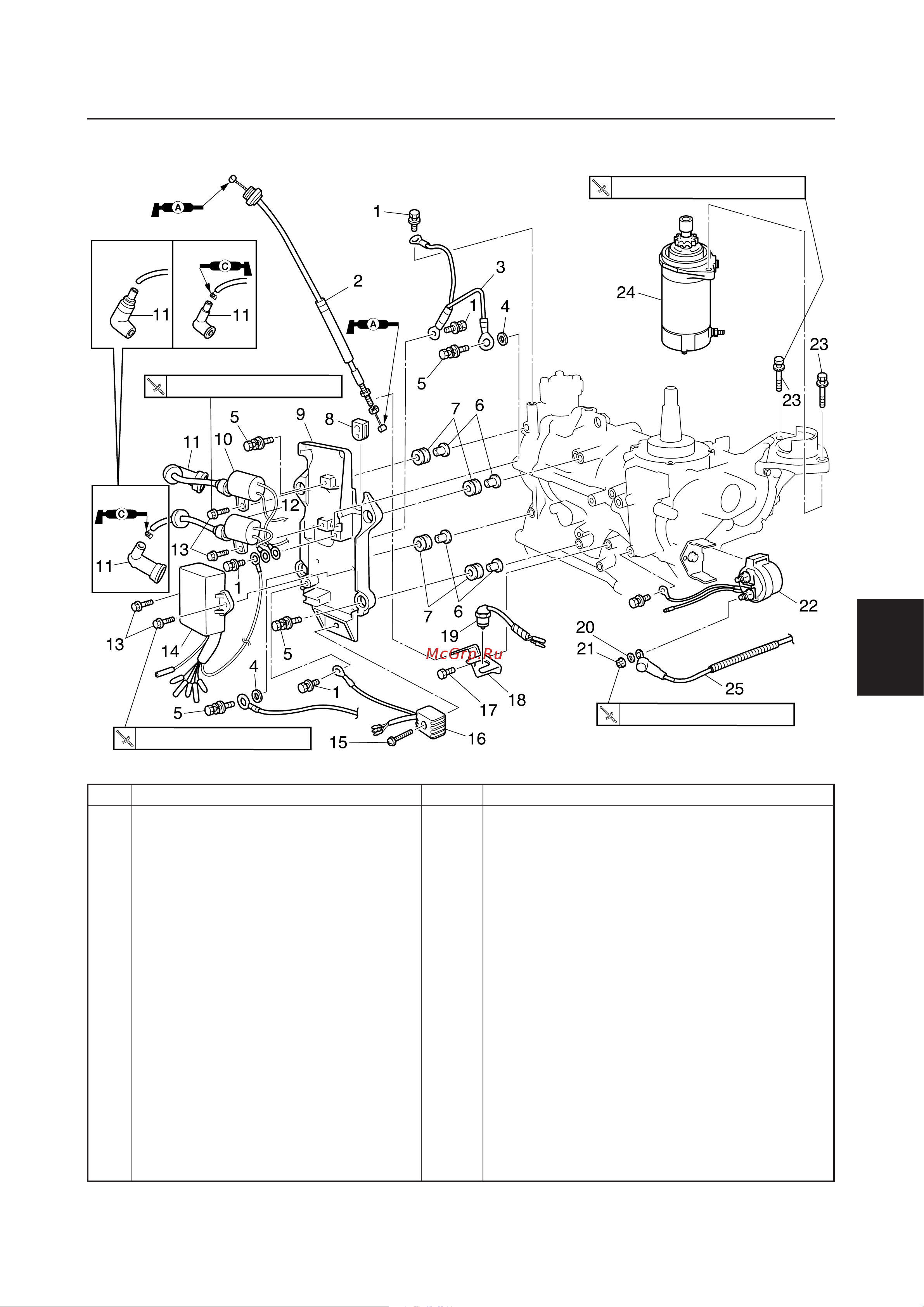

Power unit
69R5040E
8 N·m (0.8 kgf·m, 5.8 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
21 N·m (2.1 kgf·m, 15.5 ft·lb)
WMH
WH
No. Part name Q’ty Remarks
1 Bolt 4 M6 × 12 mm
2 Start-in-gear protection cable 1
3 Ground lead 1
4 Washer 2
5 Bolt 4 M6 × 30 mm
6 Collar 4
7 Damper 4
8 Grommet 1
9 Bracket 1
10 Ignition coil #1 1
11 Spark plug cap 2
12 Ignition coil #2 1
13 Bolt 4 M6 × 20 mm
14 CDI unit assembly 1
15 Screw 1 ø5 × 25 mm
16 Rectifier 1 WH, W, WC
17 Bolt 1 M6 × 10 mm
