BRKT
7-3
69R3J11
Bracket unit

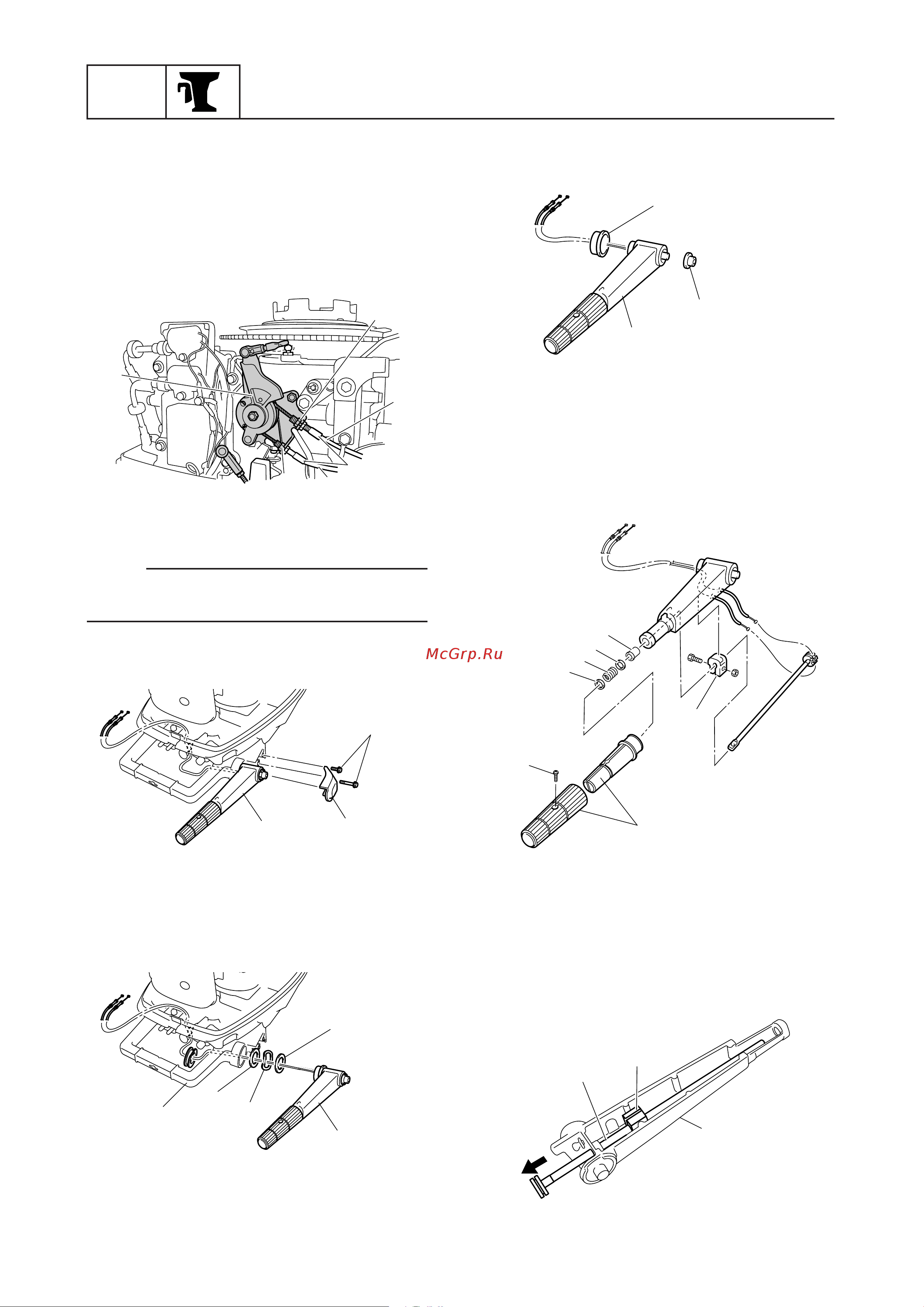

Disassembling the tiller handle
1. Remove the throttle cam 1 from power
unit.
2. Loosen the locknuts 2, and then discon-
nect the throttle cables 3 from throttle
cam 1.
a Accelate
b Decelate
NOTE:
Mark the throttle cable identification a and b
before disconnect the throttle cables.
3. Remove the bolts 4, and then remove
the cover 5 from tiller handle 6.
4. Remove the tiller handle 6, washer 7,
wave washer 8 and washer 9 from
steering bracket 0.
5. Remove the bushing q and busing w
from tiller handle 6.
6. Remove the screw e, and then remove
the throttle grip with rubber gripe r.
7. Loosen the friction piece t, washer y,
spring u, washer y and bushing i.
8. Remove the throttle cables.
9. Remove the throttle shaft o from the
tiller handle 6, and then remove the fric-
tion piece t.
69R70710
2
3
1
2
a
b
69R70730
4
5
6
69R70740
7
6
9
8
0
69R70750
q
w
6
69R70640
t
r
y
u
y
i
e
69R70670
o
6
t
