69R3J11
6-28
9
8
7
6
5
4
3
2
1
NOTE:
While turning the drive shaft clockwise 5–6
times so that the forward gear taper roller
bearing is seated evenly tighten the center
bolt 3 to specified torque.

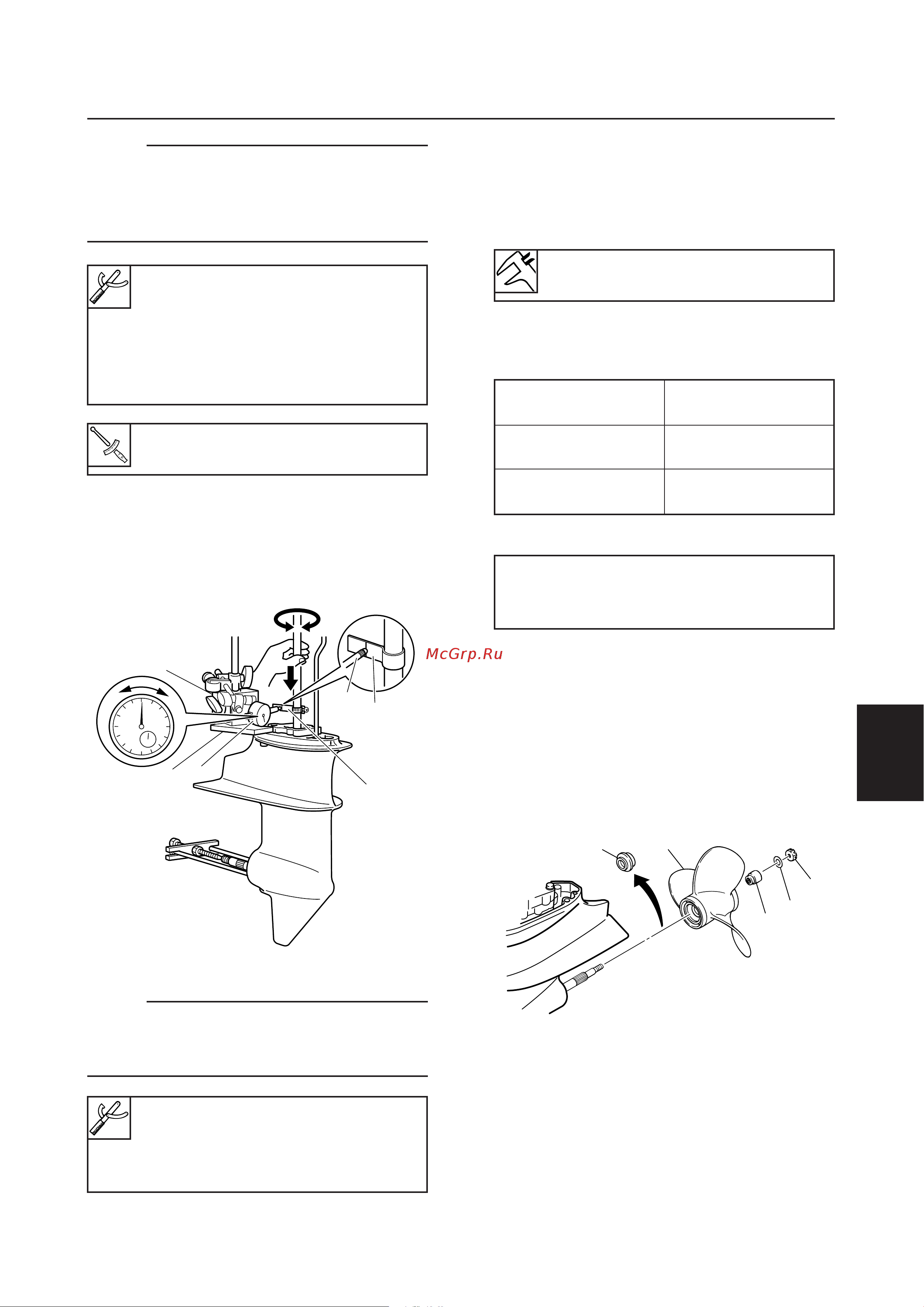

4. Install the backlash indicator onto the
drive shaft (16.0 mm [0.63 in] in diame-
ter), then the dial gauge onto the lower
unit as shown.
NOTE:
Install the dial gauge so that the plunger a
contacts the mark b on the backlash indica-
tor.
Bearing housing puller claw S 1:
90890-06564
Stopper guide plate 2:
90890-06501
Center bolt 3:
90890-06504
5. While pushing the drive shaft slightly, turn
the drive shaft slowly clockwise and
counterclockwise, then measure the
backlash when the drive shaft stops in
each direction.
6. Add or remove shim(s) if out of specifica-
tion.
M: Measurement
7. Remove the special service tools from
the propeller shaft and drive shaft.
8. Apply a load to the reverse gear by
installing the propeller 8 without the
spacer 9 , then install the collar 0,
washer q and propeller nut w as shown.
Center bolt 3:
5 N·m (0.5 kgf·m, 3.7 ft·lb)
69R60325
5
6
7
a
b
4
Backlash indicator 4: 90890-06706
Magnet base plate 5: 90890-07003
Dial gauge set 6: 90890-01252
Magnet base B 7: 90890-06844
Forward gear backlash:
0.31–0.72 mm
(
0.0122–0.0283
in)
Forward gear
Shim thickness
backlash
Less than To be decreased by
0.31 mm (0.0122 in) (0.51 – M) × 0.49
More than To be increased by
0.72 mm (0.0283 in) (M – 0.51) × 0.49
Available shim thicknesses:
1.0, 1.1, 1.2, 1.3 and 1.4 mm
8
9
q
w
0
6S660260
Shimming / Backlash
69R3J11_06 06.7.6 11:37 Page 29
