![Yamaha 25 NMHOS [207/245] 8 7 6 5 4 3 2 1](/img/pdf.png)
Yamaha 25 NMHOS [207/245] 8 7 6 5 4 3 2 1
![Yamaha 25 NMHOS [207/245] 8 7 6 5 4 3 2 1](/views2/1821604/page207/bgcf.png)
69R3J11
8-2
9
8
7
6
5
4
3
2
1

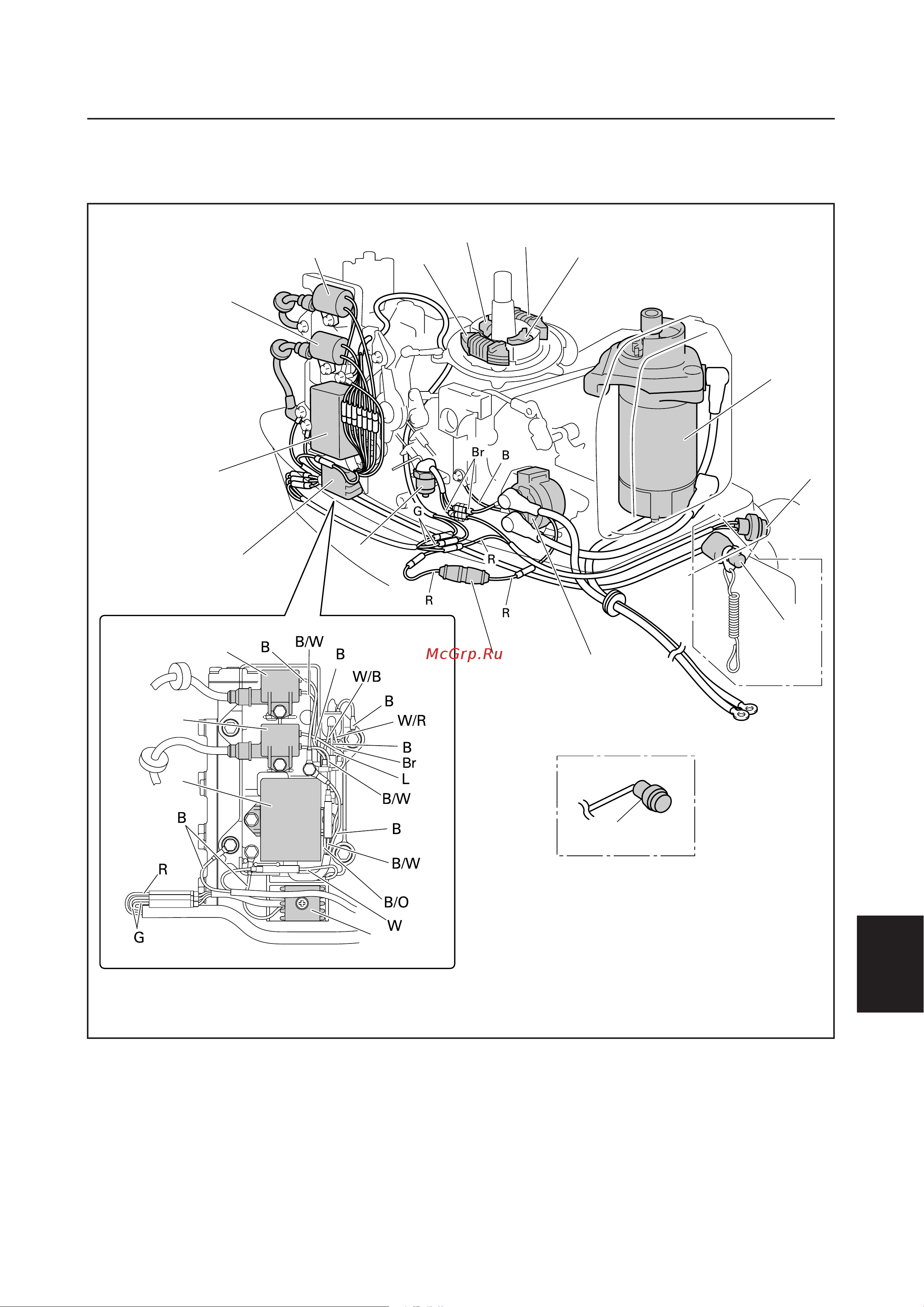

Checking the electrical component / Electrical component
Electrical component
Starboard view
25BWC, 30HWH, 30HWC
1
2
3
4
5
4
7
6
e
w
q
0
8
9
69R80010
å
∫
9
1
2
6
e
1 Ignition coil #1
2 Ignition coil #2
3 Charge coil
4 Pulser coil
5 Lighting coil
6 CDI unit
7 Starter motor
8 Engine start button
9 Engine stop lanyard
switch/
Engine stop switch
0 Starter relay
q Fuse (20A)
w Neutral switch
e Rectifier
B : Black
Br : Brown
G : Green
L : Blue
R : Red
W : White
B/O : Black/orange
B/W : Black/white
W/B : White/black
W/R : White/red
å 30HWH ∫ 25BWC, 30HWC
