Yamaha 25 NMHOS [162/245] Installing the drive shaft

6-17

LOWR

69R3J11

Lower unit

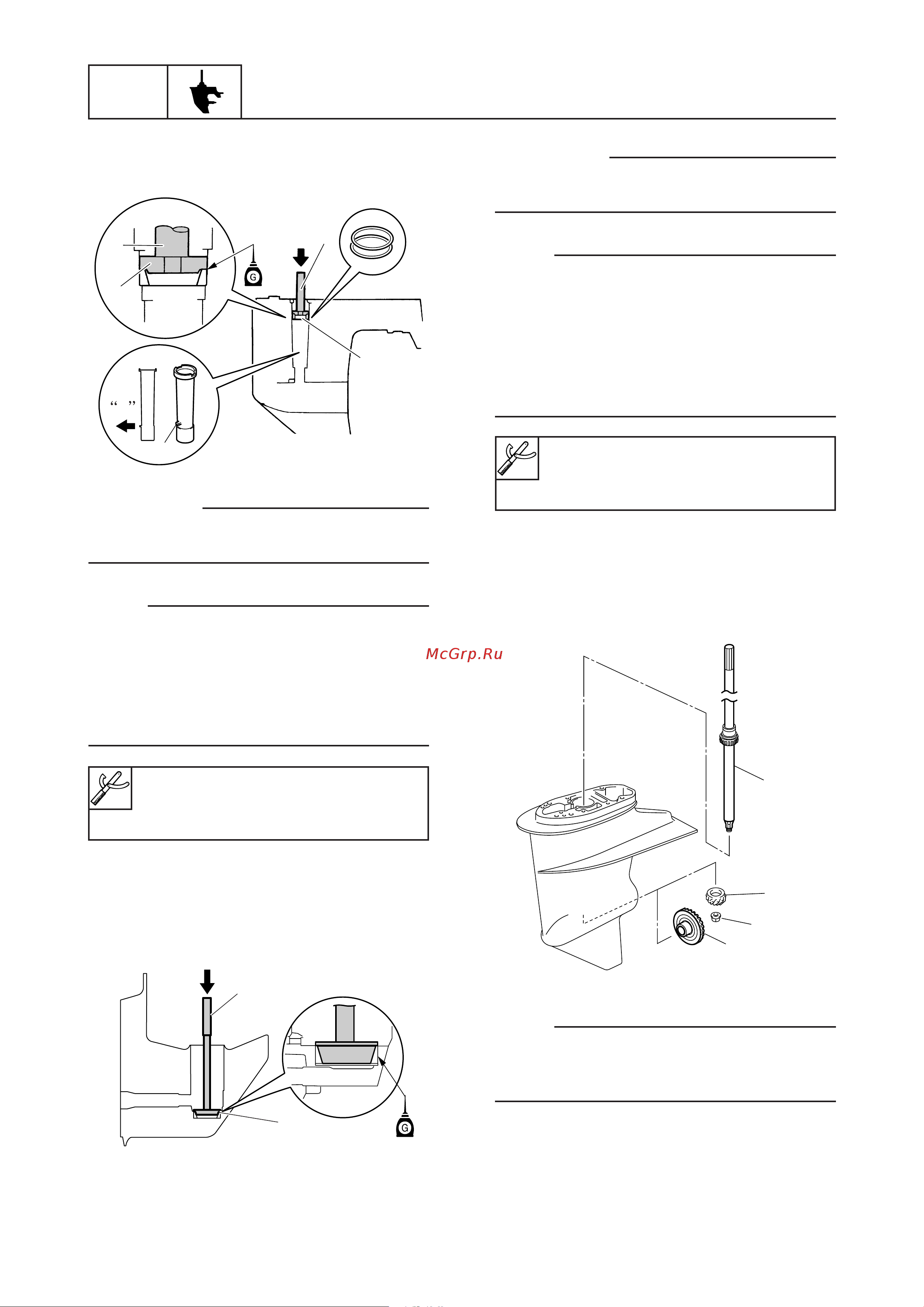

2. Install the sleeve, shim(s) and new taper

roller bearing outer race.

Do not reuse the bearing, always replace it

with a new one.

NOTE:

9 Be sure to select the pinion shim(s) if

replacing the lower case or taper roller

bearing.

9 To select the shim(s), refer to page 6-24.

9 Install the sleeve with the projection d fac-

ing forward.

3. Install the shim(s) and new taper roller

bearing outer race.

Do not reuse the bearing, always replace it

with a new one.

NOTE:

9 Be sure to select the forward gear shim(s) if

replacing the lower case or taper roller

bearing.

9 To select the shim(s), refer to page 6-24.

9 Apply gear oil to the inside and outside of

the taper roller bearing outer race before

installation.

Installing the drive shaft

1. Install the forward gear 1, drive shaft 2,

pinion 3 and pinion nut 4.

NOTE:

Install the drive shaft 2 by lifting it up slight-

ly, and then aligning its splines with the pinion

69R60190

69R60200

Bearing outer race attachment 6:

90890-06625

Driver rod LL 7: 90890-06605

Bearing outer race attachment 4:

90890-06628

Driver rod LS 5: 90890-06606

69R6012C
