Tiller handle
Checking the tiller handle
1. Check the grommet, cable and friction
piece. Replace the grommet, cable and
friction piece if worn or damaged.

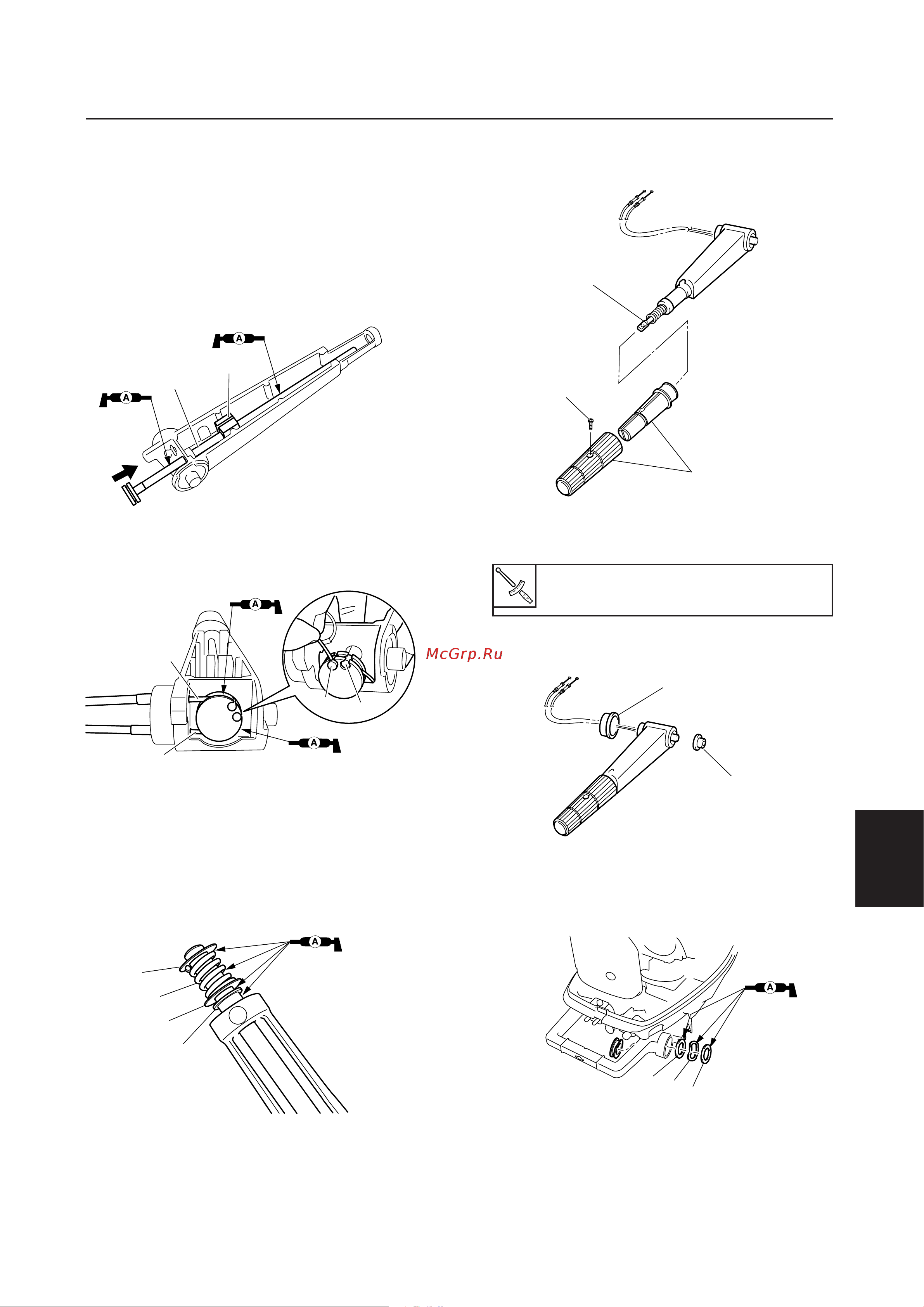

Assembling the tiller handle
1. Install the friction piece 1, and then
install the throttle shaft 2.
2. Install the throttle cable a and b as
shown.
a Accelate
b Decelate
3. Install the bushing 3, washer 4, spring
5 and washer 6.
69R70675
2
1
69R70650
a
b
a
b
69R70646
3
4
5
6
4. Install the throttle grip with rubber gripe
7 to the throttle shaft 2.
5. Install the bushing 9 and bushing 0.
6. Install the washer q, wave washer w
and washer e into the steering bracket.
69R70755
9
0
8
7
2
69R70647
Throttle grip screw 8:
3 N·m (0.3 kgf·m, 2.2 ft·lb)
69R7077A
q
e
w
69R3J11_07 06.7.5 1:21 PM Page 5
