69R3J11
1-6
9
8
7
6
5
4
3
2
1
Identification
Model
This manual covers the following models.
Serial number

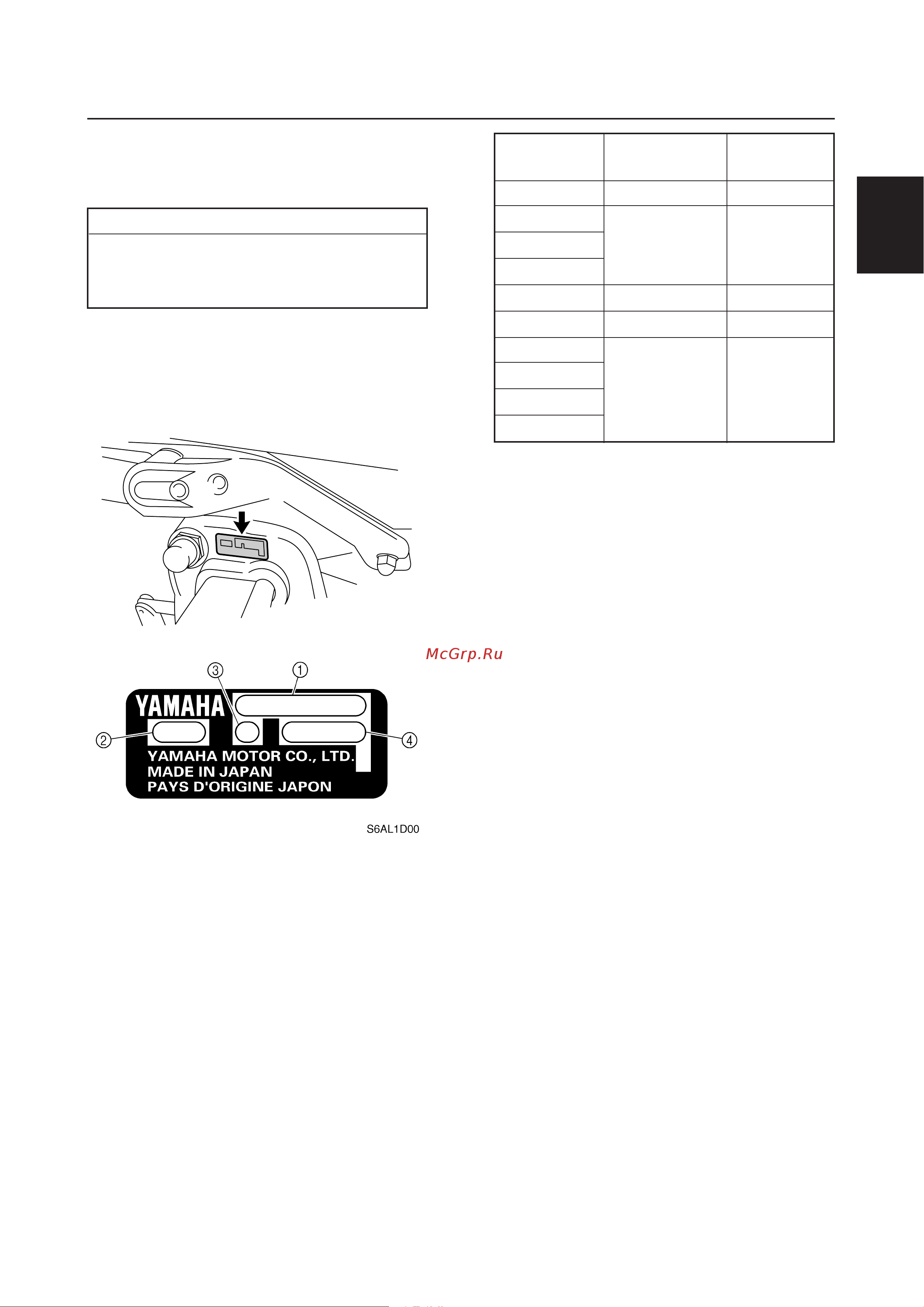

The outboard motor serial number is
stamped on a label attached to the port
clamp bracket.
1 Model name
2 Approved model code
3 Transom height
4 Serial number
6S610010
Applicable model
E25BMH, 25BMH,
25BW, 25BWC, 25XMH
E30HMH, 30HMH, 30HWH, 30HW, 30HWC
Model name
Approved Starting
model code serial No.
E25BMH 69P 1020720
25BMH
25BW 69R 1020790
25BWC
25XMH 69X 1000515
E30HMH 60B 1024447
30HMH
30HWH
69S 1024277
30HW
30HWC
Safety while working / Identification
69R3J11_01 06.7.6 14:31 Page 9
