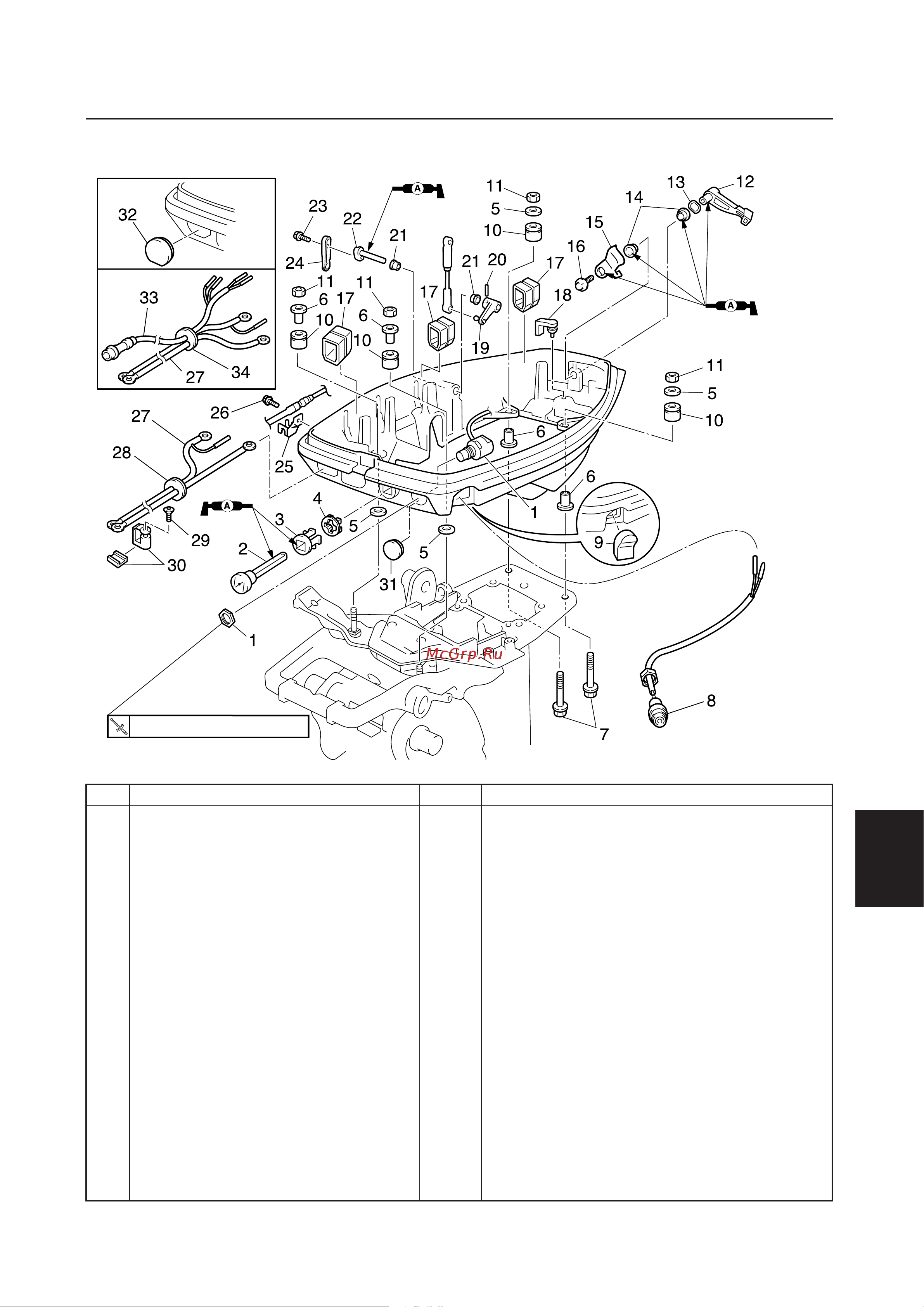

Tiller handle / Bottom cowling
69R7020E
3 N·m (0.3 kgf·m, 2.2 ft·lb)
MH
W
No. Part name Q’ty Remarks
1 Engine stop lanyard switch assembly 1 WH, WC, MH
2 Choke knob 1
3 Grommet 1
4 Gasket 1
5 Washer 4
6 Collar 4
7 Bolt 2 M6 × 55 mm
8 Engine start button 1 WH, WC
9 Grommet 1 W
10 Grommet 4
11 Nut 4
12 Lever 1
13 Wave washer 1
14 Bushing 2
15 Lever 1
16 Bolt 1 M6 × 12 mm
17 Holder 2 MH
3 WH, W, WC
Bottom cowling
