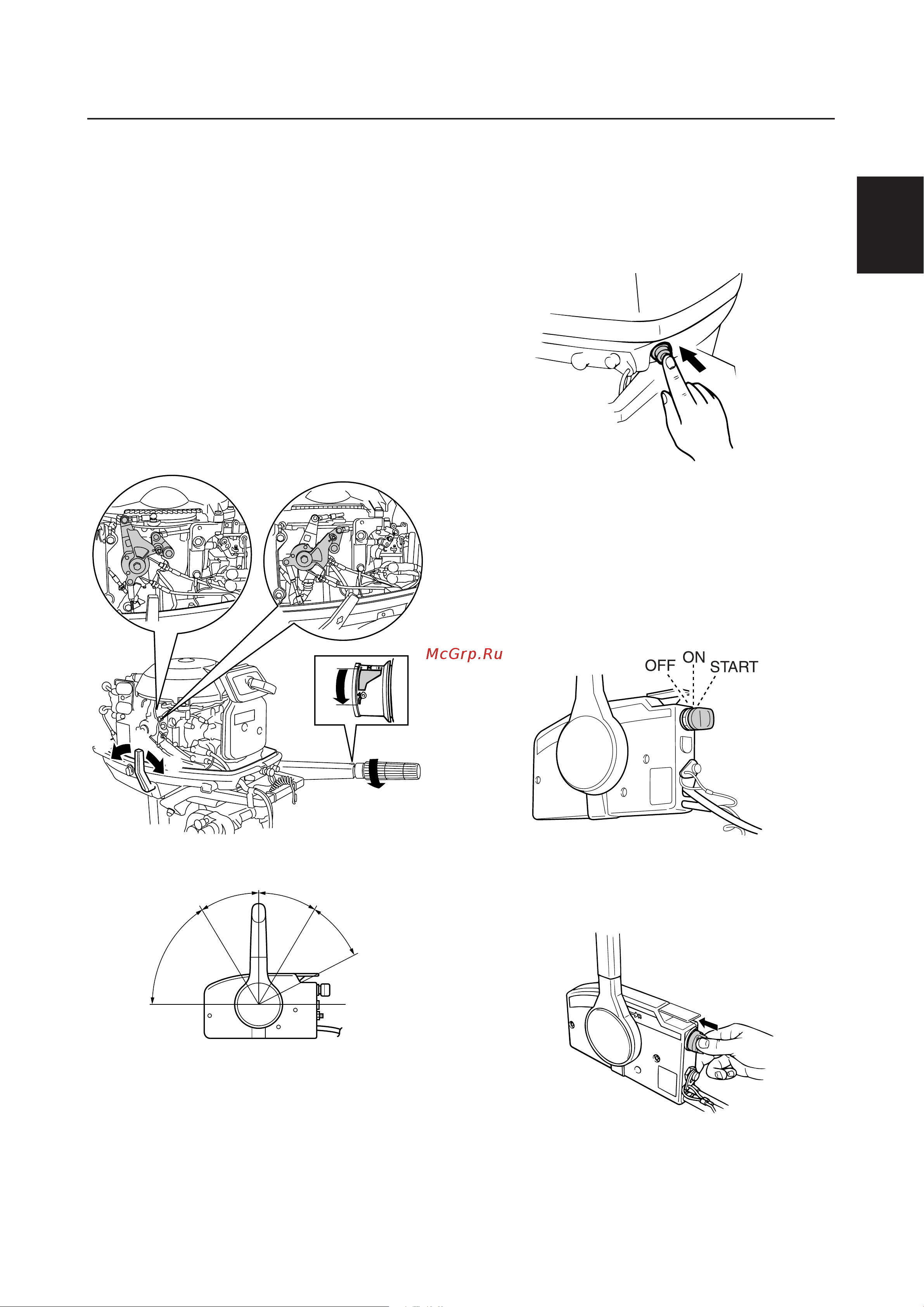

Checking the engine start button,
engine start switch and engine stop
lanyard switch
1. Check that the engine starts when the
engine start button is pushed to START.
(WH, WC)
2. Check that the engine starts when the
engine start switch is turned to START.
(W:703 type remote control box)
3. Check that the engine turns off when the
engine start switch is turned to OFF.
(W:703 type remote control box)
4. Check that the choke solenoid operates
when the engine start switch is pushed
in. (W:703 type remote control box)
69R10080
69R10200
6S310110
Checking the gear shift and throttle
operation
1. Check that the gear shift operates
smoothly when the shift lever or remote
control lever is shifted from “N” to “F” or
“R” position.
2. Check that the throttle operates smoothly
when the throttle grip (tiller handle model)
is turned from the fully-closed position to
the fully-opened position a.
Check that the throttle operates smoothly
when the remote control lever (remote
control model) is shifted from “F” or “R”
position to the fully-opened positions b.
69R10060
a
N
R
F
6F610120
F
N
R
b
b
Predelivery check
