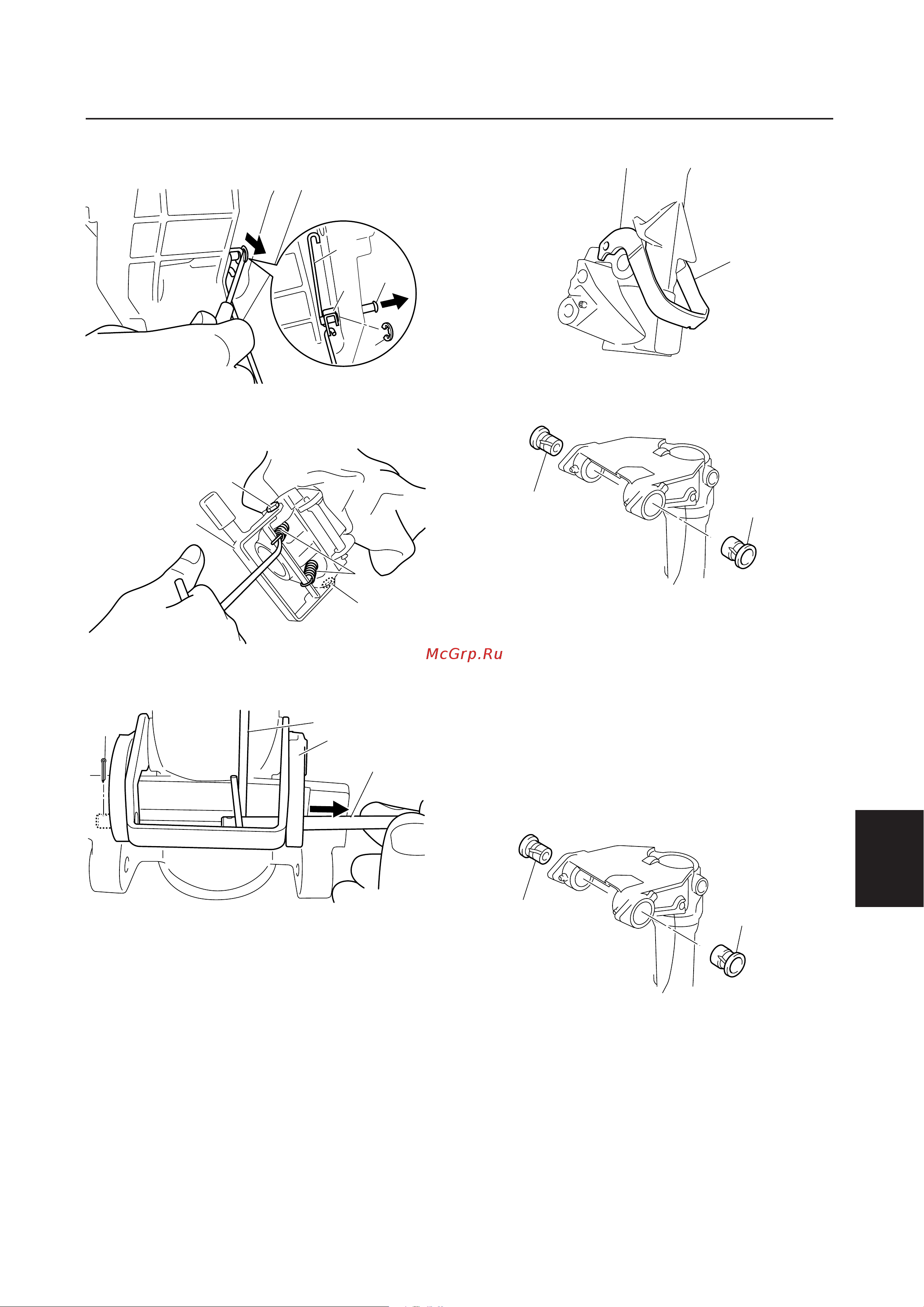

11. Remove tilt lock arm 1 l.
12. Remove the bushings ;.
Checking the bracket
1. Checking the bracket. Replace the brack-
et if cracked or corroded. Replace the
spring, arm and stopper if damaged or
corroded.
Assembling the swivel bracket
1. Install the bushings 1.
69R3J11
7-26
9
8
7
6
5
4
3
2
1
Clamp bracket, swivel bracket
8. Remove the circlip i, then pull out the
pin o, lever p and rod a.
9. Remove the springs s, and then remove
the bolts d, sallow water lever f.
10. Remove the cotter pin g, pin h, rod j
and tilt lock arm 2 k.
69R70500
i
o
a
p
69R70510
d
s
d
f
69R70520
l
69R70525
g
k
j
h
69R71240
;
;
69R71250
1
1
